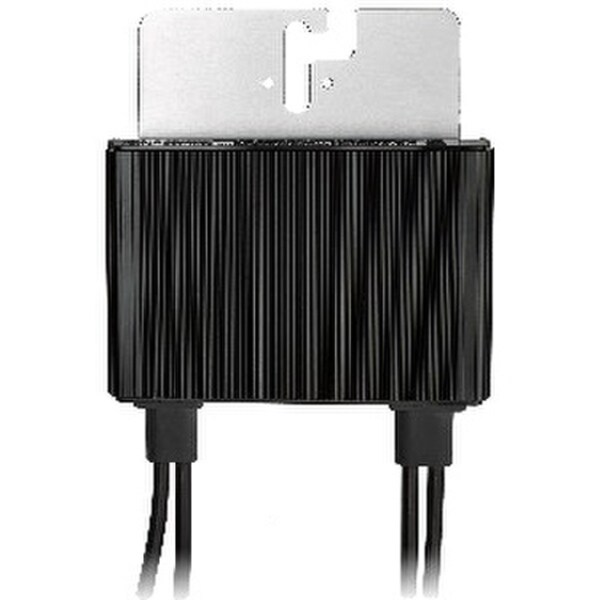

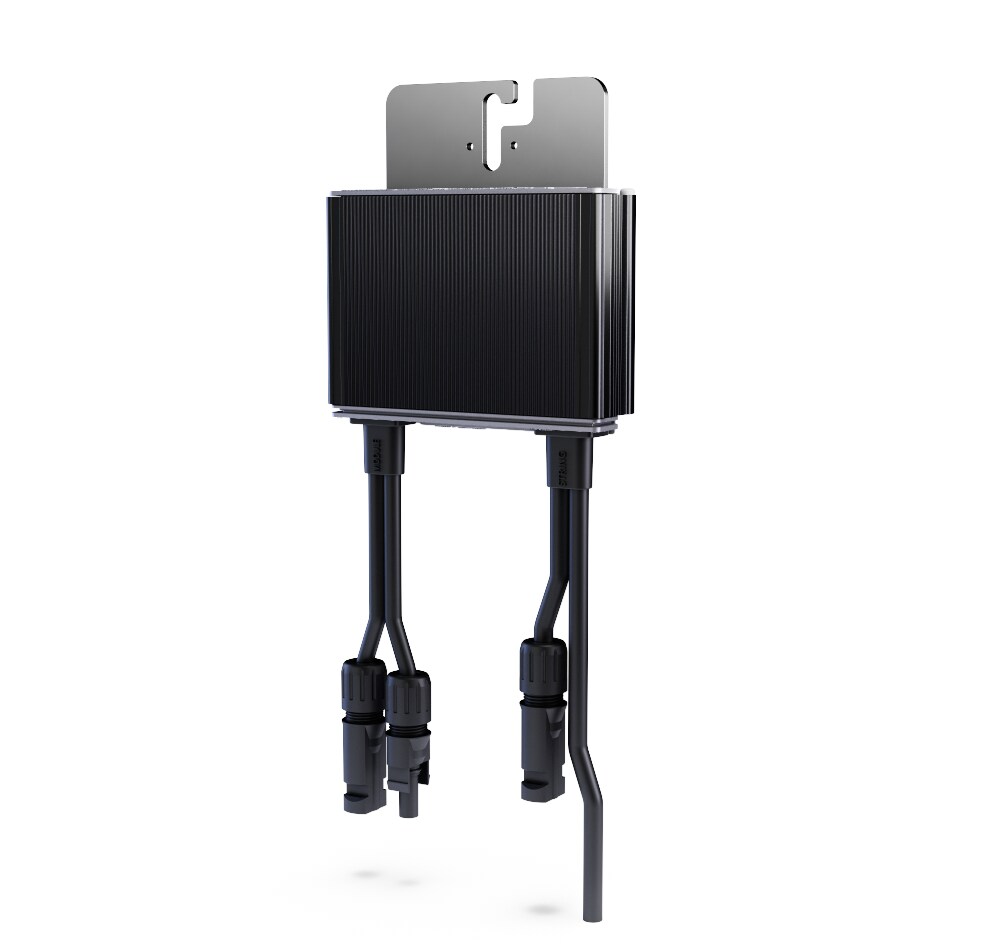

SolarEdge 500 W Power Optimizer
Maximize the amount of energy each solar module produces and mitigate all types of module mismatch-loss, from manufacturing tolerance to partial shading and aging.
Feature Bullets
- Enabling PV power optimization at the module level
- Specifically designed to work with SolarEdge residential inverters

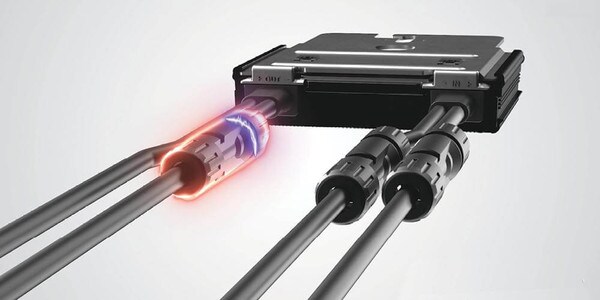

- Detects abnormal PV connector behavior, preventing potential safety issues
- Module-level voltage shutdown for installer and firefighter safety
- Superior efficiency (99.5%)
- Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading

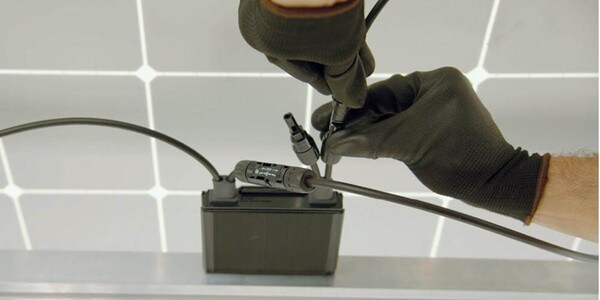

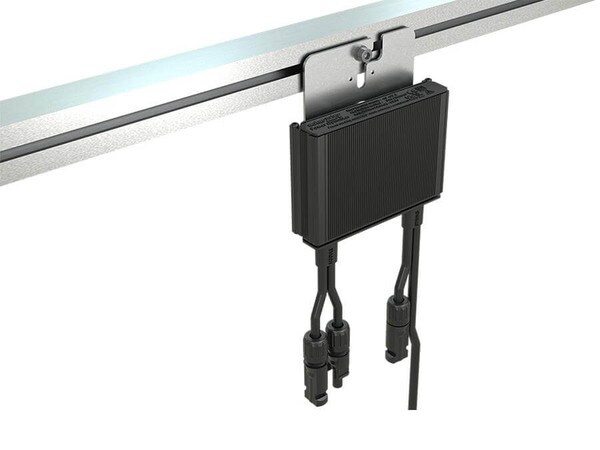

- Faster installations with simplified cable management and easy assembly using a single bolt
- Flexible system design for maximum space utilization
- Compatible with bifacial PV modules
Specifications:
Rated Input DC Power: 500 W
Absolute Maximum Input Voltage: 60 VDC
MPPT Operating Range: 8-60 VDC
Maximum Short-Circuit Current (ISC): 14.5 ADC
Maximum Efficiency: 99.5%
Weighted Efficiency: 98.8%
Over Voltage Category: Category II
Maximum Output Current: 15 ADC
Maximum Output Voltage: 60 VDC
Safety Output Voltage Per Power Optimizer: 1 +/-0.1 VDC
Standards: EMC - FCC Part 15 cETLus Listed B, IEC61000-6-2, IEC61000-6-3, CISPR11, EN-55011, Safety IEC62109-1 (cETLus Listed II Safety), RoHS Complaint, VDE-AR-E 2100-712:2018-12
Maximum Allowed System Voltage: 1000 VDC
Input Connector: (5) MC4
Input Wire Length: 0.1 m
Output Connector: MC4
Output Wire Length: 2.3 m
Temperature Rating: -40 to 85 deg C/-40 to 185 deg F
Enclosure Rating: IP68
Relative Humidity: 0-100%
Warranty: 25 Years
Weight: 1.6 lb
