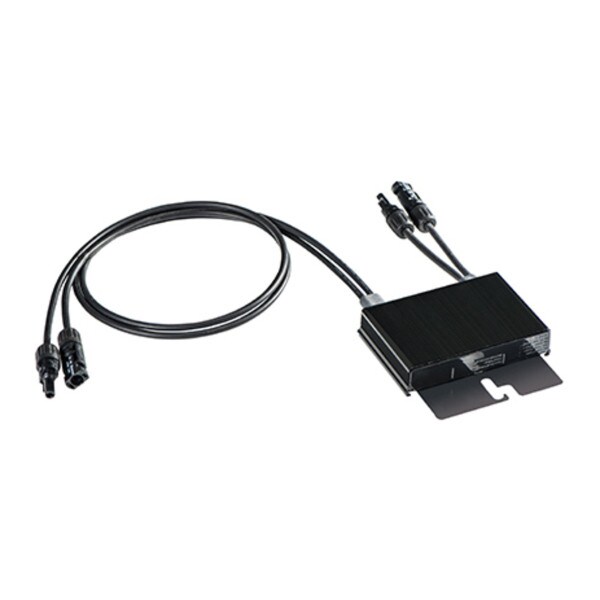

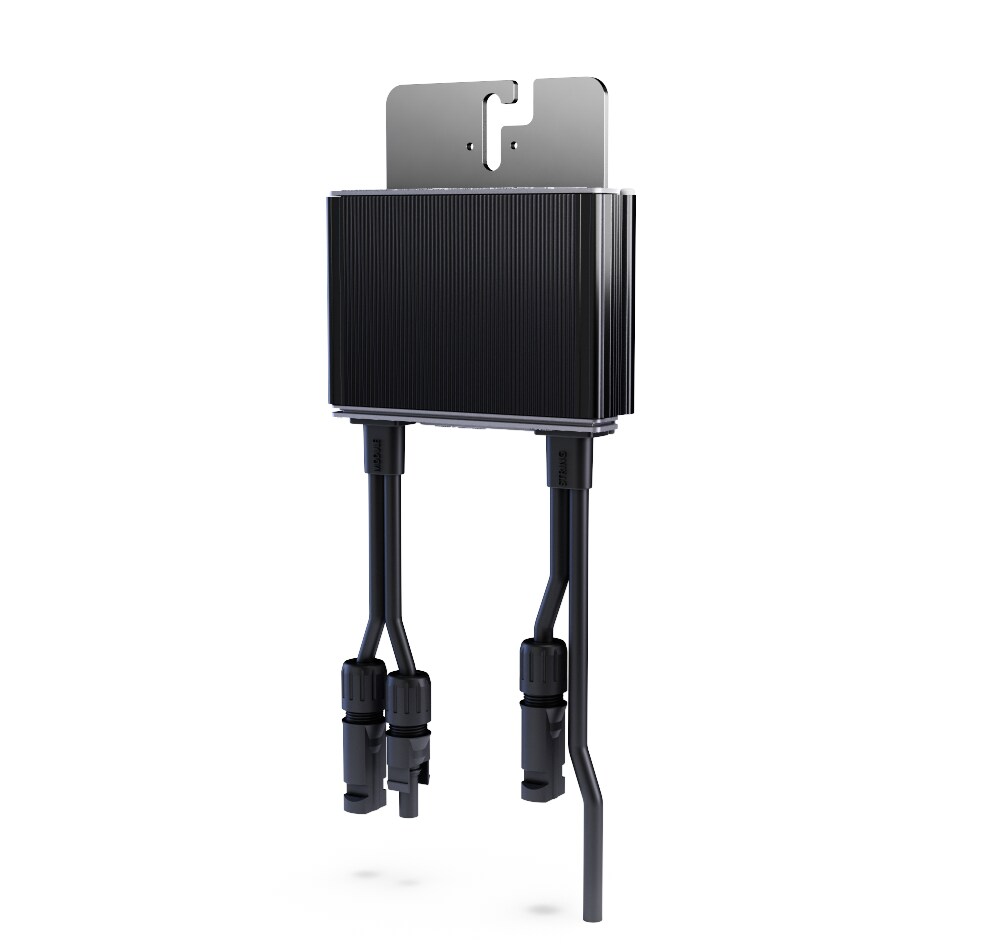

SolarEdge 340 W Power Optimizer

Maximize the amount of energy each solar module produces and mitigate all types of module mismatch-loss, from manufacturing tolerance to partial shading and aging.

Feature Bullets

• PV power optimization at the module level
• Specifically designed to work with SolarEdge inverters
• Up to 25% more energy
• Next generation maintenance with module-level monitoring
• Mitigates all types of modules mismatch-loss, from manufacturing tolerance to partial shading
• Superior efficiency (99.5%)
• Flexible system design for maximum space utilization
• Module-level voltage shutdown for installer and firefighter safety

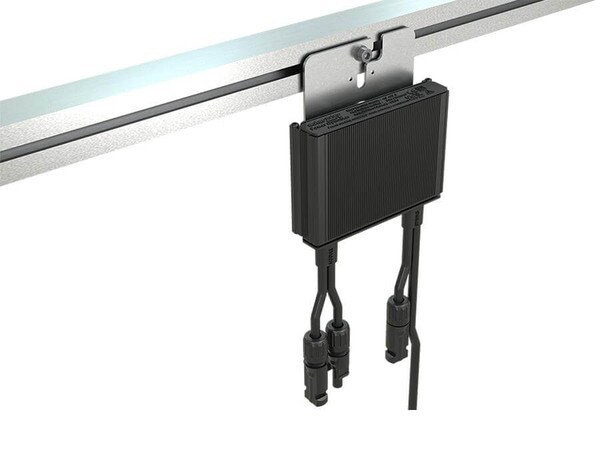

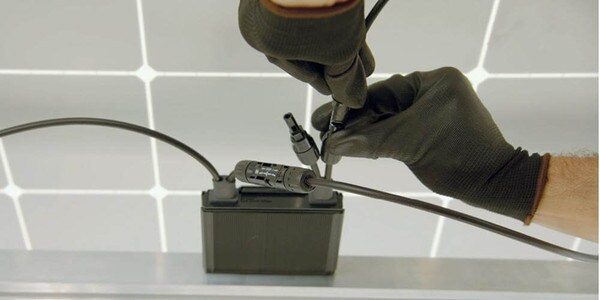

• Fast installation with a single bolt

Specifications:

Rated Input DC Power: 340 W
Absolute Maximum Input Voltage: 48 VDC
MPPT Operating Range: 8-48 VDC
Maximum Short-Circuit Current (ISC): 11 ADC
Maximum Efficiency: 99.5%
Weighted Efficiency: 98.8%
Over Voltage Category: Category II
Maximum Output Current: 15 ADC
Maximum Output Voltage: 60 VDC
Safety Output Voltage Per Power Optimizer: 1 +/-0.1 VDC
Standards: EMC - FCC Part 15 cETLus Listed B, IEC61000-6-2, IEC61000-6-3, Safety IEC62109-1 (cETLus Listed II Safety), UL 174, RoHS Complaint, VDE-AR-E 2100-712:2018-12
Maximum Allowed System Voltage: 1000 VDC
Input Connector: (2) MC4
Input Wire Length: 0.52 ft
Output Wire Type: Double Insulated
Output Connector: MC4
Output Wire Length: 3 ft
Temperature Rating: -40 to 85 deg C/-40 to 185 deg F
Enclosure Rating: IP68/NEMA 6P
Relative Humidity: 0-100%
Warranty: 25 Years
Weight: 1.7 lb
