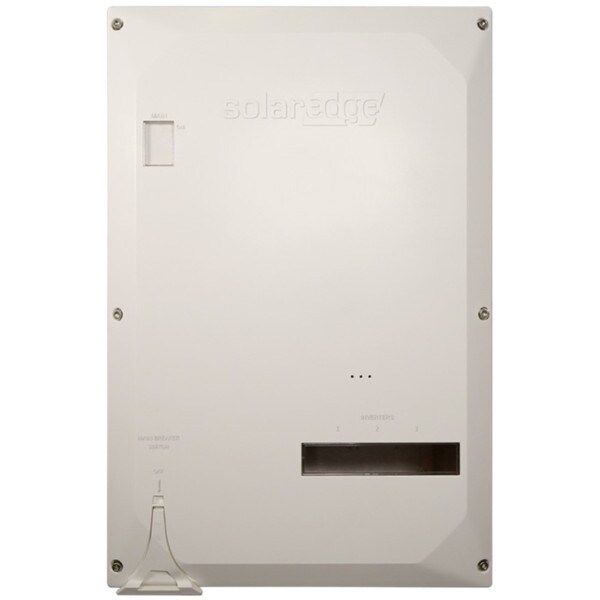

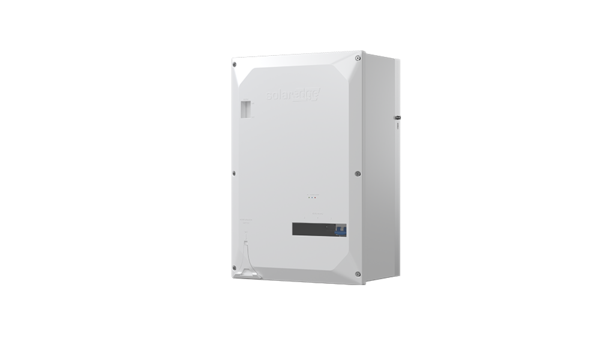

SolarEdge 200 A Energy Hub Home Backup Interface

The SolarEdge Home Backup Interface connects to the SolarEdge Home Hub inverter and SolarEdge Home battery, automatically controlling disconnection of house loads from the grid during power failures to provide backup power to full or partial home loads. It enables homeowners full flexibility when deciding which household loads to backup. Installers benefit from faster installations due to the reduced need for main breaker de-rates and MPUs, as well as the pre-fitted SolarEdge Energy Meter (for self-consumption management) and auto-transformer (for split phase balancing). A 12-year warranty is included, which also extends to the Inline Meter and auto-transformer components.

Feature Bullets

• The SolarEdge Home Backup Interface enables full or partial home backup when the grid is down
• Automatically provides backup power to home loads in the event of grid interruption
• Full flexibility in which loads to back up - the entire home or selected loads
• Scalable solution to support higher power and higher capacity
• Built-in Auto Transformer and Energy Meter for easier and faster installation
• Seamless integration with the SolarEdge Home Hub Inverter to manage and monitor both PV generation and energy storage
• Generator connection support

Specifications:

Type: Energy Hub
Nominal Voltage Rating: 240 VAC
Voltage Range: 211-264 VAC
Current Rating: 200 A
Nominal Frequency Rating: 60 Hz
Frequency Range: 59.3-60.5 Hz
Microgrid Interconnection Device Rated Current: 200 A
Maximum Inverters AC Current Output in Backup Operation: 144 A
Grid Disconnection Switchover Time: <100 ms
Imbalance Compensation in Backup Operation: 5000 W
Output Voltage in Backup: 120 V
Output Voltage Range in Backup: 105-132 V
Frequency Range in Backup: 55-65 Hz
Number of Inverters: 3 Inputs
Maximum Rated AC Power in On-Grid and Backup Operation: 11400 W
Maximum Continuous Current in On-Grid and Backup Operation: 48 A
Factory Installed Inverter Input AC Circuit Breaker: 40 A
Upgradability: Up to 3 x 63A CB
Maximum Rated AC Power: 22500 W
Maximum Continuous Input Current: 94 A
Dry Contact Switch Voltage Rating: 250 VAC/30 VDC
Dry Contact Switch Current Rating: 5 A
2-Wire Start Switch: Yes
Installation Type: For Main Lug Only
Number of Communications: 2 Inputs
Communication: RS485
Energy Meter For Import/Export: 1% Accuracy
Manual Control Over Microgrid Interconnection Device: Yes
Standards: Safety - UL1741, CSA 22.2 NO. 107, Emissions - FCC part 15 cETLus Listed B, , CE Certified, RoHS Certified
Supported Inverters: StorEdge Single Phase Inverter, SolarEdge Home Hub Inverter
Conduit Size/AWG Range: 2 in Conduit and 2-4/0 AWG AC from Grid and AC to Loads, 1 in Conduit and 14-4 AWG AC Inverter, 1 in Conduit and 8-3 AWG AC Generator Input, 3/4 in Conduit and 24-10 AWG Communication
Cooling: Fan
Noise Reduction Rating: <50 dBA
Enclosure Rating: NEMA 3R, IP44
Operating Temperature: -40 to 122 deg F, -40 to 50 deg F
Warranty: 12 Years
Weight: 73 lb
