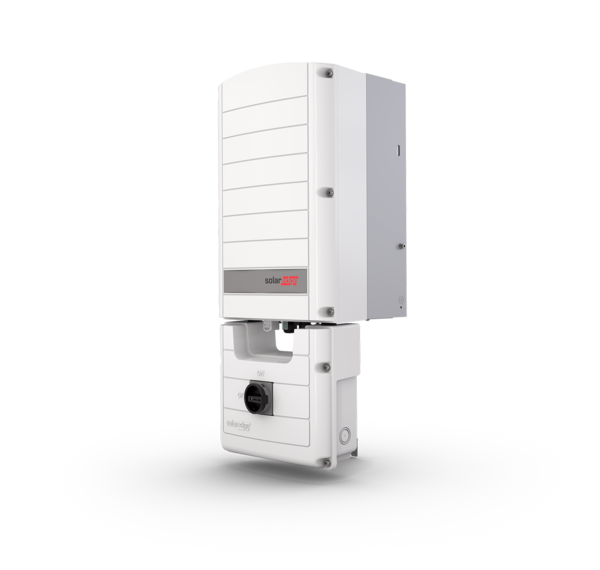

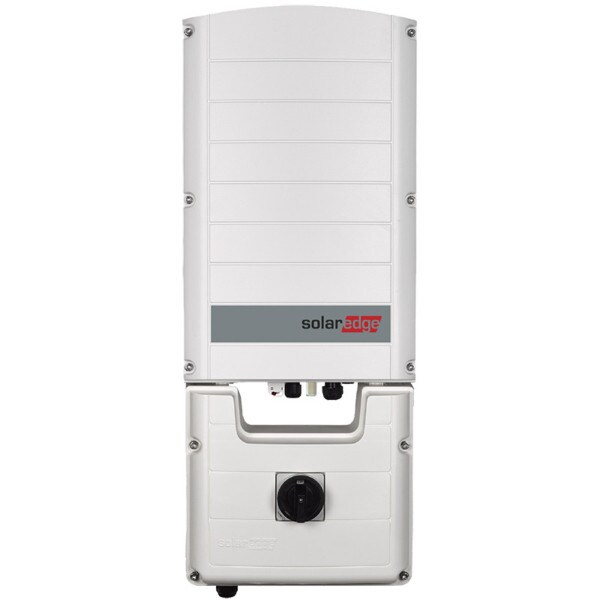

SolarEdge 17300 W Three Phase Inverter

Maximize energy production, safety, and achieve significant savings in Balance of System (BoS) and Operations and Maintenance (O&M) costs with our range of innovative and lightweight three phase inverters. Our three phase ground mount, rooftop, carport inverters are ideal for driving more power and more safety into broad range of commercial projects: Deliver up to 10% more energy by pairing with our Power Optimizers, Reduce BoS costs by 50% with longer strings and flexible design, Maximize system uptime: pinpoint issues with module-level monitoring, Instill confidence with advanced safety, such as arc fault protection and rapid shutdown, There's a reason why 50% of Fortune 100 companies have SolarEdge on their roofs. Ensuring peace of mind is no problem with our built-in advanced SafeDC™ features, including: Fully integrated rapid shutdown, Arc-fault detection & prevention, Surge protection. Get more done in less time - and minimize Operations & Maintenance (O&M)costs - with innovative, flexible design: Reduce time, cost and labor with a simple 2-person installation through lightweight, modular design. Synergy Manager unit provides easy access for DC disconnect during maintenance. Higher system uptime with independently working Synergy Unit. Supports 3-wire connection and accommodates no-neutral or delta configurations.

Feature Bullets

• Up to 175% oversizing
• Only 70.5 lbs. means a simpler install
• Industry-Leading, extendable 12-year warranty, extendable to 25 years
• Fully integrated rapid shutdown
• Arc-fault detection & prevention
• Surge protection
• Specifically designed to work with power optimizers
• Quick and easy inverter commissioning directly from a smartphone using SolarEdge SetApp
• Fixed voltage inverter for superior efficiency and longer strings
• Built-in type 2 DC and AC Surge Protection, to better withstand lightning events
• Small, lightest in its class, and easy to install outdoors or indoors on provided bracket
• Integrated arc fault protection and rapid shutdown for NEC 2014, 2017, and 2020, per article 690.11 and 690.12
• Built-in module-level monitoring with Ethernet, wireless or cellular communication for full system visibility
• Integrated Safety Switch
• UL1741 SA and SB certified, for CPUC Rule 21 grid compliance
• Three phase inverters for the 120/208V grid

Specifications:

Width: 12.5 in
Height: 31.8 in
Depth: 11.8 in
Maximum Input Voltage: 370-600 VDC
Transformer-Less, Ungrounded: Yes, Input
Reverse-Polarity Protection: Yes, Input
Ground Fault Isolation Detection: 167 kOhm Sensitivity (Input)
CEC Weighted Efficiency: 97.5% Input
Rated AC Output Power: 17300 W
Maximum AC Power Output: 17300 W
AC Frequency Range (Min-Nom-Max): 59.3-60-60.5 Hz (Output)
GFDI Threshold: 1 Output
Total Harmonic Distortion (THD): Power Factor: +/-0.85 to 1 (Output)
Utility Monitoring, Islanding Protection, Country Configurable Thresholds: Yes, Output
Typical Nighttime Power Consumption: <4 W Input
AC L-L Output Voltage Range/AC L-L Output Voltage Range (Min-Nom-Max): 183-208-229 VAC
AC L-N Output Voltage Range/AC L-N Output Voltage Range (Min-Nom-Max): 105-120-132.5 VAC
Maximum DC Power (Module STC): 30275 W Input
Continuous Output Current (Per Phase): 48.25 A AC Output
Supported Communication Interfaces: 2 x RS485, Ethernet
Inverter Commissioning: With the SetApp Mobile Application using built-in Wi-Fi Access Point for Local Connection
Rapid Shutdown - NEC 2014-2023 per articles 690.11 and 690.12: Yes
AC Output Conduit Size/AWG Range: 3/4 in/1 in/6-10 AWG
DC Input Conduit Size/AWG Range: 3/4 in or 1 in/6-12 AWG
Phase: 3
Noise Rating: <62 dBA
Cooling: Fans (User Replaceable)
AC Output Line Connections: 3W + PE, 4W + PE
RS485 Surge Protection Plug-in: Built-In
AC/DC Surge Protection: Built-In
DC Fuses (Single Pole): 25 A, Built-In
Smart Energy Management: Export Limitation
DC Disconnect: Integrated
Number of DC Inputs Pairs: 4
Mounting Type: Bracket
Operating Temperature: -40 to 140 deg F
Protection Rating: NEMA 3R
Standards: UL1741, UL1741 SA, UL1741 SB, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07, IEEE1547-2018, Rule 21, Rule 14 (HI), FCC part15 class A, CSAcUS
Warranty: 12-20 Years
Weight: 78.2 lb
Application: 120/280V Grid, For North America
