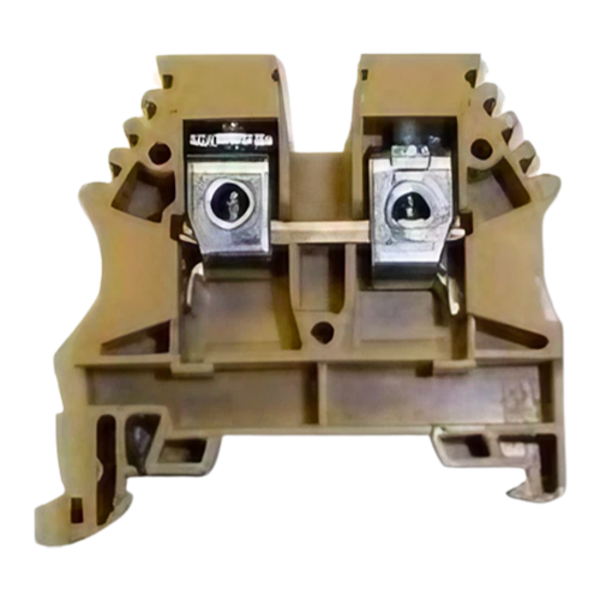

SolaDeck 1451 DIN Mount Terminal Block

Feature Bullets

• Rated to 600 V 65 A. Wire #16 - 6 AWG, 10 mm wide (for combining)
• Use one block per string negative PV (use 0785BB bus to combine blocks)
• Easy installation and high compatibility
• Power Panel Component

Specifications:

Voltage Rating: 600 VDC
Current Rating: 65 A
Primary Wire Size Range: 16-6 AWG
Mounting Type: DIN Rail
Dimensions: 10 mm Width
Standards: UL Listed
