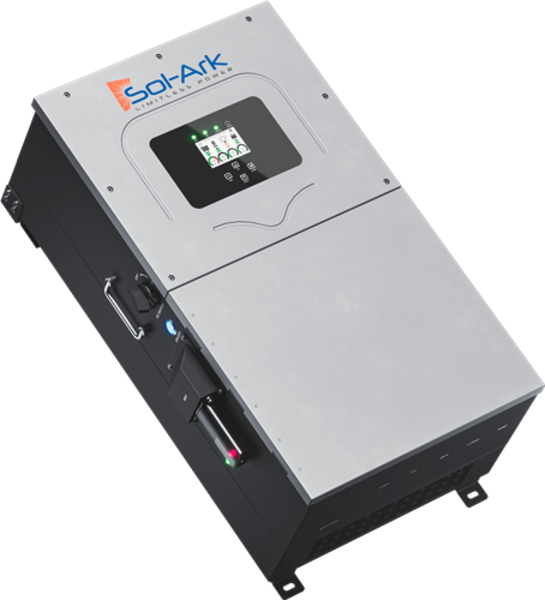

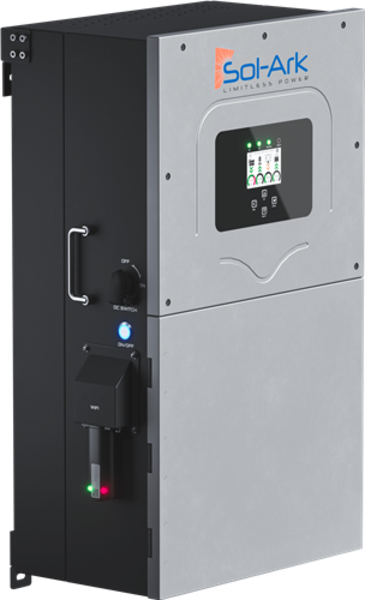

Sol-Ark 15K Hybrid Inverter

The Sol-Ark 15K is a next-generation hybrid inverter designed to deliver unmatched performance and versatility for residential, commercial, and military-grade solar installations. With 15,000W of continuous power and the ability to handle up to 19.5kW of PV input, it provides robust support for on-grid, off-grid, or backup operations ensuring energy security in every scenario.

Built-in arc fault protection, rapid shutdown compliance, and high surge capability (up to 24,000W for 10 seconds) make the Sol-Ark 15K both safe and powerful. It's compatible with both 48V battery banks and grid-tied systems, and supports multiple battery chemistries (LiFePO4, LFP, AGM, FLA, etc.).

The system also allows for stacking up to 12 units in parallel (single- or three-phase), offering flexible system expansion for larger homes or small commercial buildings.

Key Features:

• High Power Output: 15kW continuous / 24kW surge
• Flexible Operating Modes: Off-grid, grid-tied, or hybrid with battery backup
• Multiple MPPTs: Dual inputs for optimized solar production
• Battery Agnostic: Compatible with many 48V batteries, including EG4, SimpliPhi, Fortress, and more
• Integrated Monitoring: Remote access and control via Sol-Ark’s web portal and mobile app
• Easy Installation: All-in-one solution with internal breakers, disconnects, and auto-generator start
• Secure & Reliable: EMP-hardened and MIL-STD tested for extreme conditions
• Time-of-Use Optimization: Maximize savings with programmable load shifting



Specifications:

• AC Output Power: 15,000W continuous
• Surge Capability: 24,000W for 10 seconds
• PV Input Power: 19,500W
• MPPT Voltage Range: 150–500VDC
• Battery Voltage: 48V nominal
• Phase Support: Split-phase 120/240V standard; three-phase capable
• Parallel Operation: Up to 12 units (180kW combined)
• Weight: 80 lbs (36.3 kg)
• Dimensions: 28 x 21 x 8 in.
• Warranty: 10 years



Ideal for demanding installations where power reliability, solar optimization, and battery integration are essential.
