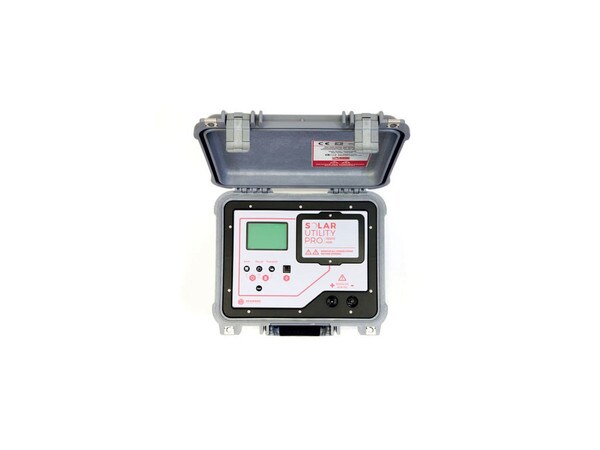

Seaward Solar Utility Pro - 1500V, 40A PV String Checker

The Seaward Solar Utility Pro Complete Kit is a PV measurement set capable of testing parallel wired strings up to 1500V/ 40A. This makes the Seaward Solar Utility Pro Complete Kit suitable for testing powerful PV installations and eliminates the need to separate strings to keep within the lower limits of other instruments, thereby saving time.Pressing the Test button provides values for Open Circuit Voltage and Short Circuit Current. Additionally, when used with a Seaward Solar Survey 200R Irradiance Meter, the Seaward Solar Utility Pro Unit can determine irradiance, module, and ambient temperature readings.To make testing easy, the Seaward Solar Utility Pro Complete Kit includes 1.2m conversion leads. These leads can be used to convert standard MC4 leads into alligator clips, which is particularly useful when testing combiner boxes and junction boxes.Measurements are clearly indicated on the large display designed to be easy-to-read in direct sunlight. Results are also recorded to the Seaward Solar Utility Pro Unit's internal memory, which has the capacity to store up to 999 complete data sets. Readings can be downloaded to a PC as a CSV file.Other practical features include a portable design and rugged casing which allow the Seaward Solar Utility Pro Complete Set to be transported around large utility sites easily.

Feature Bullets

• A PV measurement set capable of testing parallel wired strings up to 1500 V/40 A
• Suitable for testing powerful PV installations
• Eliminates the need to separate strings, saving time
• Test button provides open circuit voltage and short circuit current measurements
• Use the seward solar survey ss200r irradiance meter with the utility pro unit to determine irradiance, module, and temperature readings
• 1.2 m conversion leads change standard MC4 leads into alligator clips
• Test combiner boxes and junction boxes

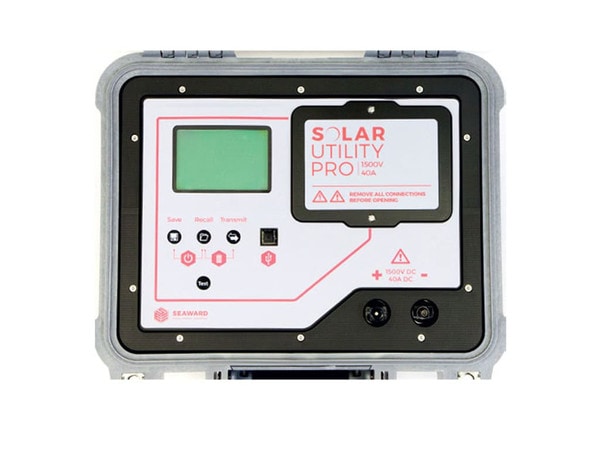

• Large display that is easy to read in direct sunlight
• Built-in memory
• Capacity to hold 999 complete data sets

Specifications:

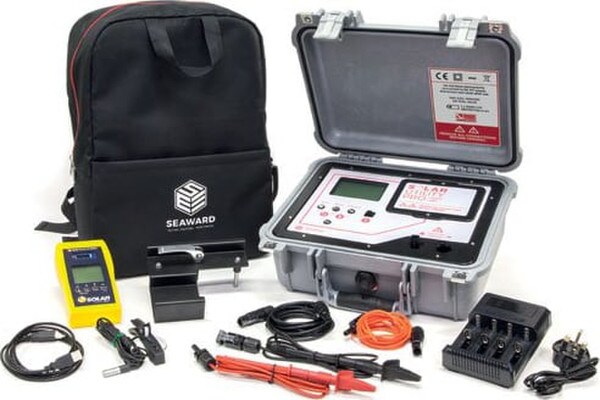

Includes: Seaward Solar Utility Pro Unit, 2 x 1.2m MC4 Leads with Test Probe & Alligator Clip (Red & Black), 2 x 2m MC4 Extension Leads (Red & Black), Seaward Solar Survey SS200R Irradiance Meter, Seaward Solar Survey SS200R Irradiance Meter Clamp, PV Hold-All Bag, 3x 18650 Protected Lithium-ion Batteries, Battery Charger
Display Range: 0-1500 Vdc Open Circuit, 0-40 Adc short Circuit
Measuring Range: 5-1500 Vdc Open Circuit, 0.5-40 ADC Short Circuit
Resolution: 0.1 Vdc
Power Rating: 45 kW
Dimensions: 300 mm Width x 340 mm Length x 152 mm Height
Power Source: 3000 mAh Lithium-Ion
Display Type: LCD
Operating Temperature: 0-40 deg C
