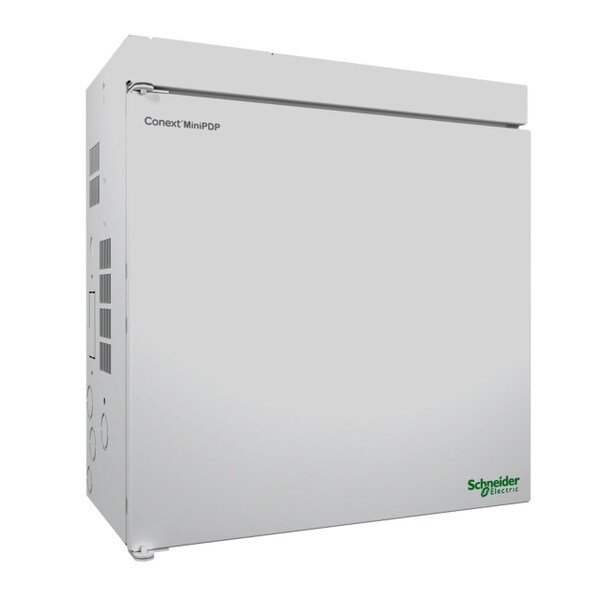

Schneider Electric Conext™ XW+/RNW DIN Rail (35 mm) Mini Power Distribution Panel

The XW power distribution panels (XW PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple XW series inverter/chargers and Context MPPT Solar Charge Controllers with a single battery bank. The XW PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW series inverter/charger. With space to add wiring and breakers, a single XW PDP and Mini PDP supports one XW series inverter/charger, a diesel generator and either an MPPT 100 600, MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW PDP and Mini PDP support single-phase, split-phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger. XW power distribution panels help you save significant time and money during installation when compared to custom solutions. A mounting bracket and XW conduit box are also supplied with each XW PDP and Mini PDP. Context™ XW+ power distribution panels (XW+ PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Context XW+ inverter/chargers and Context MPPT Solar Charge Controllers with a single battery bank. The XW+ PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW+ inverter/charger. With space to add wiring and breakers, a single XW+ PDP and Mini PDP supports one XW+ inverter/charger, a diesel generator and either a MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW+ PDP and Mini PDP supports single-phase, split phase, or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger. XW+ Power Distribution Panels are designed to save significant time and money during installation, when compared to custom solutions. A mounting bracket and Context XW+ Conduit Box are also supplied with each XW+ PDP and Mini PDP.

Feature Bullets

• Higher Return on Investment - Integrate multiple XW+ inverter chargers and MPPT Solar Charge Controllers with a single battery bank, repeatable standard installation that saves time and money
• Flexible - Single-phase split-phase or three phase systems, configure to the left or right side of the XW+ inverter/chargers, multiple field configurable conduit entry points on the back, bottom, top and sides, DIN Rail mounting for QOU type and Multi-9 AC breaker
• East to Service - Breaker configuration allows XW+ inverter/chargers to be AC bypassed for servicing, field-reversible door panel allows for visual inspection
• AC Distribution: Included breakers - Three 60A, 120/240VAC, two-pole, Square D QOU260 AC breakers for AC input, bypass and AC load (factory-installed), Mounting - DIN rail (35 mm), Breaker expansion positions - One additional expansion position for a 2 pole Square D QOU breaker, AC wiring - Factory installed and labeled Arctic Ultraflex BlueTM wiring, including five #6 AWG Arctic AC cables for AC connections: L1, L2, Neutral
• DC Distribution: Included breakers - One GJ 250A 160VDC, 3/8 in. stud DC breaker installed, Mounting - Panel mounted, Breaker expansion positions - 2 expansion positions for charge controller DC breakers. Can be used for outputs of MPPT 60/80/100, aswell as MPPT 60 input, DC wiring - Integrated DC busbars for easy installation with the XW series inverters
• Includes a main 250A DC breaker for the battery
• Includes AC breakers for AC input, Bypass, and AC Out (load)
• Breaker expansion positions on DC side for solar charge controllers and AC side for generator or AC coupled PV inverter
• AC wiring and DC bus bars for direct connection to the XW inverter
• Split phase, single phase applications
• Mounts below the XW inverter
• Multiple conduit knockouts and a field reversable door
• Compatible with Conext MPPT charge controllers, and includes mounting provisions for MPPT 60 150 charge controllers on the either side
• Saves installation time with a pre-wired solution

Specifications:

Type: Mini
Series/Model: Conext™ XW+/RNW
Size: 24.9 in Door Swing Clearance
Width: 16 in
Height: 18.5 in
Depth: 8.9 in
AC Distribution Included Breakers: Three 60 A, 120/240 VAC, 2 Pole, Square D QOU260 AC Breakers
AC Distribution Mounting Type: DIN Rail (35 mm)
AC Distribution Breaker Expansion Positions: One Additional Expansion Position
AC Distribution Wiring: Factory Installed and Labeled Arctic Ultraflex BlueTM Wiring, Including (5) #6 AWG Arctic AC Cables
DC Distribution Included Breakers: One GJ 250A 160VDC, 3/8 in Stud DC Breaker Installed
DC Distribution Mounting Type: Panel Mounted
DC Distribution Breaker Expansion Positions: 2 Expansion Positions
DC Distribution Wiring: Integrated DC Busbars
Wiring Connections: Termination Lugs for Ground, AC Neutral and DC Bus Bar for Battery Connection
Enclosure Type: Indoor Rated, Field-Reversible Panel Door and Integrated Wall Mounting Bracket
Includes: Field Reversible Panel Door, Wall Mounting Bracket, XW+ Conduit Box, (3) 60 A, 120/240VAC, Two-Pole, Square-D, Type QOU, DIN-Rail Mounted AC Breakers, (1) AC Breaker Expansion Position, (1) GJ 250A, 160VDC, 3/8 in Stud DC Breaker Installed, plus (2) Expansion Positions, (1) Ground Terminal Bus Bar, (1) Neutral Terminal Bus Bar, (1) Negative Terminal Bus Bar, (2) Expansion Positions for Charge Controller DC Breakers
Standards: UL1741, CSA107.1, TUV, ETL, PV Cycle, MCS, IEC, UL
Warranty: 2 Years Limited
Application: One Inverter
