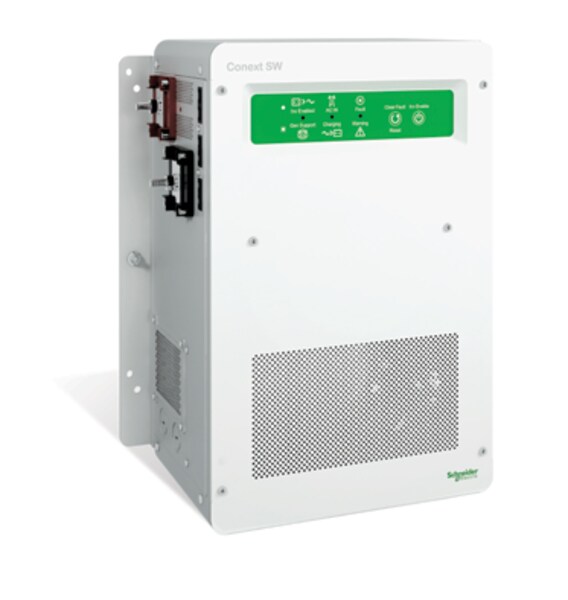

Schneider Electric Conext™ SW 4000 W 45 A Hybrid Inverter/Charger

New value in off-grid solar and backup power. ConextTM SW delivers new value and a new price point to installers and system owners globally. Perfect for off-grid, backup power and self-consumption applications, it is a pure sine wave, inverter/charger system with switchable 50/60 Hz frequencies, providing power for every need. For expanded off-grid capacity, the Conext SW is integrated with fuel-based generators as required to support loads larger than the generator's output. It's also self consumption ready, able to prioritize solar consumption over the grid, while maintaining zero grid export. The Conext SW works with the grid to avoid peak utility charges and support the grid when utility supply is limited. Accessories include pre-wired universal DC distribution panel and AC distribution panels. Stacking two Conext SW units will double the system's total output power and available solar charge controllers allow for the integration of solar capacity as required.

Feature Bullets

• Higher Return on Investment - Cost effective. Excellent load start capabilities with high 30-minute and 5-second surge power. Harness the continuously declining production cost of solar power
• Designed for Reliability - Robust design through rigorous reliability testing (HALT)
• Flexible - Available in 24VDC and 48VDC models. All models support both 50Hz and 60Hz output. Stack two units to double output power up to 8 kW. Supports AC coupled and DC coupled off-grid and grid-tie architectures. Intelligent functionality enables self consumption with solar prioritization, peak shaving and, assisting small generators with heavy loads
• Easy to Install - Configures quickly into compact wall mounted system. Companion breaker panels integrate inverter with battery bank and solar charge controllers. Mounting bracket design makes hanging inverter on the wall easy
• Easy to service - Monitor, troubleshoot or upgrade firmware with the Conext ComBox, Global support and training, Replaceable boards and spare parts

Specifications:

Series/Model: Connext™ SW
Width: 13.4 in
Height: 16.5 in
Depth: 7.6 in
Output Power (Continuous) at 25 deg C: 3400 W (Inverter)
Output Power 30 min/60 sec at 25 deg C: 4000 W (Inverter)
Output Power 5 sec at 25 deg C: 7000 W (Inverter)
Peak Current: 42 A (Inverter)
Output Frequency: 50/60 Hz Selectable (Inverter)
Output Voltage: 230 VAC (Inverter)
Output Waveform: True Sine Wave
Idle Consumption Search Mode: <11 W (Inverter)
Input DC Voltage Range: 40- 68 VDC (Inverter)
AC Connection: Single Phase
Output Current: 45 A (Charger)
Nominal Output Voltage: 48 VDC (Charger)
Output Voltage Range: 24-64 VDC (Charger)
Charge Control: 3 Stage
Charge Temperature Compensation: Yes - BTS Installed (Charger)
Optimal Efficiency: 90% (Charger)
AC Input Power Factor: >0.98 (Charger)
Input Current: 14 A (Charger)
Input AC Voltage: 230 VAC (Charger)
Input AC Voltage Range Line to Neutral: 170 - 270 VAC (Charger)
Dead Battery Charge: Yes (Charger)
Compatible Battery Type: FLA, Gel, AGM, Custom
Transfer Relay Rating: 30 A
Transfer Time (AC to Inverter and Inverter to AC): <1 Cycle (16.7 ms)
Operating Temperature: -20 to 60 deg C
Ambient Temperature Rating: -40 to 85 deg C
Relative Humidity: <95% Non-Condensing Operating/Storage
Enclosure Rating: IP20, Indoor Only
Altitude (Operating): 2000 m
System Network and Remote Monitoring: Yes
Standards: CE mark, RCM mark, IEC/EN62109-1, IEC/EN62109-2, UL
Warranty: 2 Years
Weight: 62 lb
Application: Residential Backup Power, Off-Grid Solar
