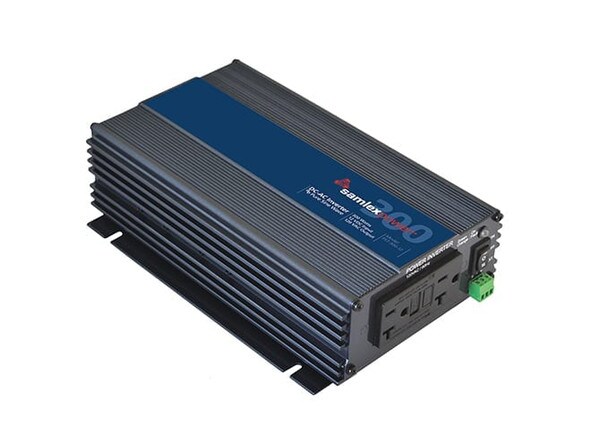

Samlex 300 W Off-Grid Pure Sine Wave Inverter

This high efficiency DC-AC inverter converts 12 VDC to 300 W of pure sine-wave AC power at 120 V, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm/shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. The PST series provides clean, pure sine wave power with a commercial grade design suitable for heavy duty loads, long periods of continuous operation, and for emergency back-up, giving you peace of mind when it comes to safe and reliable AC power.

Feature Bullets

• High efficiency
• Temperature controlled cooling fan - reduces energy consumption
• Low interference Wide operating DC input range: 10.5 - 16.5 VDC
• LED indicators for power and protections
• Low idle power draw
• Dual GFCI protected AC outlets
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC - Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

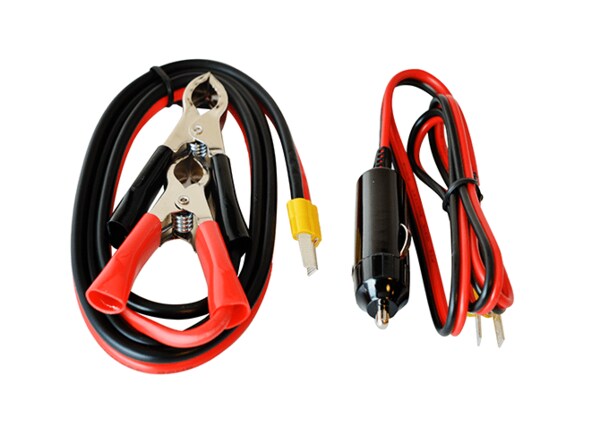

• Detachable cable with 12V plug adapter
• Detachable cable with battery clamps
• Safety certified to UL standards, FCC compliant
• Remote Input - Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
• Detachable cable with 12V plug adapter
• Detachable cable with battery clamps
• Quiet Operation - temperature controlled fan reduces energy consumption
• Extremely low interference with other devices
• GFCI protected outlets
• 1000-12HD, 1500, 2000 and 3000W models come with additional hard-wired connection
• Low idle power draw
• 1000-12HD has selectable low voltage shutdown, and an alarm buzzer disable switch
• Wide operating DC input range
• Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

Specifications:

Type: Off-Grid
Width: 6.1 in
Height: 2.58 in
Depth: 9.69 in
DC Input Voltage: 12 V
Output AC Voltage: 120 VAC +/-3%
Output AC Frequency: 60 Hz +/-1%
Operating Temperature: -20 to 40 deg C
Relative Humidity: 90% Non-Condensing

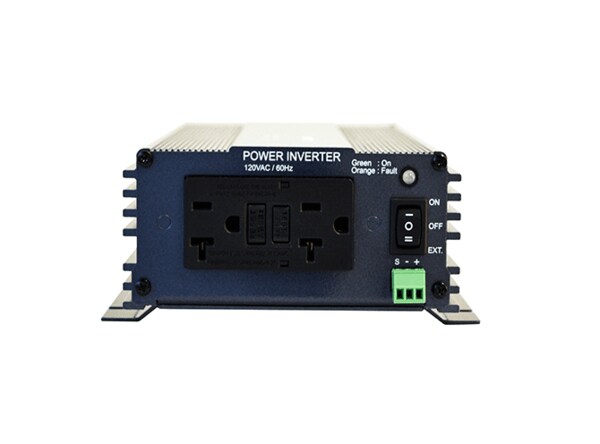

Output AC Connection: NEMA5-20R GFCI Duplex Outlets
Total Harmonic Distortion (THD): <3%
Storage Temperature: -30 to 70 deg C
Power Surge: 500 W (<8 ms)
Cooling: Temperature Controlled Fan ON at Internal Hot Spot >/=48 deg C , OFF at 42 deg C
Output Power: 300 W (at Power Factor = 1)
DC Input Voltage Range: 10.5-16.5 V
Maximum Input Current: 40 A

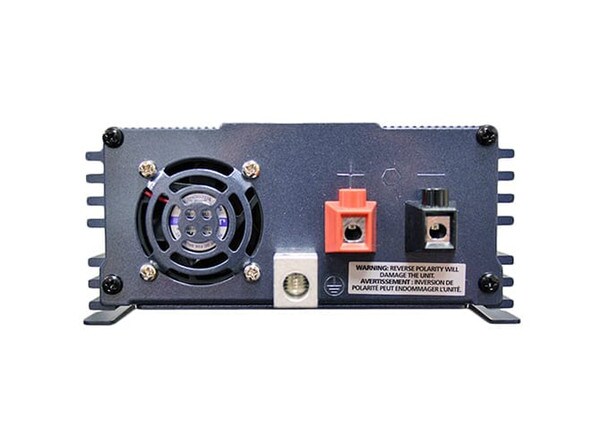

DC Input Connections: Hole Diameter: 5 mm , Set Screw: #10, 24 TPI
Maximum Output Current: 2.54 A
Display Type: LED - Power, Abnormal
Low DC Input Voltage Alarm: 10.5 V
Low DC Input Voltage Shutdown: 10 V, Auto Reset at 11.5 V
High DC Input Voltage Shutdown: 16.5 V, Auto Reset at <16.5 V
Short-Circuit Shutdown: When Output Voltage Drops to 80 VAC for 5 sec
Overload Shutdown: At Overload of 110% to 115% for 2 to 2.5 sec
Ground Fault Shutdown: Through NEMA5-20R GFCI Duplex Outlets
Over Temperature Shutdown: At Internal Hot Spot Temp of 95 deg C , Auto Reset at 70 deg C
Reverse Polarity on DC Input Side: Internal DC Fuse Will Blow
Peak Efficiency: 87% (Input)
Standards: Safety: Intertek - ETL Listed. Conforms to UL Standard 458 and certified to CSA Std. C22.2 No. 107.1, EMI/EMC: FCC Part 15 (B), cETLus Listed B, IEEE, FCC
Warranty: 3 Years Limited
Weight: 3.46 lb
Application: Service Vehicles, Mobile Offices, Boats, Recreation Vehicles, Camping, Telecommunication, Field Work/construction Sites, Solar Power Systems, Emergency Backup Power, Home Electronics: TV, VCR, Video Games, Computers, Printers
