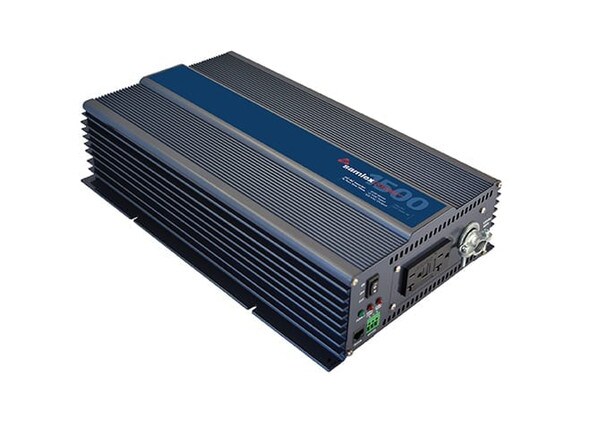

Samlex 1500 W Off-Grid Pure Sine Wave Inverter

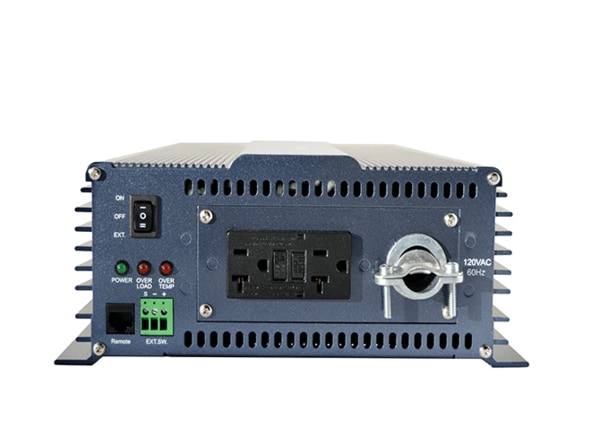

This high efficiency DC-AC inverter converts 24 Volts DC to 1500 Watts of pure sine-wave AC power at 120 V, 60 Hz. Features include overload protection, low battery alarm/shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards. The PST series provides clean, pure sine wave power with a commercial grade design suitable for heavy duty loads, long periods of continuous operation, and for emergency back-up, giving you peace of mind when it comes to safe and reliable AC power.

Feature Bullets

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan - reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 - 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC - Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Optional remote control (sold separately): Model RC-300
• Safety certified to UL standards, FCC compliant
• Remote Input - Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
• Quiet Operation - temperature controlled fan reduces energy consumption
• Extremely low interference with other devices
• GFCI protected outlets
• 1000-12HD, 1500, 2000 and 3000W models come with additional hard-wired connection
• Low idle power draw
• 1000-12HD has selectable low voltage shutdown, and an alarm buzzer disable switch
• Wide operating DC input range
• Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

Specifications:

Type: Off-Grid
Width: 10.35 in
Height: 18.43 in
Depth: 4.16 in
DC Input Voltage: 21.4 - 33 V
Output AC Voltage: 120 VAC +/-3%
Output AC Frequency: 60 Hz +/-1%
Operating Temperature: -20 to 40 deg C
Relative Humidity: 90% Non-Condensing
Output AC Connection: (i) NEMA5-20R GFCI Duplex Receptacle (ii) Terminal Block for Hardwiring: Hole Diameter (4 mm/0.16 In.) and Set Screw (#6 x 40TPI or M3.5 x 0.6 mm Pitch)
Total Harmonic Distortion (THD): <3%
Storage Temperature: -30 to 70 deg C
Power Surge: 3000 W (<8 ms)
Cooling: 2 Temperature Controlled Fans (Temperature is Sensed at Internal Hot Spot) Fan ON at 55 deg C +/-3 deg C, Fan OFF at 45 deg C +/-3 deg C
Output Power: 1500 W (at Power Factor = 1)
DC Input Voltage Range: 21.4-33 V
Maximum Input Current: 100 A

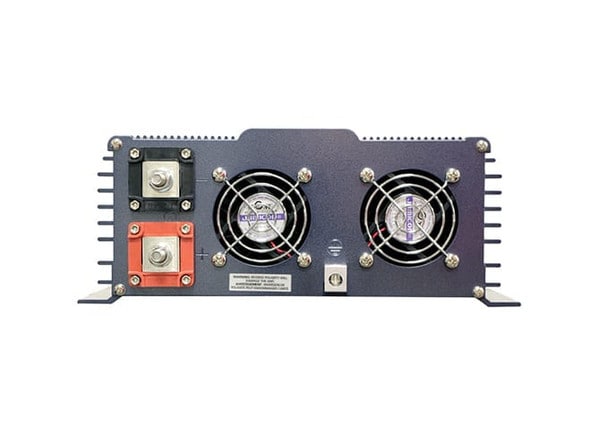

DC Input Connections: Bolt & Nut: 5/16 In. x 18 TPI
DC Input Fuses (Internal): 5 x 20 A = 100 A (Each 20 A, 32 V, Automotive, Blade Type)
Maximum Output Current: 12.5 A
Display Type: LED - Power, Overload, Over Temperature
Low DC Input Voltage Alarm: 21.4 V +/-0.2 V
Low DC Input Voltage Shutdown: 20 V +/-0.2 V, Auto-Reset: 23 V +/-0.5 V
High DC Input Voltage Shutdown: 33 V, Auto-Reset at <33 V
Short-Circuit Shutdown: When Output Voltage Drops to 80 V or Lower for 1 to 1.5 sec
Overload Shutdown: At Overload of 110% to 115% for 2 to 2.5 sec
Ground Fault Shutdown: Through GFCI Outlets (5 to 6 mA Leakage)
Over Temperature Shutdown: 90 deg C +/-5 deg C (Sensed at Internal Hot Spot) , Auto Reset at 65 deg C +/-5 deg C
Reverse Polarity on DC Input Side: External/Internal DC Sides Fuses Will Blow
Peak Efficiency: >85% (Input)
Standards: Safety: Intertek - ETL Listed. Conforms to UL Standard 458 and certified to CSA Std. C22.2 No. 107.1, EMI/EMC: FCC Part 15 (B), cETLus Listed B, IEEE, FCC
Warranty: 3 Years Limited
Weight: 15.6 lb
Application: Service Vehicles, Mobile Offices, Boats, Recreation Vehicles, Camping, Telecommunication, Field Work/construction Sites, Solar Power Systems, Emergency Backup Power, Home Electronics: TV, VCR, Video Games, Computers, Printers
