Samlex America EVO Series 4000 W 2 Fans Pure Sine Wave Inverter/Charger

(0)No Reviews yet
SKU: EVO-4024

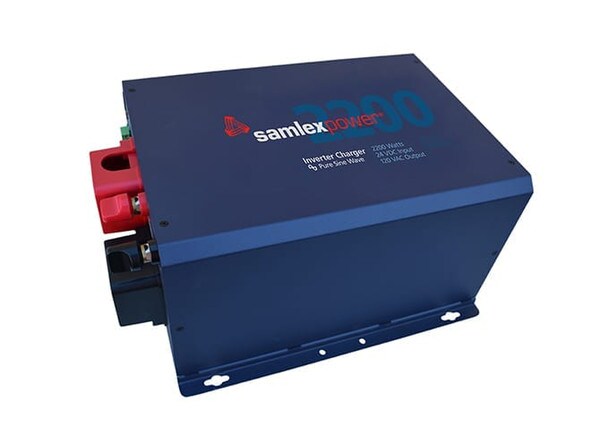

Pure sine wave inverter, adaptive battery charger, transfer relay - All in ONE unit. Samlex Evolution™ Series inverter/chargers provide reliable AC power wherever it's needed. For use with boats, RVs, cabins and specialty vehicles, as well as alternative energy, back-up and emergency power applications. Using state-of-the-art technology, the Samlex EVO™ inverter/charger operates at 165 million instructions per second with lightning fast load & response times, has 9 points of physical protection monitoring (being scanned up to 10000 times per second) to detect fault conditions & protect itself in a vast range of adverse environments.

Feature Bullets

  • Two separate AC inputs - one for grid (priority #1), one for generator (priority #2), connect simultaneously, no need to reconfigure when different power sources are available
  • Each AC input is programmable for voltage and frequency. User determines what the min and max thresholds are to switch from Grid or Generator to Inverter
  • Generator start can be initiated by "Status Relay" contact, can be programmed to activate when grid is lost


Series: EVO
Overall Length: 8.15 in
Overall Width: 12.79 in
Overall Depth: 16.77 in
Input Voltage: 24 Vdc
Output Voltage: 120 Vac
Power Rating: 4000 W
Input Current: 266 A
Amperage Rating: 33 A
Efficiency: 94%
Frequency Rating: 50/60 Hz
Cooling Type: 2 Fans
Power Factor: >0.95
Temperature Rating: -4 to 140 deg F
