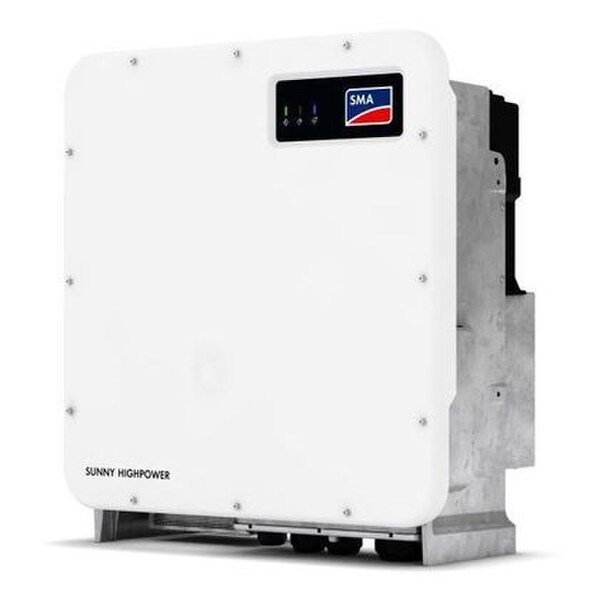

SMA Solar Technology AG 125 kW 18.2 in Sunny Highpower Peak3 Inverter

The new sunny highpower Peak3 is SMA's latest addition to a comprehensive portfolio of utility solutions. This 1,500 VDC inverter offers high power density in a modular architecture that achieves a cost-optimized solution for utility-scale PV integrators. With fast, simple installation and commissioning, the sunny highpower Peak3 is accelerating the path to energization. SMA has also brought its field-proven smart connected technology to the Peak3, which simplifies O&M and contributes to lower lifetime service costs. The Peak3 utility system solution is powered by the ennexOS cross sector energy management platform, 2018 winner of the Intersolar smarter E award.

Feature Bullets

• Modular architecture reduces BOS and maximizes system uptime
• Compact design and high power density maximize transportation and logistical efficiency
• Scalable 1,500 VDC building block with best-in-class performance
• Flexible architecture creates scalability while maximizing land usage
• Ergonomic handling and simple connections enable quick installation
• Centralized commissioning and control with SMA data manager
• SMA smart connected reduces O&M costs and simplifies fieldservice
• Powered by award winning ennexOS cross sector energy management platform

Specifications:

Width: 30.3 in
Height: 32.7 in
Depth: 18.2 in
Power Rating: 125 kW
Efficiency: 98.5%
Frequency Rating: 50/60 Hz
Power Factor: 1/0.8 Leading - 0.8 Lagging
Operating Temperature: -25 to 60 deg C
Noise Emission: <69 dBA
Operating Voltage: 684-1500 V
Output Amperage: 151 A
AC Voltage: 480 V
