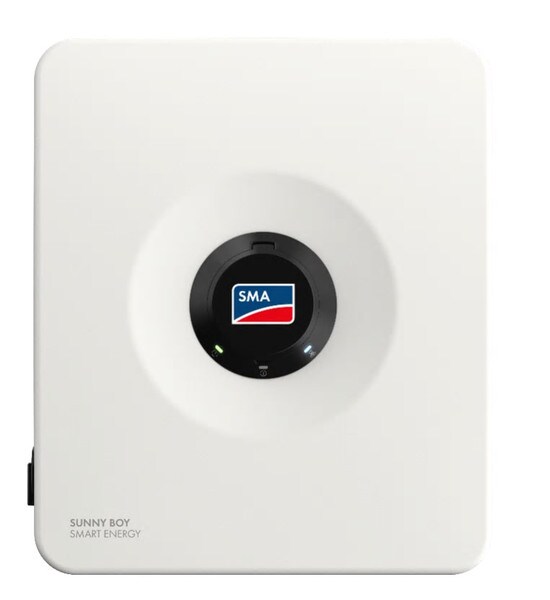

SMA Sunny Boy Smart Energy 9.6kW 208/240 VAC Single Phase Hybrid Inverter

(0)No Reviews yet

For over 40 years, SMA has been the leader in solar energy and the new SMA Home Energy Solution will continue this trajectory. Installers choose SMA for reliability, performance and innovation. At the heart of the SMA Home Energy Solution is the new, ground-breaking Sunny Boy Smart Energy hybrid inverter. This system enables both immediate energy use and storage in one single device. SMA Backup Secure is back (previously Secure Power Supply). With most grid-tied inverters, when the grid goes down, so does the solar-powered home. SMA's solution provides daytime energy to a dedicated power outlet during grid outages, providing homeowners with access to power as the sun shines. With its high-speed battery charging capabilities to its easy installation and handling, this newest offering will provide a capable, flexible solution that empowers homeowners to take control of their energy.

Feature Bullets

  • Ultimate flexibility: 200% DC/AC design capability PV, Hybrid and AC coupling in one, 3 MPPT optimizing channels, Larger power classes
  • Easy installation: Smaller and lighter, eases mounting, 2-in-1 solution saves time, wall space and electrical upgrades, Rapid commissioning via built-in SunSpec Certified RSD transmitter
  • Complete reliability: No need for complex microinverters or optimizers, 10-year warranty, extendable to 25, Energy security with or without a battery
  • New, modern design: Fresh aesthetic look, with more functional capabilities, Curved, easy-open cover, Quick commissioning, SMA 360° app saves installers time and money, Scan, tap and connect multiple devices from your mobile device or tablet
  • SMA 360° App: When combined with the SMA Sunny Boy Smart Energy, the SMA 360° app enables installers to quickly commission, monitor, and access resources all in one place


Type: Preliminary, Transformerless Topology
Dimensions: 20 in Width x 23 in Height x 8 in Depth
Maximum PV Array Power: 19200 Wp
Voltage Rating: 600 Vdc, 240/208 Vac
MPP Voltage Range: 60-480 V
Battery Type: HV/Lithium Based (TBD)
Power Rating: 9600 W
Frequency Rating: 60/55-66 Hz
Output Amperage: 40 A
Efficiency: 98%
Wire Size: 10-6/12-6 AWG
Efficiency: 98%
Enclosure Rating/IP Rating: IP65/NEMA 3R
Warranty: 10 Years
