  • SMA Sunny Boy Smart Energy SBSE 7.7

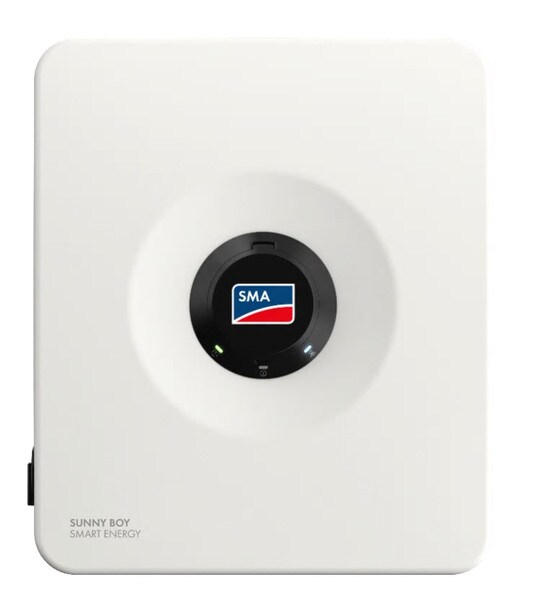

SMA Sunny Boy Smart Energy SBSE 7.7

(0)No Reviews yet
DIMENSION: 20" x 23" x 8"

This item is in BACK ORDER

SpecificationsSMA Sunny Boy Smart Energy > 7.7kW 208/240 VAC Single Phase Hybrid Inverter

The hybrid inverter at the heart of the SMA Energy System, with three backup options.*
For over 40 years, SMA has made using solar energy easier and more efficient. The SMA Energy System Home continues this tradition, empowering homeowners to generate and use even more sustainable energy. At the heart of the system is the new ground-breaking hybrid inverter, the Sunny Boy Smart Energy which enables both immediate energy use and energy storage in a single device, with three available backup options. The Sunny Boy Smart Energy shines with its high-speed battery charging capability. Conventional charging performance is challenged during transitional months by few hours of sunshine and plenty of cloud cover, but Sunny Boy Smart Energy’s fast charging allows more solar power to be harvested and stored in those few hours, ready to power loads and reduce energy costs.

ModelSBSE 7.7
SeriesSunny Boy

General Data / Mechanical

TypeCentral Hybrid Grid-Tie, Battery Backup
Operating Temperature Range−13 °F to +140 °F with derating
EnclosureIP65 / NEMA 3R
Topology / cooling methodTransformerless / Natural convection
Dimensions (W x H x D)20" x 23" x 8"
Weight38 lbs
Certificates and permits (more available upon request)UL 62109-1 / UL 1741 CRD / UL 62109-1 CRD
Certificates and approvals (planned)UL 1741 SB, UL 1998, UL 1699B Ed. 1, UL9540, IEEE1547, FCC Part 15 (Class A & B), CAN CSA-C22.2, CA Rule 21, HECO Rule 14H, PV Rapid Shutdown System Equipment, TBD
Shipping MethodGround

Input PV (DC)

Max. usable DC power15,400 Wp
Max Voltage600 V
Rated MPP voltage range60 V - 480 V
Rated input voltage / Startup input voltageTBD / 60 V
Max. usable current input per MPPT15 A
Max. short-circuit current input per MPPT30 A
Number of independent MPPT inputs / inputs per MPPT3 / 1
Connection of MPPT inputs in parallelA and B

Input Battery (DC)

Battery typeHV / Lithium based (TBD)
Voltage range / Rated input voltage96 V to 500 V / 360 V
Max. charging current / max. discharging current30 A / 30 A
Number of independent battery inputs1
Max. charging power / max. discharging powerTBD / 7700 W

Output (AC)

Max. apparent AC power7700 VA
AC Rated power (at 240 V, 60 Hz)7700 W
AC Rated power (at 208 V, 60 Hz)TBD
AC voltage rated and range240 V (211 V to 264 V) or 208 V (183 V to 229 V)
AC grid frequency / range60 Hz / 55 Hz to 66 Hz
Max. rated output current32 A
Breaker (overcurrent protection)40 A
Power factor at rated power1 / adjustable 0.8 overexcited to 0.8 underexcited
Max. efficiency / CEC efficiency98% / TBD
