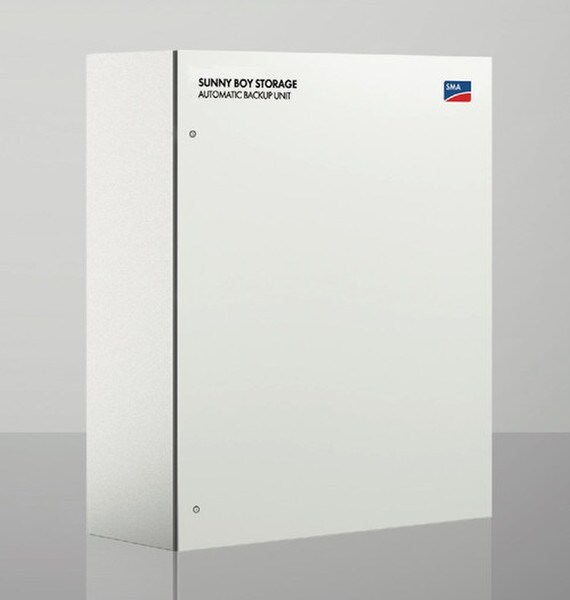

SMA Sunny Boy SBS-ABU-200-US-10 Automatic Back-Up Unit

The new SMA Automatic Backup Unit is an automatic transfer switch designed specifically for use with the SMA Sunny Boy Storage inverter family. In the event of a grid failure, the automatic transfer switch disconnects the PV system, loads and the Sunny Boy Storage from the utility grid and creates a battery-backup grid. The included Backup Unit Controller coordinates grid disconnection and reconnection to ensure minimal downtime while also allowing for up to 5 kVA of unbalanced loads. When paired with SMA Sunny Boy inverters, the Sunny Boy Storage curtails PV power production to match load in the event the battery is full to maximize use of solar production. The Automatic Backup Unit can be installed in a wide variety of installation types which makes for a versatile tool.

Feature Bullets

• Suitable for many use cases including whole home backup power
• Up to three high-voltage batteries can be connected in parallel to a single sunny boy storage
• 200 amp rated bus allows for direct line-side connection to large home electrical panels
• Up to 5 kVA of unbalanced load
• Outdoor rated for harsh environments
• Pre-wired and tested to make for easy commissioning
• Plug-n-play installation with sunny boy storage inverter
• Easy setup and commissioning via sunny boy storage webUI
• AC coupled architecture allows for new PV or retrofit installations
• Fully integrated solution reduces balance of system costs

Specifications:

Includes: Wattnode Energy Meter & (2) CTs
Suitable For Use With: SMA Sunny Boy Storage Inverter Family
Voltage Rating: 240/120 V
Frequency Rating: 60 Hz
Amperage Rating: 200 A
Power Rating: 7680 VA Max Surge, 9300 VA Max Instantaneous
Dimensions: 19.69 in Width x 27.56 in Height x 9.84 in Depth
Operating Temperature: -25 to 55 deg C
Enclosure Rating/IP Rating: NEMA 3R
Cooling Type: Convection
Standards: UL 1741, IEEE, FCC, CSA, CSAUS, cULus
Warranty: 10 Years
Weight: 1.33 lb
