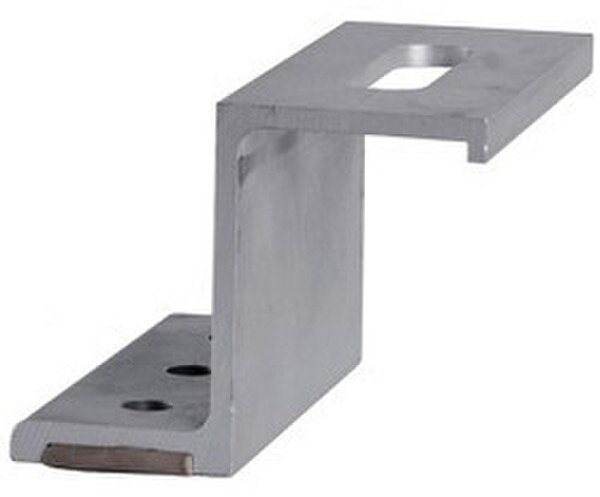

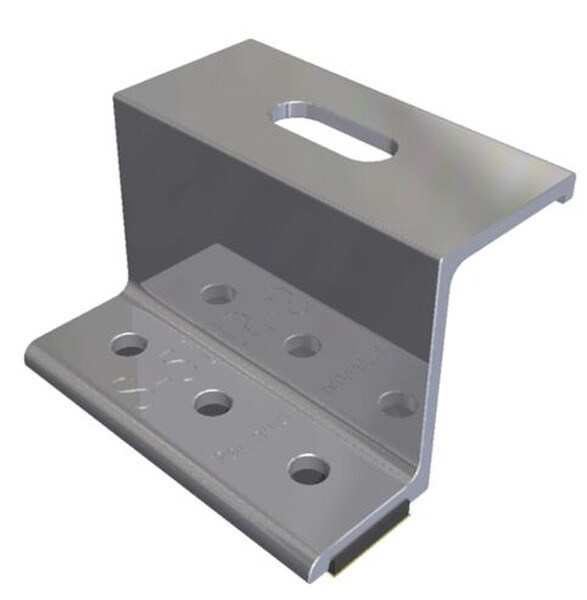

S-5! VersaBracket-47 Metal Roof Mounting Clamp

VersaBracket can be used to mount virtually anything to a face-fastened roof system and is compatible with almost any trapezoidal, face-fastened profile. No messy sealants to apply. No chance for leaks. The VersaBracket comes with factory-applied sealant already in the base for a water-tight attachment. VersaBracket is so strong, it will even support heavy-duty applications like snow retention. For exposed-fastened, trapezoidal profiles, the VersaBracket™ is the perfect match for our ColorGard snow retention systems (For corrugated roofs use CorruBracket). VersaBracket is extremely economical and facilitates quick and easy installation. To accommodate various rib heights, VersaBracket comes in two heights-the 2.65 in VB-67 and the 1.86 in VB-47. The VB-67 mounting face has no holes or slots, thus, ancillary items are typically secured using self-tapping screws (not included). The VB-47 offers various mounting face configurations with minimum purchase requirements. Each VersaBracket™ comes with factory-applied butyl sealant in the base. A structural aluminum attachment bracket, VersaBracket is compatible with most common metal roofing materials. Installation is simple. VersaBracket is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e., wood decking, wood or steel purlins or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align and apply. Secure through the pre-punched holes using the appropriate screws for the supporting structure.

Feature Bullets

• Easy installation, and high compatibility
• 1.86 ft with butyl pad without hardware

Specifications:

Suitable For Use With: Face-Fastened Roof System
Material: Aluminum
Standards: UL Listed
Includes: Face-Fastened
Dimensions: 2 in Height x 3 in Width x 2.5 in Depth
Warranty: 25 Years Limited
