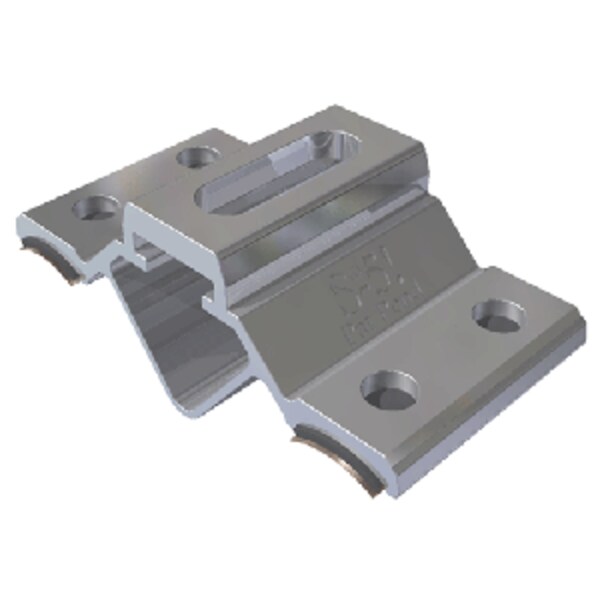

S-5! Aluminum Metal Roof Mounting Clamp

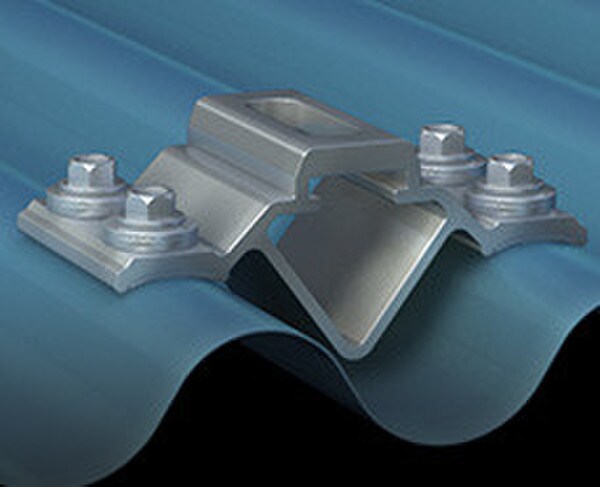

CorruBracket 100T is designed specifically for corrugated roofing profiles that are common in North America. CorruBracket 100T is affixed to the crest of the corrugation, leaving the drainage plane free of holes to protect against leaks. For medium-duty applications, the bracket can be attached directly to the sheeting, accommodating ancillary attachment anywhere along the corrugation. For heavy-duty applications, the bracket can be fixed into the underlying substrate for additional support without crushing the corrugation. Having no messy sealants to apply, CorruBracket 100T comes with a factory-applied EPDM rubber gasket seal already on the base, and the. S-5!-patented reservoir conceals the EPDM from UV exposure, preventing UV degradation. Installation is simple! CorruBracket 100T is mounted directly into the crest of the corrugation, straddling the valley. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure directly into the crest of the corrugation by driving the appropriate screws into the pre-punched holes, or pre-drilling the proper-sized hole through the pre-punched holes and riveting. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifies alignment and maximizes flexibility in attaching ancillaries.

Feature Bullets

• A structural aluminum attachment bracket, CorruBracket 100T is compatible with most common metal roofing materials. S-5! holding strength is unmatched in the industry. S-5! CorruBracket 100T is the right way to attach almost anything to corrugated roofing profiles common in North America, including PV via rail or Direct Attached methods
• For medium or heavy-duty applications
• Leak-proof
• Quick and easy installation
• Hardware not included

Specifications:

Suitable For Use With: Corrugated Metal Roofing
Material: Aluminum
Standards: UL Listed
Includes: M10-1.5 and M8-1.25 Threaded Holes, EPDM Rubber Gasket Seal

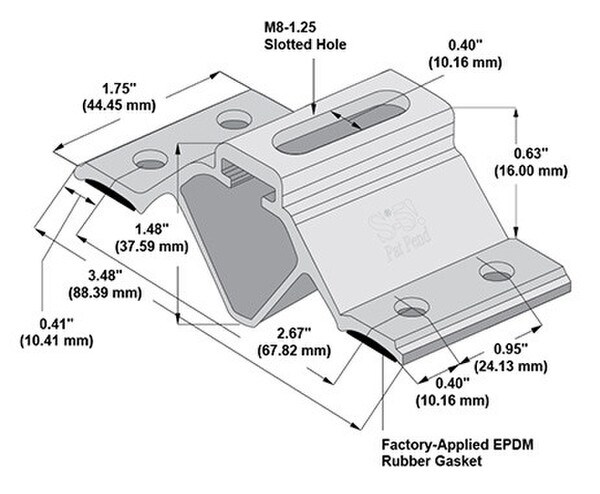

Dimensions: 3.5 in Height x 1.68 in Width x 3 in Depth
Warranty: 25 Years Limited
