Rich Solar | Solar Connectors

Feature Bullets

• Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions

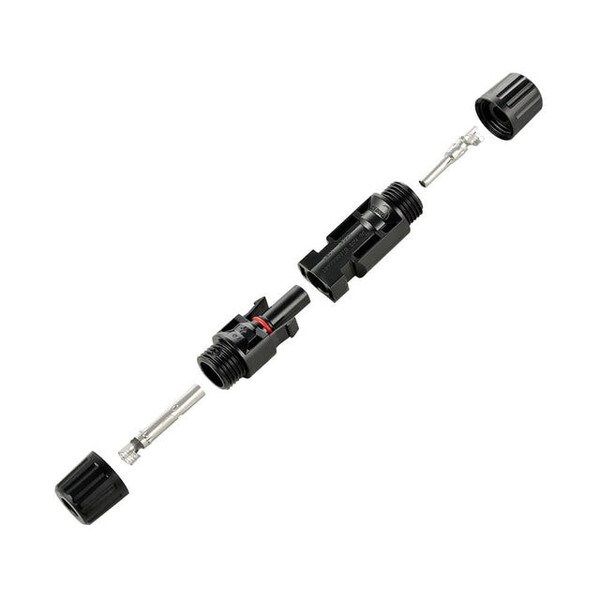

• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Waterproof and dustproof

Specifications:

Current Rating: 30 A
Maximum Voltage Rating: 1000 VDC
Wiring Range: 10 AWG, 12 AWG
Insulation Material: PA/PC
Contact Material: Tinned Copper
Operating Temperature: -40 to 90 deg C
Includes: (5) Female Connectors
Standards: UL Listed, IEEE, FCC, cCSAus Certified
Warranty: 25 Years
