Rich Solar MEGA 250 Watt Monocrystalline Solar Panel | Best 12V Panel for RVs and Off-Grid | 25-Year Output Warranty | UL Certified

Been looking for the best RV off grid solar system for you? This MEGA 250W 12V Solar Panel will help start your camper solar setup. Get this to start your solar adventure today.

Feature Bullets

• 16 Buss bar solar cell configuration

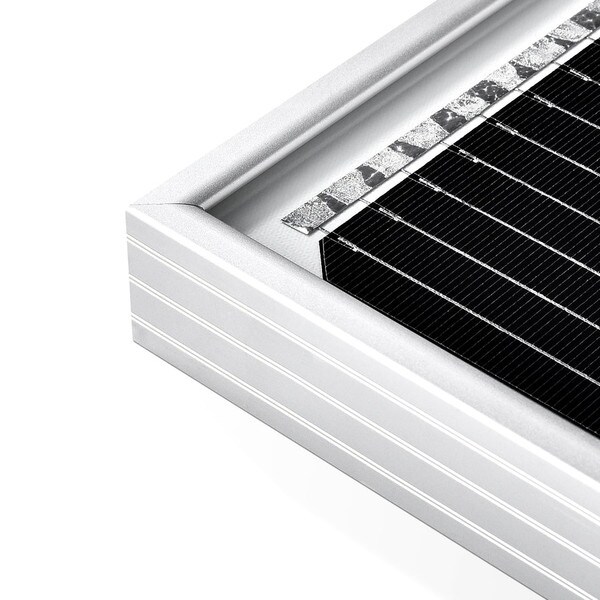

• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters

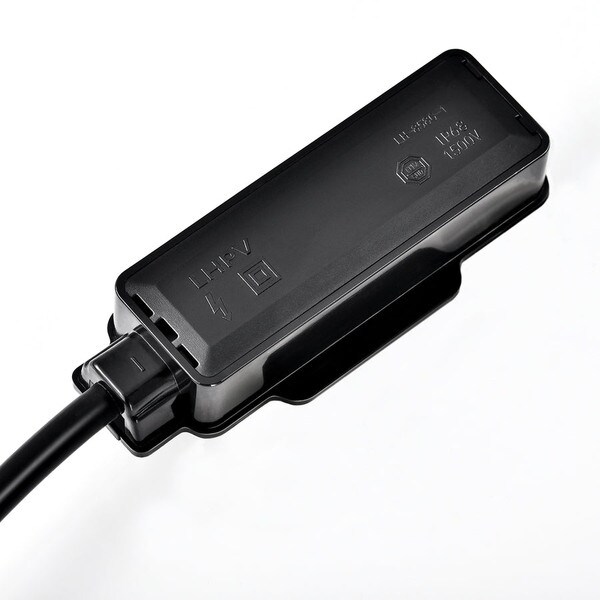

• Built-In Components: Panel leads (pair): 3 ft each, IP65 rated waterproof junction box, IP67 rated waterproof solar connectors, bypass diodes built-in the junction box

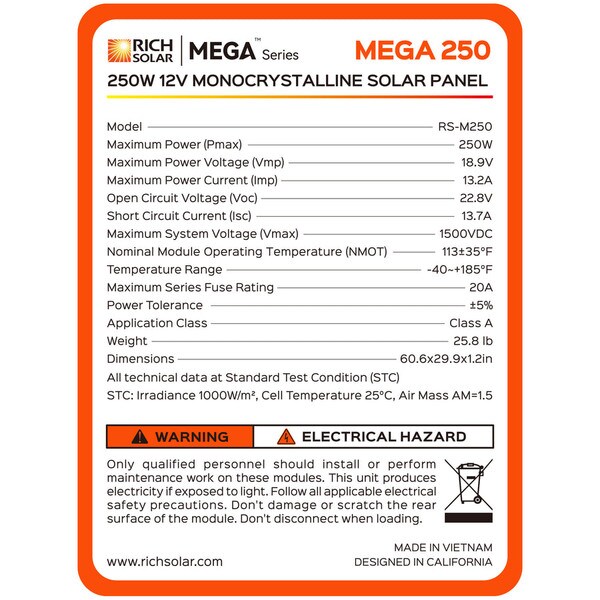

Specifications:

Type: High Efficiency
Series/Model: Mega™

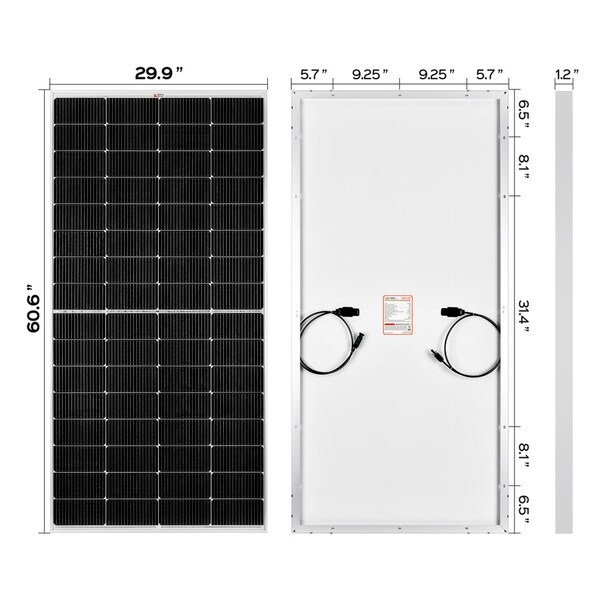

Length: 60.6 in
Width: 29.9 in
Height: 1.2 in
Cells Technology: Monocrystalline Silicon
Cell Dimensions: 182 mm x 91 mm
Number of Half Cells: 64 (2 x (4 x 8))
Maximum Power (Pmax): 250 W STC
Maximum Power Voltage (Vmp): 18.9 V STC
Maximum Power Current (Imp): 13.2 A STC
Open-Circuit Voltage (VOC): 22.8 V STC
Short-Circuit Current (Isc): 13.7 A STC
Maximum System Voltage: 1500 VDC
Module Efficiency: 19.5%
Frame Material: Anodized Aluminum Alloy
Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated Tempered Glass
Frame Color: Silver
Backsheet Color: White
Irradiance: 1000 W/m2 STC
Output Cables: Photovoltaic Technology Cable 4 mm2 (#12 gauge), 35 in Length
Connector Type: MC4
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C STC
Temperature Coefficients of Pmax: -0.39%/deg C STC
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/deg C STC
Temperature Coefficients of Isc: 0.05%/deg C STC
Nominal Operating Cell Temperature: 45 deg C +/-2%/deg C
Air Mass (AM): 1.5 STC
Junction Box: IP65 or IP67 Rated
Power Output Tolerance: 0-5 W
Includes: Rich Solar 250 W Monocrystalline Solar Panel, Panel Leads (Pair): 3 ft Each, IP65 Rated Waterproof Junction Box, IP67 Rated Waterproof Solar Connectors, Bypass Diodes Built-in the Junction Box
Standards: TUV, ETL, PV Cycle, MCS, IEC, UL
Warranty: 25 Years Limited Power Output
Weight: 25.8 lb
Application: Best 12V Panel for RVs and Off-Grid
