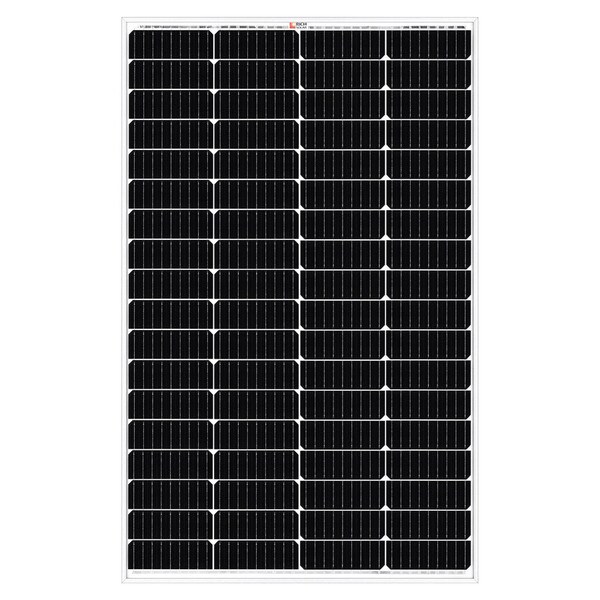

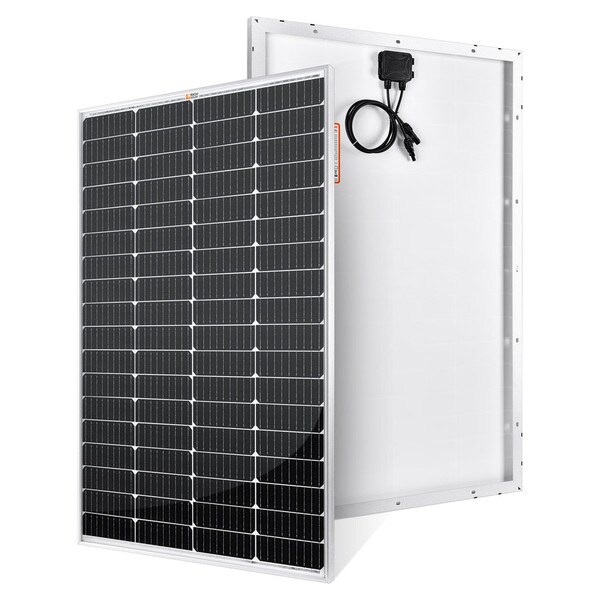

Rich Solar Mega 150 Watt Solar Panel

Been looking for the best RV off grid solar system for you? This MEGA 150W 12V Solar Panel will help start your camper solar setup. Get this to start your solar adventure today.

Feature Bullets

• 9 Buss bar solar cell configuration
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box

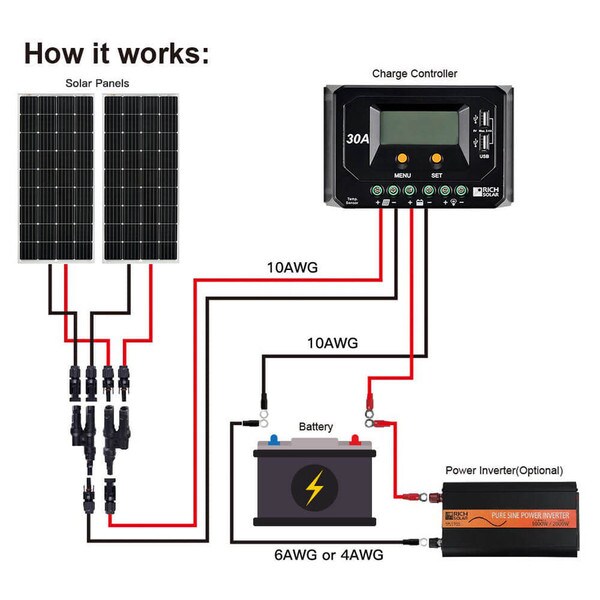

• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts

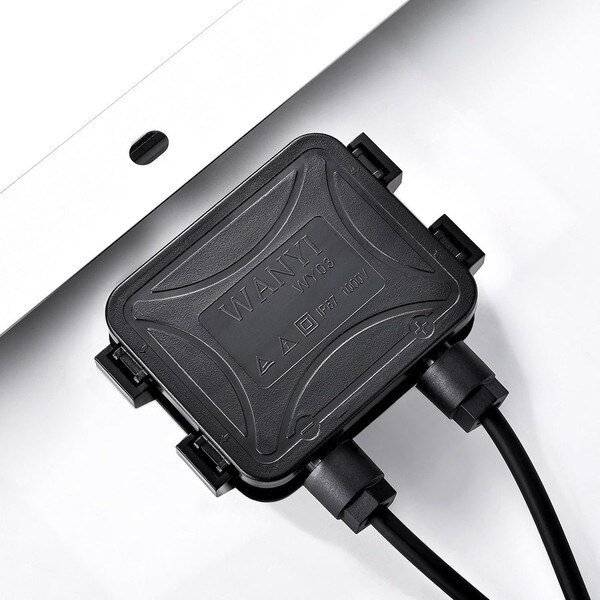

• Waterproof junction box

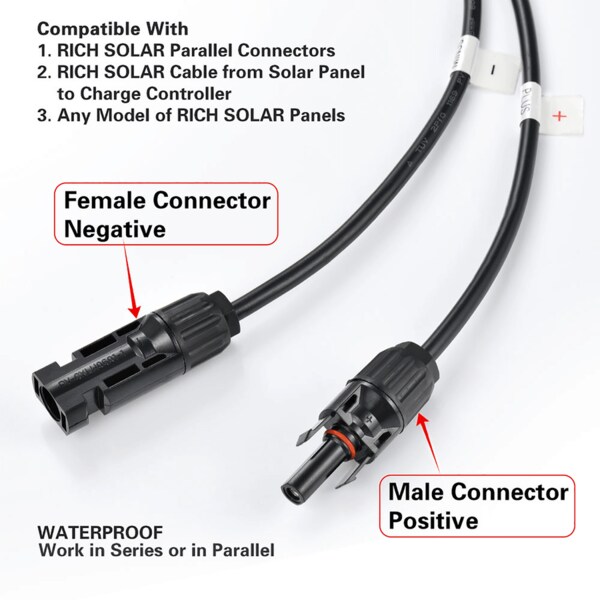

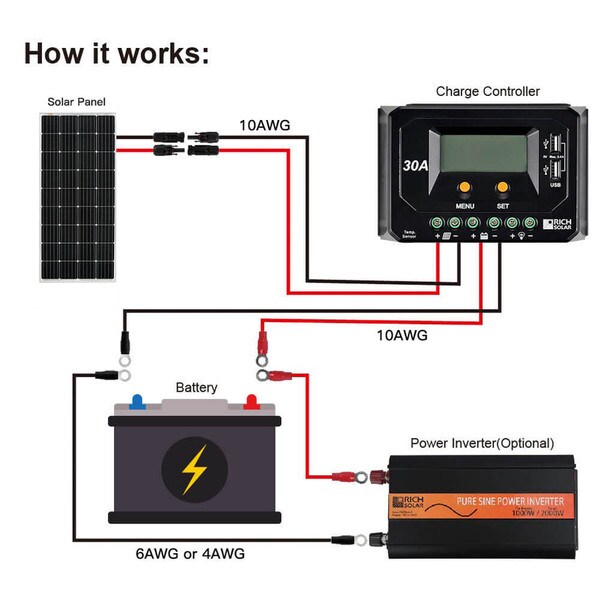

• Compatible with Rich Solar parallel connectors, Rich Solar wires from solar panel to charge controller, any model of Rich Solar panels
• Male connector positive
• Waterproof - Work in series or in parallel

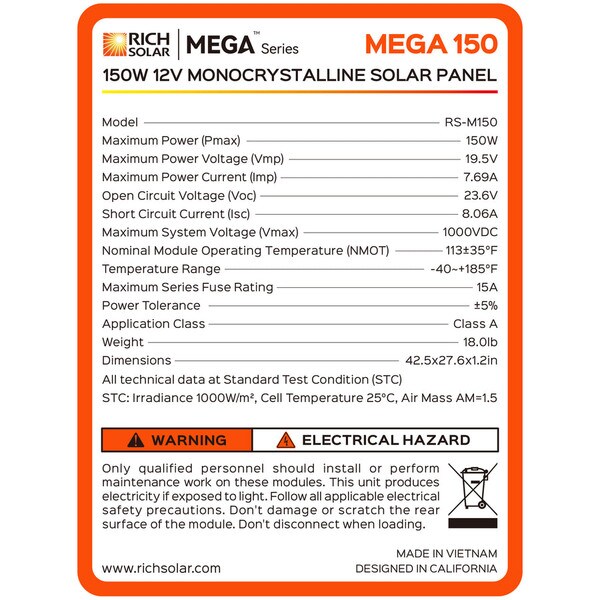

Specifications:

Series/Model: Mega™

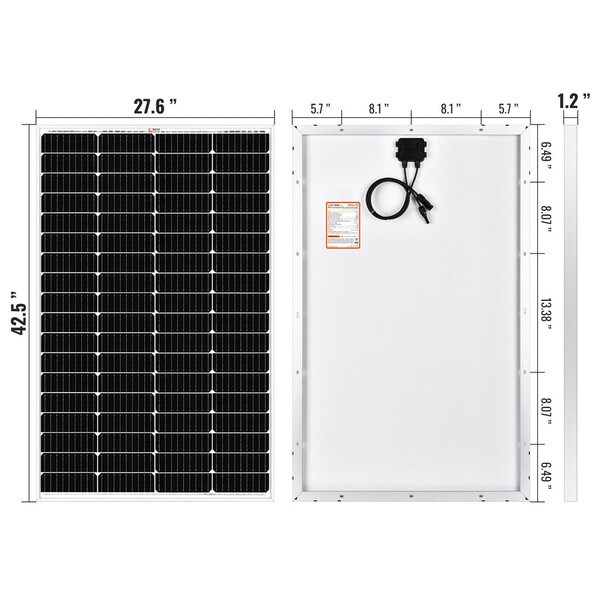

Length: 42.5 in
Width: 27.6 in
Height: 1.2 in
Cells Technology: Monocrystalline (Mono)
Maximum Power (Pmax): 150 W STC
Maximum Power Voltage (Vmp): 19.5 V STC
Maximum Power Current (Imp): 7.16 A STC
Open-Circuit Voltage (VOC): 23.6 V STC
Short-Circuit Current (Isc): 8.06 A STC
Maximum System Voltage: 1000 VDC
Maximum Series Fuse Rating: 10 A
Module Efficiency: 12.1%

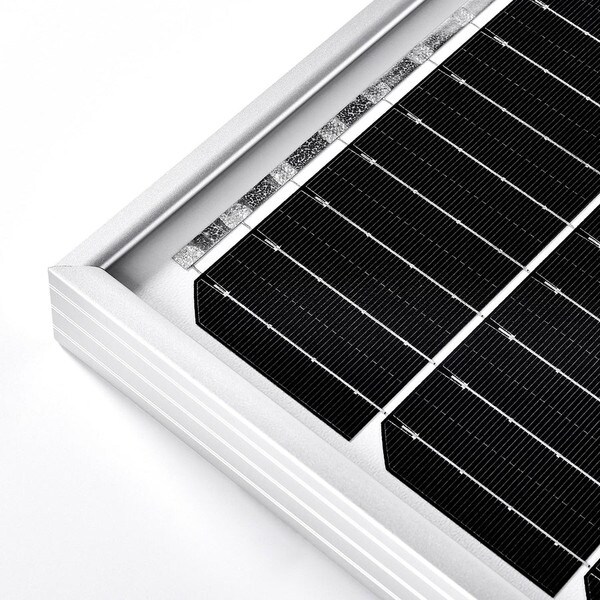

Frame Material: Anodized Aluminum Alloy
Front Glass: High Transmission, Anti-Reflection Coated Tempered Glass
Frame Color: Silver
Backsheet Color: White
Irradiance: 1000 W/m2 STC
Hailstone Test: Steel Ball Falls Down from 1 m Height
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C STC
Temperature Coefficients of Pmax: -0.503%/deg C STC
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.376%/deg C STC
Temperature Coefficients of Isc: 0.058%/deg C STC
Nominal Operating Cell Temperature: 113 deg F +/-35% deg F
Air Mass (AM): 1.5 STC
Junction Box: IP65 or IP67 Rated
Power Output Tolerance: 0-5 W
Surface Maximum Load Capacity: 60 m/s (200 kg/m2)
Includes: Rich Solar Mega 150 W Monocrystalline Solar Panel, Panel Leads (Pair): 3 ft Each, IP67 Rated Waterproof Junction Box, IP67 Rated Waterproof Solar Connectors, Bypass Diodes Built-In the JunctionBox
Standards: TUV, ETL, PV Cycle, MCS, IEC, UL
Warranty: 25 Years 80% Output Power, 5 Years Materials & Workmanship
Weight: 18 lb
Application: Best 12V Panel for VAN RVs and Off-Grid
