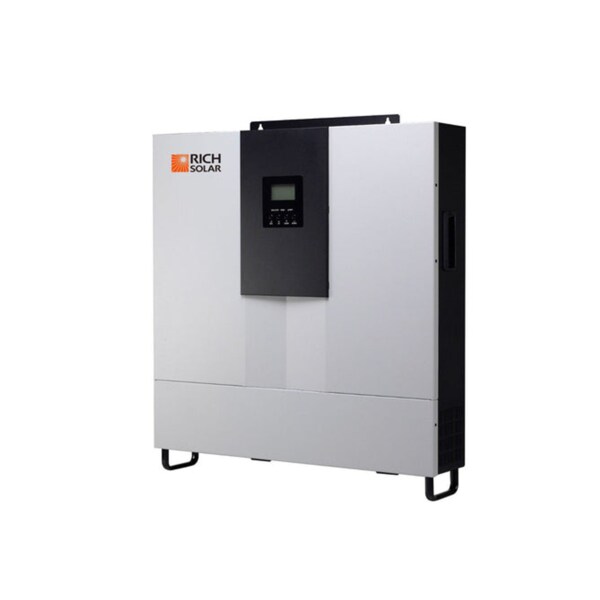

Rich Solar 6000 Watt Off-Grid Hybrid Split Phase Solar Inverter 120VAC/208VAC/240VAC

Feature Bullets

• Pure sine wave inverter
• Selectable output voltage at 120VAC/208VAC/240VAC depending on applications
• Built-in 2 strings of MPPT solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Maximum 3 units in parallel operation for single phase, split phase and three phase applications

Specifications:

Width: 622.6 mm
Height: 610 mm
Depth: 130 mm
Phase: 120/208/240 V Split Phase
Rated Input Voltage: 110/120 VAC (L-N or L1-N-L2)
Maximum AC Input Voltage: 95-140 VAC (For Personal Computers), 65-140 VAC (For Home Appliances) - Line Mode
Efficiency: 90% - Output, 96% Maximum MPPT Charging, 92% Maximum AC Charging Efficiency
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Rated Output Power: 6000 VA/6000 W
Output Voltage Waveform: Pure Sine Wave
Output Voltage Regulation: 110/120 VAC (L-N or L1-N-L2)
Output Frequency: 50/60 Hz (Default) - Inverter Output Mode
Peak Efficiency: 93% - Inverter Output Mode, 93% Solar Input Charger Mode
Battery Voltage: 48 VDC
Floating Charging Voltage: 54 VDC - Battery
Overcharge Protection: 60 VDC- Battery
Maximum PV Array Power: 8000 W (4000 x 2) - Solar Charge Input
Maximum PV Array Open-Circuit Voltage: 145 VDC - Solar Charge Input
PV Array MPPT Voltage Range: 60-115 VDC - Solar Charge Input
Maximum PV Charging Current: 160 A
Maximum Charging Current: 220 A - Solar Charge Input
Maximum AC Charging Current: 60 A - Solar Charge Input
Solar Charge Controller Type: MPPT
Operating Temperature: 10-50 deg C
Storage Temperature: -15 to 60 deg C
Humidity: 5-95% Relative Humidity (Non-Condensing)
Standards: TUV, ETL Listed, PV Cycle, MCS, IEC, UL
Warranty: 2 Years
Weight: 30 kg
