Rich Solar 12V - 600AH - 7.6kWh Lithium Battery Bank

RICH SOLAR 12V lithium battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint. Easily uses the same space as your existing 12V battery bank and replaces lead acid, AGM or Gel battery applications in RVs, boats, commercial vehicles, off grid back up power and much more. Not intended to replace starting batteries.

Feature Bullets

• Extremely high number of charge/discharge cycles
• > 10 Year lifespan with proper maintenance
• Built-in smart battery management system
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• Lifetime customer support
• Over charging or discharging protection
• Over current & short circuit protection
• High & low temperature disconnects
• Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
• Convenient removable carry handle
• Lightweight
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated battery management system (BMS)

Specifications:

Nominal Voltage Rating: 12.8 V
Nominal Capacity: 600 Ah
Minimum Capacity: 190 Ah
Cycle Life: >5000 cycles with 1C Charge & Discharge Rate, at 77 deg F, 80% DOD
Energy: 2560 Wh
Continuous Discharge Current: 200 A
Over Voltage Shutdown: 15.6 +/-0.2 V
Discharge Cut-off Voltage: 8 V =/-0.5 V
Self-Discharge: <3% Per Month
Enclosure Rating: IP65
Charge Temperature: 32-140 deg F
Discharge Temperature: -4 to 140 deg F
Storage Temperature: -4 to 140 deg F
BMS Temperature: 32-149 deg F
Dimensions: 19 in Length x 6.7 in Width x 9.5 in Height
Group Size: 62
Battery Post Size: 5/16 in
Over Charge Detection Voltage: 3.9 +/-0.05 V
Over Charge Detection Delay Time: 0.96-1.4 sec
Over Charge Release Voltage: 3.80 +/-0.05 V
Maximum Charge Voltage: 3.65 +/-0.05 V
Over Discharge Detection Delay Time: 115-173 ms
Over Discharge Release Voltage: 2.3 V +/-0.10 V
Over Current Detection Delay Time: 9 +/-2ms
Over Current Release Condition: Cut Load
Polarity Reverse Protection: Yes
Short-Circuit Protection: Yes
Standards: UL Listed, IEEE, FCC, cCSAus Certified

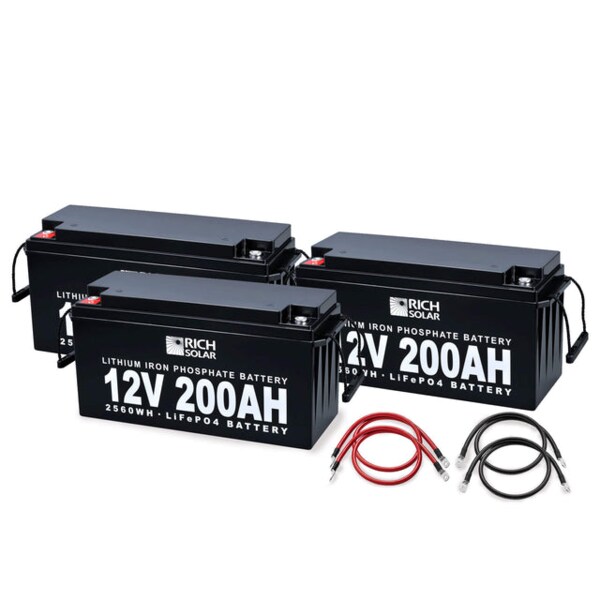

Includes: 3 x 12 V 200 Ah LiFePO4 Battery, 4 x 1 ft 2 AWG Battery Cable
Warranty: 3 Years Manufacture Defect
Weight: 42.5 lb
