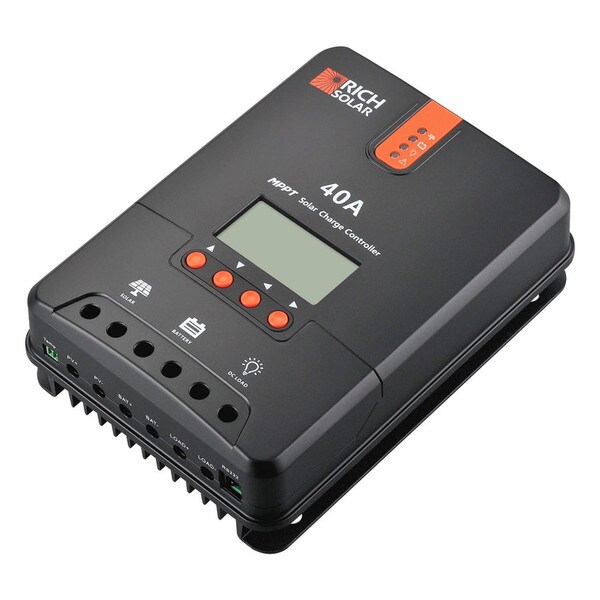

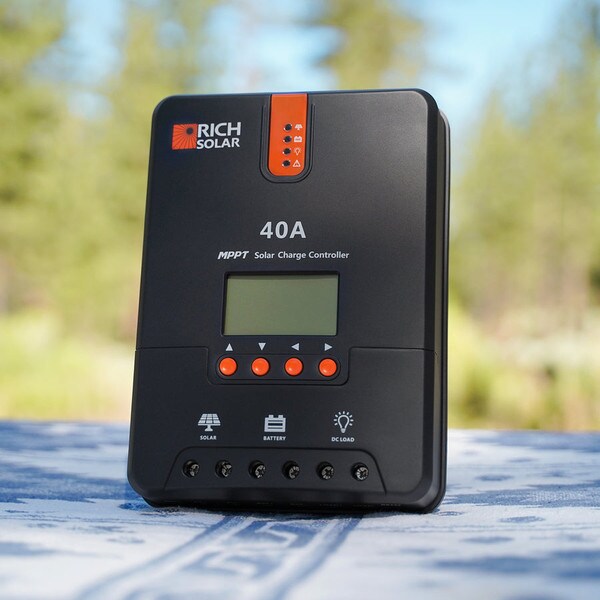

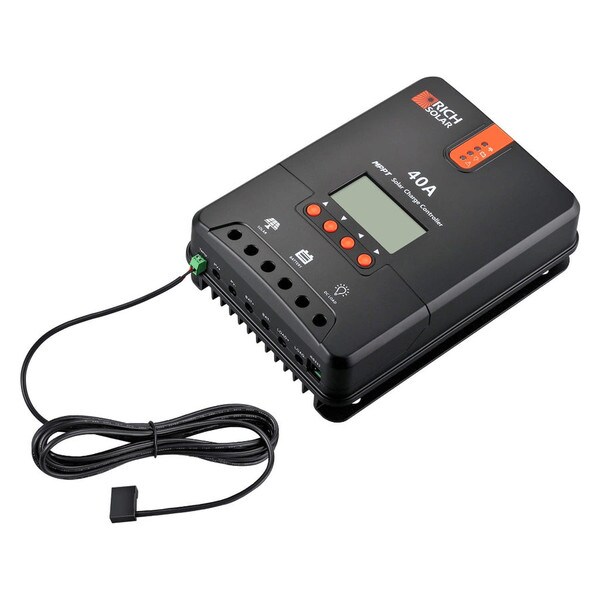

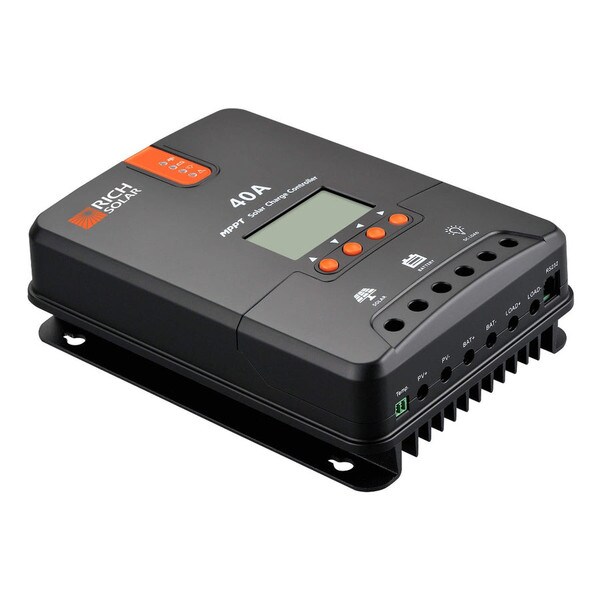

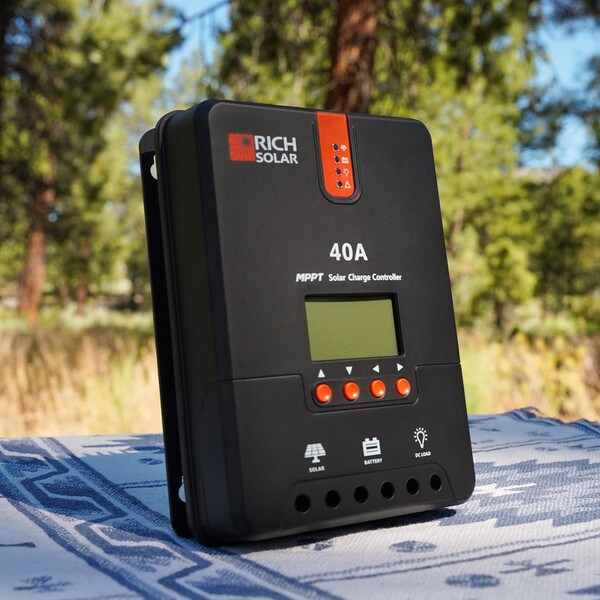

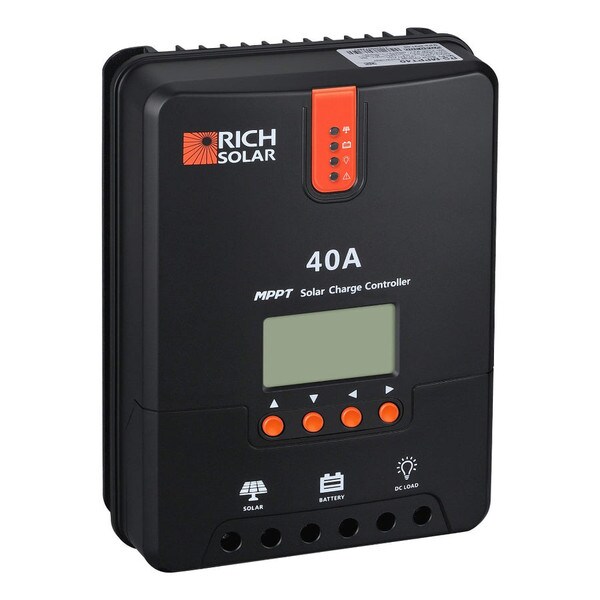

Rich Solar 40 Amp MPPT Solar Charge Controller

Feature Bullets

• Automatically detects 12V or 24V DC system voltages
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

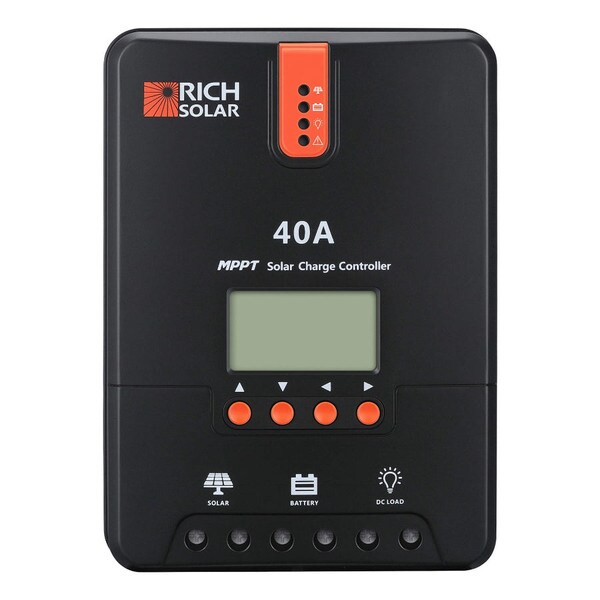

• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
• Features diverse load control; also capable of charging over-discharged lithium batteries

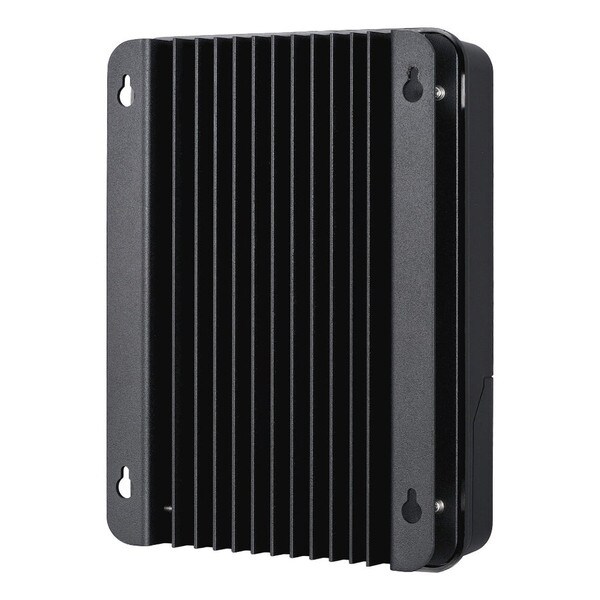

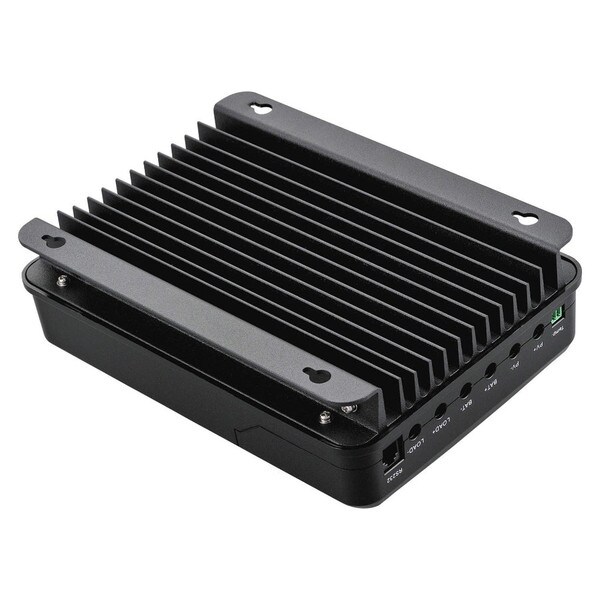

• Die-cast aluminum design allows for efficient heat dissipation

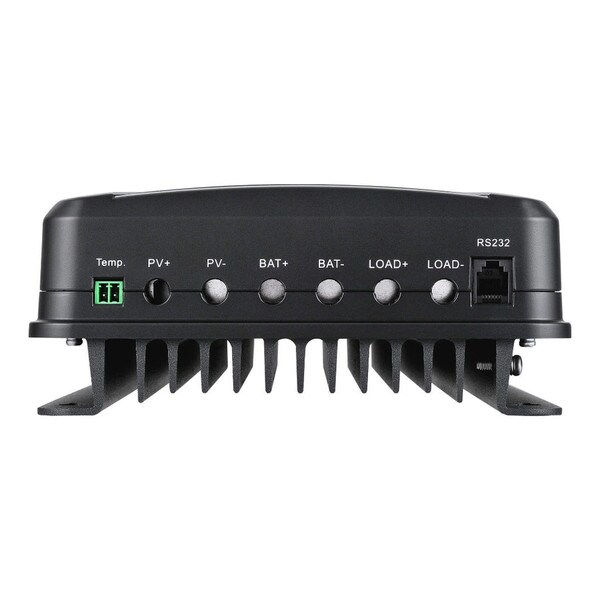

• RS232 port to communicate with BT-1 Bluetooth module

Specifications:

Type: MPPT
Operating Temperature: -35 to 45 deg C
Load Current Rating: 20 A
Maximum Battery Voltage: 32 V
Battery Current Rating: 40 A
Maximum PV Input Short Current: 50 A
Maximum Solar Voltage: 100 VDC Input
Discharge Circuit Voltage Drop: </=0.15 V

Charge Circuit Voltage Drop: </=0.26 V

Terminal Size: 8 AWG
Dimensions: 9.37 in x 6.81 in x 2.85 in
Standards: UL Listed, ETL Listed, PV Cycle, MCS, IEC, TUV
Weight: 4.41 lb
Warranty: 2 Years
