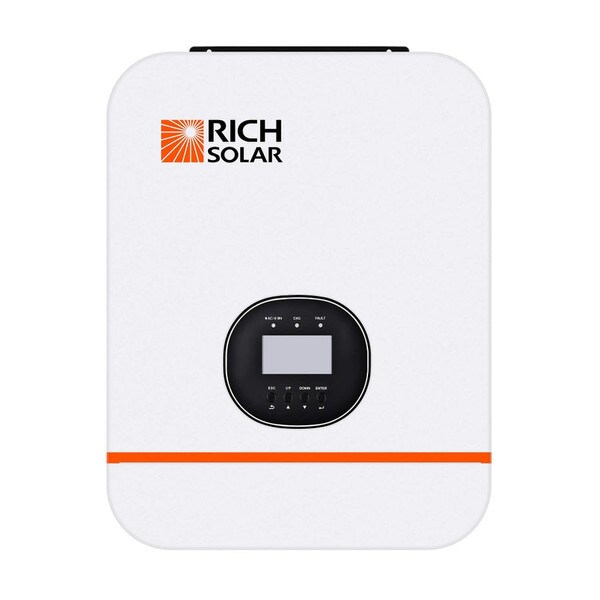

Rich Solar 3000 VA/3000 W Off-Grid Hybrid Solar Inverter

(0)No Reviews yet
$899.00
SKU: RS-H3048

Feature Bullets

  • Pure sine wave inverter

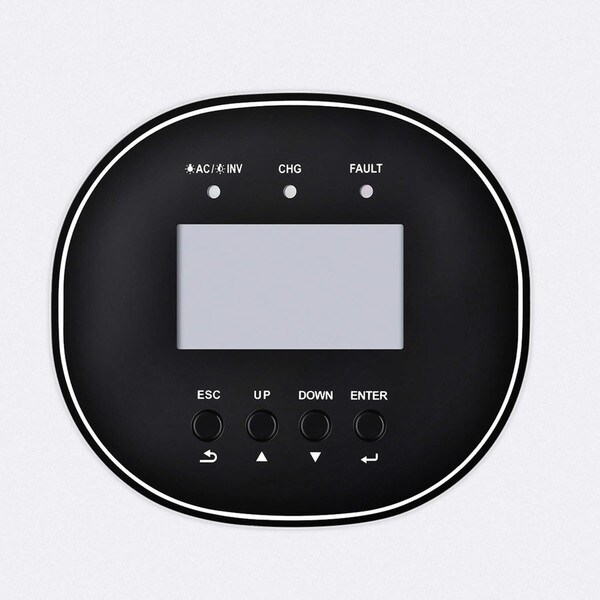

  • LED Display
  • Integrated MPPT charge controller
  • Configurable grid or solar input priority
  • Optional WIFI/ GPRS remote monitoring
  • Parallel for scalability
  • With CAN/RS485 for BMS communication
  • Configurable grid or solar input priority
  • Compatible to mains voltage or generator power
  • 48V Battery system
  • High frequency inverter with small size and light weight
  • Overload, short circuit and deep discharge protection
  • Parallel operation up to 6 unit

Specifications:

Length: 13.8 in
Width: 5.1 in
Height: 18 in
Input Voltage Waveform: Sinusoidal (Utility or Generator) - Line Mode, Pure Sine Wave - Solar Charger Input
Nominal Input Voltage: 120 VAC - Line Mode
Low Loss Voltage: 95 VAC +/-5 V (UPS), 65 VAC +/-5 V (Appliances) - Line Mode
Low Loss Return Voltage: 100 VAC +/-5 V (UPS), 70 VAC +/-5 V (Appliances) - Line Mode
High Loss Voltage: 140 VAC +/-5 V - Line Mode
High Loss Return Voltage: 135 VAC +/-5 V - Line Mode
Maximum AC Input Voltage: 150 VAC - Line Mode
Nominal Input Frequency: 50/60 Hz (Auto Detection) - Line Mode
Low Loss Frequency: 40 +/-1 Hz - Line Mode
Low Loss Return Frequency: 42 +/-1 Hz - Line Mode
High Loss Frequency: 65 +/-1 Hz - Line Mode
High Loss Return Frequency: 63 +/-1 Hz - Line Mode
Output Short-Circuit Protection: Circuit Breaker - Line Mode
Efficiency: >95% (Rated R Load, Battery Full Charged) - Line Mode, 98% - Solar Charger Input Mode
Transfer Time: 10 ms Typical, 20ms Max at Single <30ms at Parallel - Line Mode
Rated Output Power: 3000 VA/3000 W - Inverter Output Mode
Output Voltage Waveform: Pure Sine Wave - Inverter Output Mode
Output Voltage Regulation: 120 VAC +/-5% - Inverter Output Mode
Output Frequency: 50/60 Hz (Default) - Inverter Output Mode
Peak Efficiency: 93% - Inverter Output Mode, 93% Solar Input Charger Mode
Overload Protection: 5 s at >/=150% Load, 10 s at 110% Approx. 150% Load - Inverter Output Mode
Surge Capacity: 2 Rated Power For 5 Seconds - Inverter Output Mode
Nominal DC Input Voltage: 48 VDC - Inverter Output Mode
Cold Start Voltage: 46 VDC - Inverter Output Mode
Cold Start SOC (Li Mode): Default 30%, Low DC Cut-off SOC +10% - Inverter Output Mode
Low DC Warning Voltage: 44 VDC at Load <20%, 42.8 VDC at 20% /=50% - Inverter Output Mode
Low DC Warning Return Voltage: 46 VDC at Load <20%, 44.8 VDC at 20% /=50% - Inverter Output Mode
Low DC Cut-off Voltage: 42 VDC at Load <20%, 40.8 VDC at 20% /=50% - Inverter Output Mode
Low DC Cut-off Voltage (Li Mode): 42 VDC - Inverter Output Mode
Low DC Warning SOC (Li Mode): Low DC Cut-off SOC +5% - Inverter Output Mode
Low DC Warning Return SOC (Li Mode): Low DC Cut-off SOC +10% - Inverter Output Mode
Low DC Cut-off SOC (Li Mode): Default 20%, 5% Approx. 50% Settable - Inverter Output Mode
High DC Recovery Voltage: 56.4 VDC (C.V. Charging Voltage) - Inverter Output Mode
High DC Cut-Off Voltage: 60.8 VDC - Inverter Output Mode
No Load Power Consumption: <50 W - Inverter Output Mode
Charging Current (UPS) at Nominal Input Voltage: 30 A Default, Maximum 40 A - AC Outlet Charger Mode
AC Input Voltage : 120 VAC (AC Outlet Charger Mode)
Selectable Voltage Range: 95-140 VAC (For Personal Computers), 65-140 VAC (For Home Appliances) - AC Outlet Charger Mode
Frequency Range: 50/60 Hz (Auto Sensing) - AC Outlet Charger Mode
Flooded Battery: 58.4 VDC - AC Outlet Charger Mode
AGM/Gel Battery: 56.4 VDC - AC Outlet Charger Mode
Floating Charging Voltage: 54 VDC - AC Outlet Charger Mode
Overcharge Protection: 60 VDC - AC Outlet Charger Mode
Charging Algorithm - AC Outlet Charger Mode: 3-Step - AC Outlet Charger Mode
Maximum PV Array Power: 4500 W - Solar Charge Input
Maximum PV Array Open-Circuit Voltage: 145 VDC - Solar Charge Input
PV Array MPPT Voltage Range: 60-115 VDC - Solar Charge Input
Maximum PV Charging Current: 34 VDC - Solar Charge Input
Default Charging Current: 80 A - Solar Charge Input
Battery Voltage Accuracy: +/-0.3% - Solar Charge Input
PV Voltage Accuracy: +/-2 V - Solar Charge Input
Maximum Charging Current: 120 A - Solar Charge Input
Default Charging Current: 60 A - Solar Charge Input
Solar Charge Controller Type: MPPT
Standby Power Consumption: 2 W - Solar Charge Input
Operating Temperature: 0-55 deg C
Storage Temperature: -15 to 60 deg C
Humidity: 5-95% Relative Humidity (Non-Condensing)
Standards: CE, TUV, ETL Listed, PV Cycle, MCS, IEC, UL
Warranty: 2 Years
Weight: 25.4 lb
