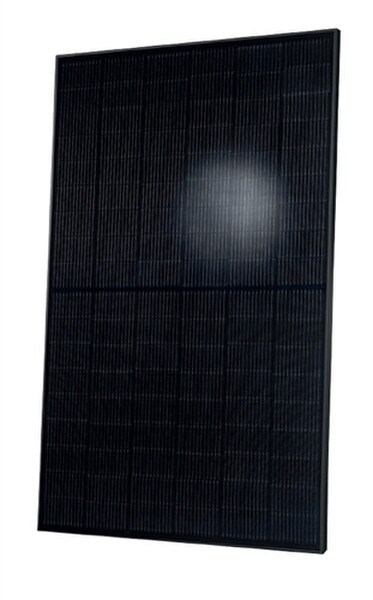

Hanwha Q Cells America 425 W Monocrystalline Solar Panel

The q.Tron blk m-g2+ 425 features cells powered by q.Antum neo technology. The n-type cells offer an integrated passivation layer and electrical interconnection functionality allowing for full area passivation and contact at the same time. This makes the cells superior to the p-type cells of previous models. When paired with the all-black aesthetics, the q.Tron blk m-g2+ 425 is a perfect choice for any project. It also delivers an overall efficiency of 21.8%. The number of cells contained within the module are 108 half-cells. The module is also backed by a 25-year product and performance warranty that guarantees at least 90.58% of the initial power after 25 years.The newest, high-performance q.Antum neo solar module, q.Tron blk m-g2+ 425 is the ideal solution for rooftop arrays on residential buildings thanks to a combination of the innovative cell technology q.Antum neo and cutting edge cell interconnection. Only q cells offers german engineering quality combined with long-term yield security using anti lid technology, anti pid technology, hot-spot protect and traceable quality tra.Q™.

Feature Bullets

• Q.Antum neo Technology with zero gap cell layout boosts module efficiency of 21.8%
• Q Cells is the first solar module manufacturer to pass the most comprehensive quality program in the industry: The new ""Quality Controlled PV"" of the independent certification institute TÜV Rheinland
• Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• High-tech aluminum alloy frame, certified for high snow (8100 Pa) and wind loads (3600 Pa)
• Inclusive 25-year product warranty and 25-year linear performance warranty

Specifications:

Length: 66.61 in
Width: 44.76 in
Depth: 1.26 in
Material: Aluminum Alloy Frame
Color: Black
Power Voltage: 32.98 V
Power Current: 12.88 A
Power Rating: 425 W
Open Circuit Voltage: 38.67 V
Short Circuit Current: 13.49 A
Voltage Rating: 1000 V
Cell Type: Monocrystalline
Number of Cells: 108
Operating Temperature: -40 to 185 deg F
Efficiency: 22.2%
Connection Type: MC4
Warranty: 25 Years
