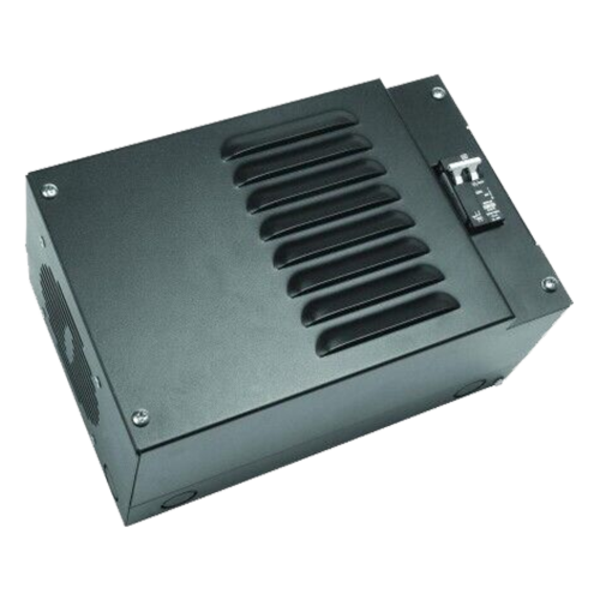

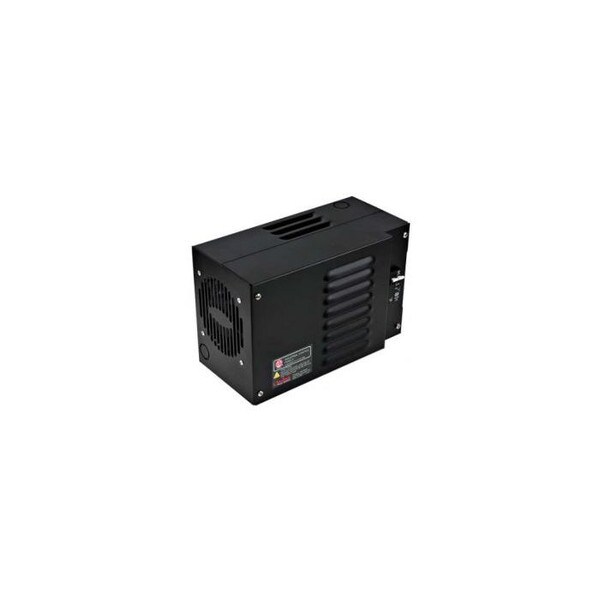

Outback Power 6kVA Autotransformer with enclosure and cooling fan (SKU Part Number PSX-240)

The OutBack PSX-240 (6 kVA) autotransformer can be used for 120 to 240 Vac step-up or 240 to 120 Vac step-down applications, generator balancing, general split-phase output balancing, or balancing the outputs of series-stacked inverters. Incorporating a transformer with 120 Vac / 30 Aac primary and secondary side, a temperature-activated cooling fan and a 25 Aac dual-pole breaker in a steel enclosure, the PSX-240 is ready to install in your custom application. Use for 120/240 Vac, 60 Hz systems only.

Feature Bullets

• For step-up, step-down, generator and split-phase output balancing or as a series stacked inverter to load balancing autoformer
• Designed to be housed within the FLEXware 500 or FLEXware 1000 AC enclosures
• 25 AC amp dual pole breaker and mounting hardware
• Use for 120/240 Vac 60 Hz systems only
• PSX-240, PSX-240-Relay, and FW-X240 models

Specifications:

Secondary Current: 30 A
Frequency Rating: 60 Hz
Dimensions: 6.25 in Height x 8 in Width x 12.5 in Length
Suitable For Use With: Step-up, Step-down, Generator & Split-phase Output Balancing Or As A Series Stacked Inverter To Load Balancing Autoformer
Maximum Continuous Rated Power: 6 kVA
Includes: Cooling Fan & a 25 A Dual Pole Breaker In a Steel Enclosure
Primary Voltage: 120 V
Weight: 37.7 lb
