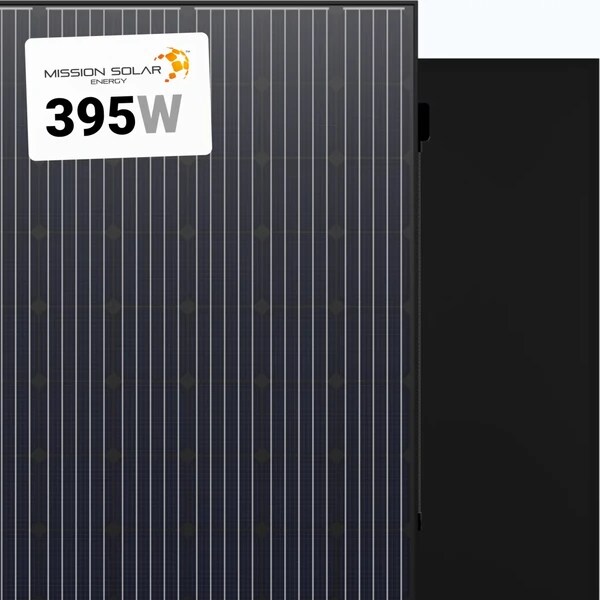

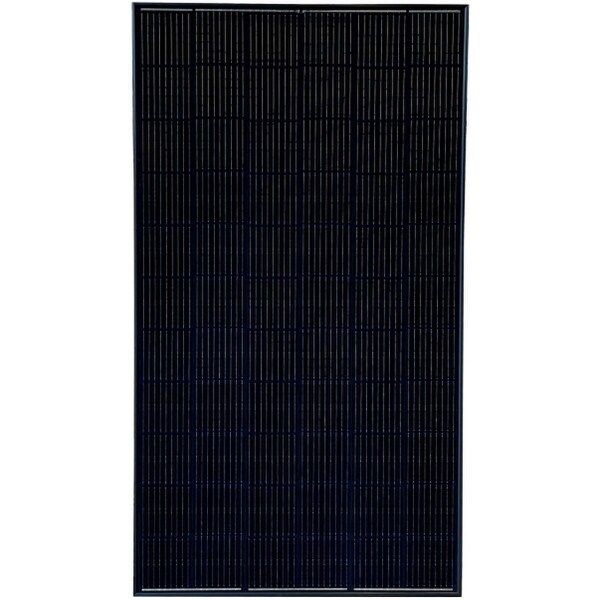

Mission Solar 395W 66 Cell 1000V BLK/BLK Solar Panel, MSE395SX9R

Mission Solar 395W 66 Cell 1000V BLK/BLK Solar Panel (MSE395SX9R)

Unlock the power of the sun with the Mission Solar 395W 66 Cell 1000V BLK/BLK Solar Panel, designed to deliver high-efficiency energy production for residential and commercial applications. Built with premium materials and cutting-edge technology, this panel ensures reliability and maximum output for years to come.

Key Features:

Power Output: 395W, delivering efficient energy production for various energy needs.

High Efficiency: Featuring 66 high-performance cells to maximize solar energy conversion.

Durable and Reliable: Designed for harsh weather conditions with robust black frames and tempered glass.

Maximum Voltage: 1000V for enhanced compatibility with various solar power systems.

Sleek Design: Black-on-black aesthetic blends seamlessly into modern solar installations, offering both functionality and style.

Enhanced Durability: Tested to withstand heavy snow loads and high wind speeds, making it ideal for diverse climates.

Long-Lasting: Backed by a solid manufacturer warranty for long-term performance.

The MSE395SX9R is a top choice for those looking to harness solar energy with a high-performing, aesthetically pleasing, and durable solution. Perfect for homes and businesses looking to reduce their carbon footprint while increasing energy independence.

Specifications:

Maximum Power (Pmax): 395 W
Voltage at Maximum Power: 36.99 V
Current at Maximum Power: 10.68 A
Open-Circuit Voltage (VOC): 45.18 V
Short-Circuit Current (ISC): 11.24 A
Panel Efficiency: 19.7%
Power Tolerance: + 3%
Operating Temperature: -40 to 85 deg C
Temperature Coefficient: -0.367%/deg C (Pmax), -0.259%/deg C (Voc), 0.033%/deg C (Isc)
Maximum System Voltage (Vmax): 1000 V
Fuse Rating: 20 A

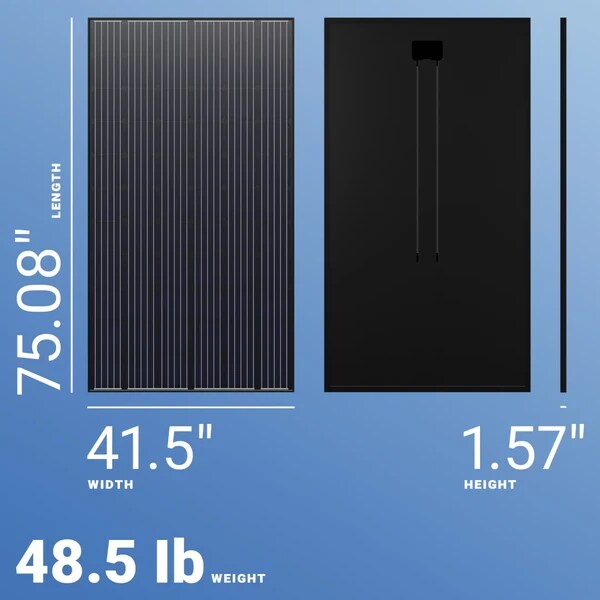

Dimensions: 1907 mm Height x 1054 mm Width x 40 mm Depth
Cell Type: P-type Mono-Crystalline Silicon
Cell Orientation: 66
Glass Type: Anti-reflection Coating, Tempered
Glass Thickness: 3.2 mm
Encapsulant Type: EVA
Frame Type: Anodized Aluminum
Junction Box Diodes: 3
Junction Box Protection Class: IP67
Connector Type: MC4
Cable Cross Section Size: 4 mm2
Cable Length: 1200 mm
Color: Black
Standards: UL, TUV, CEC, cuLus Listed
Weight: 48.5 lb
Warranty: 25 Years
