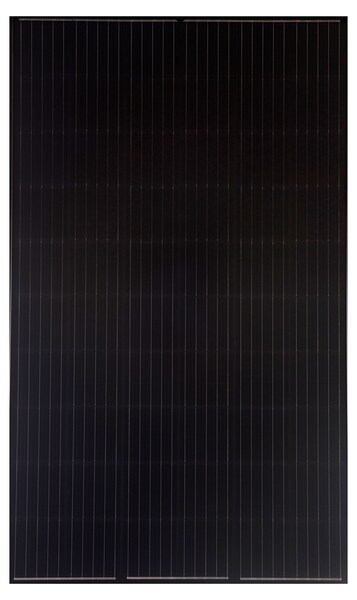

Mission Solar Energy MSE PERC 60 320 W STC/294.2 W PTC High Power PERC Rooftop Module Mono Solar Panel

Feature Bullets

• Certified Reliability - Tested to UL1703 & IEC standards. PID resistant. Buy American ACT (BAA) compliant for government projects as well as American Recovery and Reinvestment Act
• Superior Aesthetics - All-black design coupled with outstanding power output. Ideal for residential and commercial applications
• Best in Class Quality - Mission Solar Energy production lines are fully automated and include multiple quality checks throughout the production process
• Advanced Technology - PERC and 5 busbar drive >19.2% module efficiency, Ideal for residential applications
• Extreme Weather Resilience - 5631 Pa front and back load (117 psf) tested load to UL1703
• BAA Complaint for Government Projects - Buy American Act, American Recovery & Reinvestment Act

Specifications:

Type: High Power PERC Rooftop Module
Series/Model: MSE PERC 60
Length: 1676 mm
Width: 1008 mm
Height: 40 mm
Frame Depth: 40 mm
Cells Technology: P-Type Monocrystalline Silicon
Cell Dimensions: 158.75 mm
Number of Half Cells: 60 (6 x 10)
Maximum Power (Pmax): 320 W STC/294.2 W PTC
Maximum Power Voltage (Vmp): 34.22 V STC
Maximum Power Current (Imp): 9.351 A STC
Open-Circuit Voltage (VOC): 40.8 V STC
Short-Circuit Current (Isc): 10.028 A STC
Maximum System Voltage: 1000 VDC
Maximum Series Fuse Rating: 20 A
Module Efficiency: 19.24%
Frame Material: Anodized Aluminum
Front Glass: 3.2 mm (0.126 in) Tempered, Low-Iron, Anti-Reflective Coating
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000W/m2 STC/800W/m2 NOCT
Output Cables: PV Wire, 1 m (39.37 in.), 4 mm2/12 AWG
Connector Type: MC4
Fire Type: Type 1, Class C
Front Side Maximum Static Loading: 5631 Pa Tested to UL1703 Standard
Rear Side Maximum Static Loading: 5631 Pa Tested to UL1703 Standard
Hailstone Test: 25 mm at 23 m/s
Operating Temperature: -40 to 85 deg C
Temperature Coefficients of Pmax: -0.377%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/deg C
Temperature Coefficients of Isc: 0.039%/deg C
Nominal Operating Cell Temperature: 46.09 deg C (+/-2 deg C)
Junction Box: Protection Class IP67 Rated with 3 Bypass-Diodes
Power Output Tolerance: 0-3%
Encapsulant: Ethylene Vinyl Acetate (EVA)
Standards: IEC 61215 - 61730 - 61701 - Salt Mist, UL 1703 Listed, FSEC Certified, CEC, cULus Listed
Warranty: 12 Years Product, 25 Years Linear Performance
Weight: 44 lb
