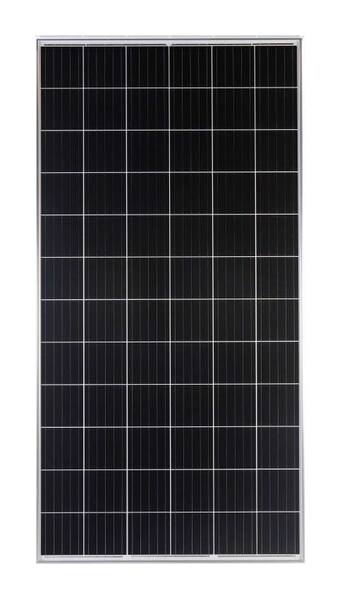

Mission Solar MSE390SR9S 390w Mono Solar Panel

Feature Bullets

• Certified Reliability - Tested to UL1703 and IEC standards. PID resistant. BAA Compliant for government projects
• Advanced Technology - PERC and 5 busbar drive >19.3% module efficiency. Ideal for all applications
• Excellent Weather Resilience - 5631 Pa front and back load (117 psf) tested load to UL1703
• BAA Complaint for Government Projects - Buy American Act, American Recovery & Reinvestment Act

Specifications:

Length: 1999 mm
Width: 1008 mm
Height: 40 mm
Cells Technology: P-Type Monocrystalline Silicon
Cell Dimensions: 158.75 mm
Number of Half Cells: 72 (6 x12)
Maximum Power (Pmax): 390 W STC/360.7 W PTC
Maximum Power Voltage (Vmp): 41.05 V
Maximum Power Current (Imp): 9.499 A
Open-Circuit Voltage (VOC): 48.96 V
Short-Circuit Current (Isc): 10.024 A
Maximum System Voltage: 1000 VDC or 1500 VDC
Maximum Series Fuse Rating: 20 A
Module Efficiency: 20%
Frame Material: Anodized Aluminum Alloy
Front Glass: 3.2 mm (0.126 in) Tempered, Low-Iron, Anti-Reflective Coating
Frame Color: Black
Backsheet Color: Black
Output Cables: PV Wire, 1.2 m (47.24 in), 4mm2/12 AWG
Connector Type: MC4 Compatible
Fire Type: Type 1, Class C
Front Side Maximum Static Loading: 5361 Pa (117 psf)Tested to UL1703 standard
Rear Side Maximum Static Loading: 5361 Pa (117 psf)Tested to UL1703 standard
Hailstone Test: 25 mm at 23 m/s
Operating Temperature: -40 to 185 deg F
Temperature Coefficients of Pmax: -0.375%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/deg C
Temperature Coefficients of Isc: 0.045%/deg C
Nominal Operating Cell Temperature: 46.43 deg C(+/-2 deg C)
Junction Box: Protection Class IP67 Rated with 3 Bypass-Diodes
Power Output Tolerance: 0-5 W
Encapsulant: Ethylene Vinyl Acetate (EVA)
Standards: UL 1703, IEC 61215-61730-61701 - Salt Mist, TUV, CSA, Cus, BAA, CuL
Warranty: 12 Years Product, 25 Years Linear Performance
Weight: 52 lb
