Magnum BP-S Backplate Single
Details

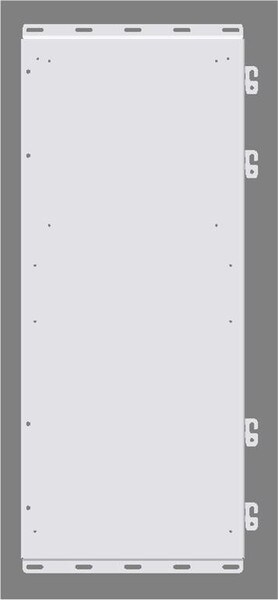

The BP-S is a single-piece, powder-coated steel back plate designed to accommodate a single MP or MPX enclosure, a Magnum inverter, and the inverter hood together; making the complete system appear more seamless. Designed with PEM (i.e. internally threaded) nuts, the backplate is shipped with 1/4-20 x 3/4 in Hex head bolts for easily mounting the MP enclosure, a Magnum inverter, and the inverter hood.
Feature Bullets
- This backplate also provides the necessary requirement to provide a noncombustible mounting surface required when mounting the inverters on a wall
- Safety - Noncombustible mounting surface
- Efficiency - Works with multiple Magnum enclosures
- User friendly - Easy installation
Specifications:
Type: Single
Material: Steel
Finish: Powder Coated
Dimensions: 39.3 in Height x 15.8 in Width x 0.75 in Depth
Suitable For Use With: 1-MPSL, 1-MPX Enclosure
Standards: UL Listed
Application: Magnum Energy Inverters
