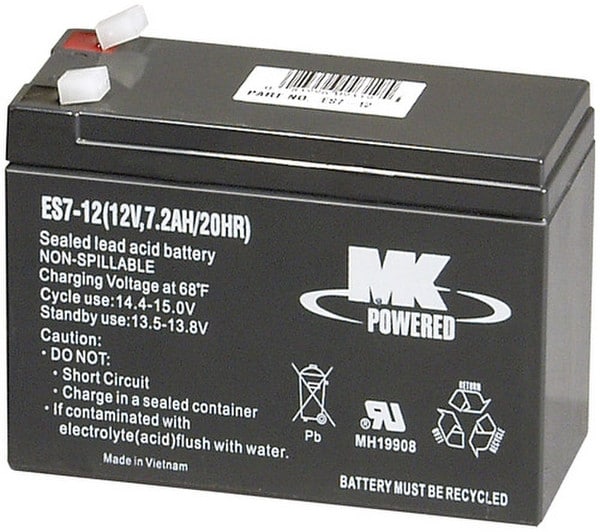

MK Powered® ES7 AGM Solar Battery

Sealed, maintenance-free, valve-regulated type AGM batteries are available in smaller size capacity ratings, perfect for use with solar applications for powering lighter loads such as telemetry, SCADA,remote monitoring, UPS systems, LED, and emergency lighting. Capacity discharge ratings are at the 20-hr. rate & operating temperature range is -15°C to 50°C. Rated non-spillable by DOT. 1-year warranty.

Feature Bullets

• Easy installation and high compatibility

Specifications:

Series/Model: ES7
Voltage Rating: 12 V
Nominal Capacity: 7.2 Ah at (0.36 A to 10.50 V) 20 hr, 6.84 Ah at (0.684 A to 10.50 V) 10 hr, 6.12 Ah at (1.224 A to 10.20 V) 5 hr, 4.08 Ah at (7.2 A to 9.60 V) at 1C, 2.88 Ah at (21.6 A to 9.60 V) at 3C
Dimensions: 5.94 in Length x 4.02 in Width x 3.7 in Height
Discharge Current: 108 A at 5 sec
Material: ABS Case
Internal Resistance: 22 mohm at 1 Khz
Operating Temperature: -15 to 40 deg C Charge, -15 to 50 deg C Discharge
Self Discharge Rate: 92% per 1 Month, 90% per 3 Month, 80% per 6 Month
Charge Voltage Rating: 14.4-15 V at Cycle, 13.5-13.8 V at Float
Terminal: F1 (Faston Tab 187) or F2 (Faston Tab 250)
Technology: Sealed Absorbed Glass Mat (AGM)
Temperature Coefficient: -5 mv/deg C/Cell at Cycle, -3 mv/deg C/Cell at Float
Standards: UL Listed
Warranty: 10 Years Limited
Weight: 5.28 lb
