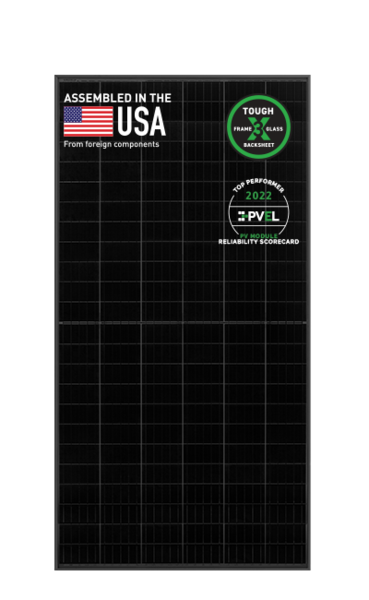

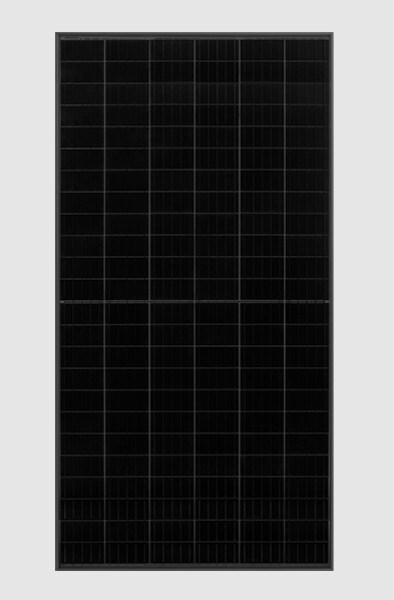

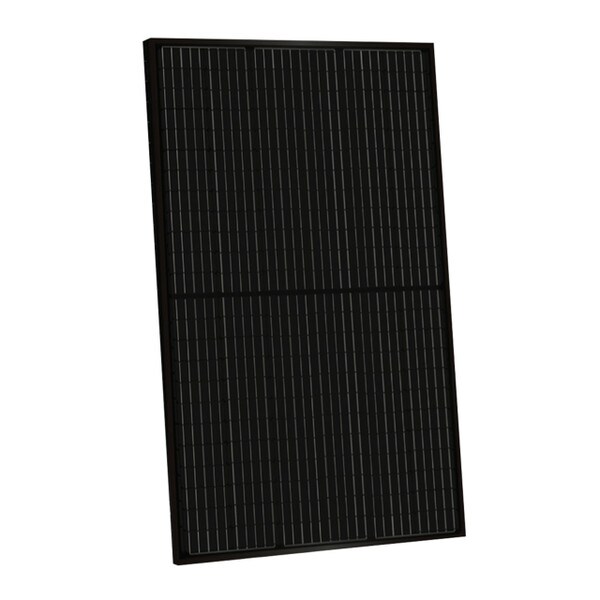

Jinko JKM390M-72HBL-V-D1 390W Black on Black 144 Half-Cell Mono Solar Panel

The EAGLE® Continental module includes our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 400W.

Feature Bullets

• Superior Aesthetics: Black backsheet and black frame create ideal look for residential applications
• Thick and Tough: Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass enables hail impact resistance at 50 mm, and thick backsheet for added durability
• Protected Against All Environments: Certified to withstand extreme weather
• Diamond Half-Cell Technology: World-record breaking efficient mono PERC half-cells deliver high power in a small footprint
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Staubli MC4 connector
• Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
• NYSE-listed since 2010, Bloomberg Tier 1 manufacturer
• Top performance in the strictest 3rd party labs
• Automated manufacturing utilizing artificial intelligence
• Vertically integrated, tight controls on quality
• Premium solar module factory in Jacksonville, Florida
• Positive power tolerance of 0~+3%

Specifications:

Series/Model: Eagle Continental
Length: 2008 mm
Width: 1002 mm
Height: 40 mm
Cells Technology: Monocrystalline (Mono) PERC Diamond
Cell Dimensions: 158.75 mm x 158.75 mm
Number of Half Cells: 144 (6 x 24)
Maximum Power (Pmax): 390 W STC/287 W NOCT/361.7 W PTC
Maximum Power Voltage (Vmp): 39.64 V STC/37 NOCT
Maximum Power Current (Imp): 9.84 A STC/7.75 A NOCT
Open-Circuit Voltage (VOC): 48.6 V STC/45.8 V NOCT
Short-Circuit Current (Isc): 10.46 A STC/8.45 A NOCT
Maximum System Voltage: 1500 VDC (UL & IEC)
Maximum Series Fuse Rating: 20 A
Module Efficiency: 19.38% STC
Frame Material: Anodized Aluminum Alloy
Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated, Low Iron, Tempered Glass
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 12 AWG, 1400 mm (55.12 in)
Connector Type: Staubli MC4 Series
Fire Type: Type 1
Pressure Rating: 5400 Pa (Snow) & 2400 Pa (Wind)
Hailstone Test: 50 mm Hailstones at 35 m/s
Operating Temperature: -40 to 85 deg C
Cell Temperature: 25 deg C STC
Ambient Temperature: 20 deg C NOCT
Temperature Coefficients of Pmax: -0.35%/deg C
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/deg C
Temperature Coefficients of Isc: 0.048%/deg C
Nominal Operating Cell Temperature: 45 +/-2 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: IP68 Rated
Standards: ISO9001:2008 Quality Standards, ISO14001:2004 Environmental Standards, IEC61215, IEC61730 Certified, ISO 45001 2018 Occupational Health & Safety Standards, UL1703/61730 Certified, ISO-Plant, IEC, PV Cycle, TUV, CE
Warranty: 25 Years Product & 25 Years Linear Power
Weight: 49.61 lb
Application: Residential
