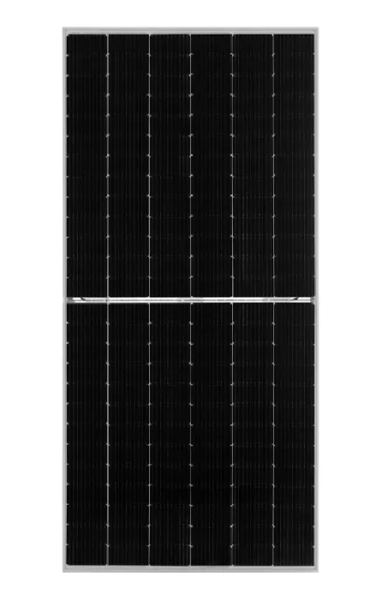

Jinko Eagle 430 W Bifacial Half Solar Panel

The Eagle 72HM G4B 430W solar panel by Jinko Solar features multi-busbar half cell technology and high-efficiency half cut solar cells that deliver high power in a small footprint. The bifacial cell architecture allows for backside bonus and increased lifetime power yield. The light-weight design, with the use of a transparent backsheet, enables easy installation and low BOS cost. This solar panel is also designed to be shade tolerant with a twin array design for continued performance even with shading from trees or debris.

Feature Bullets

• Multi Busbar Half Cell Technology: High efficiency half cut solar cells deliver high power in a small footprint
• Bifacial Power Gain: Bifacial cell architecture allows backside bonus and more lifetime power yield
• Light-Weight Design: Use of transparent backsheet allows for easy installation and low BOS cost
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Protected Against All Environments: Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
• 30-Year linear power warranty

Specifications:

Length: 2096 mm
Width: 1039 mm
Depth: 40 mm
Material: Anodized Aluminum Alloy Frame, Tempered Glass Front Cover
Color: Black Cell, Silver Frame
Power Voltage: 40.61 V
Power Current: 10.59 A
Power Rating: 430 W
Open Circuit Voltage: 48.76 V
Short Circuit Current: 11.28 A
Voltage Rating: 1500 Vdc
Cell Type: Bifacial Half
Number of Cells: 144 (2 x 72)
Operating Temperature: -40 to 85 Deg C
Efficiency: 19.8%
Enclosure Rating/IP Rating: IP68
Warranty: 30 Years
Weight: 56.15 lb
Standards: UL, cULuS, IEC, TUV Certified CE
