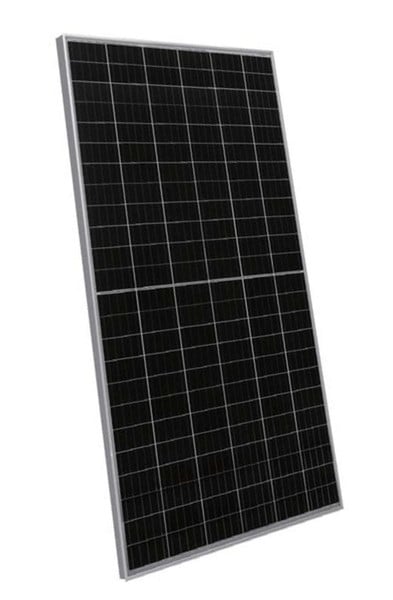

Jinko Solar JKM410M-72HL-V 144-Half Cell Solar Panel

The Eagle G2 modules consist of our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 415 W. Eagle G2 modules are available at up to 1500 volts, which help reduce balance-of-system costs. All are backed by a 25-year linear power warranty.

Feature Bullets

• Diamond Half Cell Technology: World-record breaking efficient mono PERC half cut solar cells deliver high power in a small footprint
• Thick and Tough: Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass, and thick backsheet for added durability
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Power Boost in Cloudy Conditions: A special film diffuses light, boosting performance even with shading by trees or debris
• Protected Against All Environments: Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow (45mm Hailstones at 29m/s)
• High Voltage: UL and IEC 1500V certified; lowers BOS costs and yields better LCOE
• Strength and Durability: Certified for high snow (5400Pa) and wind (2400 Pa) loads
• PID Free: Reinforced cell prevents potential induced degradation
• 10 Year product warranty, 25 year linear power warranty

Specifications:

Length: 2008 mm
Width: 1002 mm
Depth: 40 mm
Material: Anodized Aluminum Alloy Frame, Tempered Glass Front Cover
Color: Black Cell, Silver Frame
Power Voltage: 42.3 V
Power Current: 9.69 A
Power Rating: 410 W
Open Circuit Voltage: 50.4 V
Short Circuit Current: 10.6 A
Voltage Rating: 1500 Vdc
Cell Type: Mono PERC Diamond
Number of Cells: 144 (6 x 24)
Operating Temperature: -40 to 85 Deg C
Efficiency: 20.38%
Enclosure Rating/IP Rating: IP67
Warranty: 10 Years
Weight: 49.6 lb
Standards: UL, cULuS, IEC, TUV Certified CE
