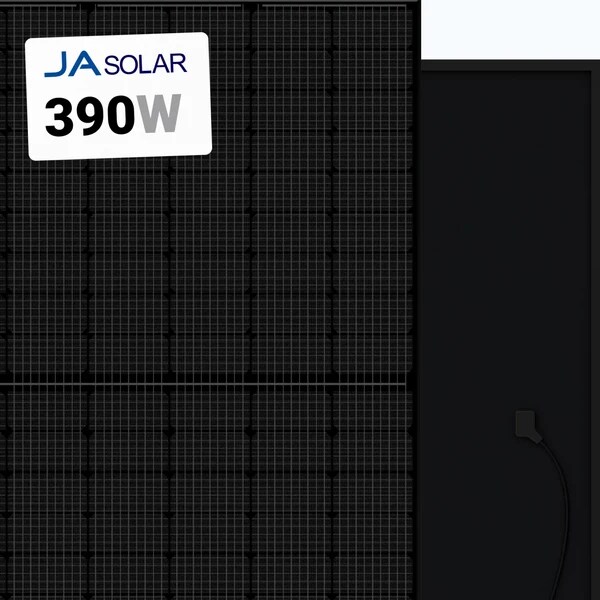

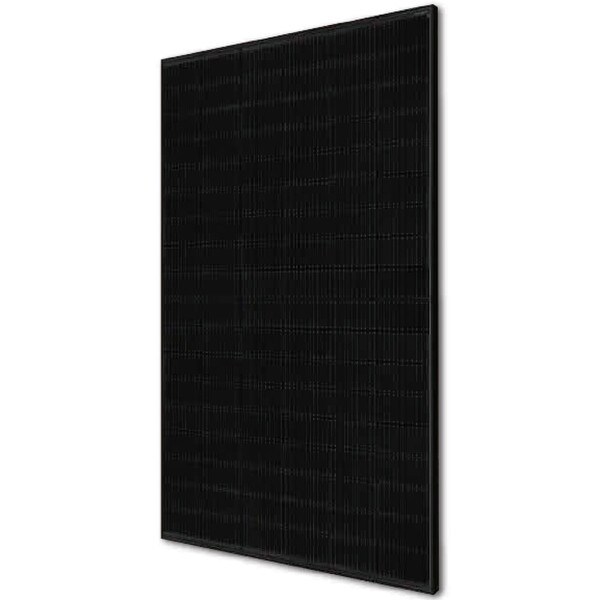

JA Solar 390w Mono PERC 54 cell 1500V module, 1200mm cables with MC4 connectors

JA Solar JM5-S31-390 1500 V 390 W Mono solar module. JA S31 Series modules are assembled with 11BB PERCIUM cells in half cut configuration. This cell configuration shows improved output, better temperature coefficient and reduces the impact of shade on overall module output.

Specifications:

Size: 67.8 in x 44.65 in x 1.18 in
Power Current: 12.73 A
Power Rating: 390 W
Open Circuit Voltage: 36.85 V
Short Circuit Current: 13.61 A
Voltage Rating: 1500 V
Cell Type: Mono
Number of Cells: 108
Operating Temperature: -40 to 85 deg F
Efficiency: 20%
Connection Type: MC4
Cable Length: 300/400 mm Portrait, 1300 mm Landscape
Tolerance: 0/+5W
