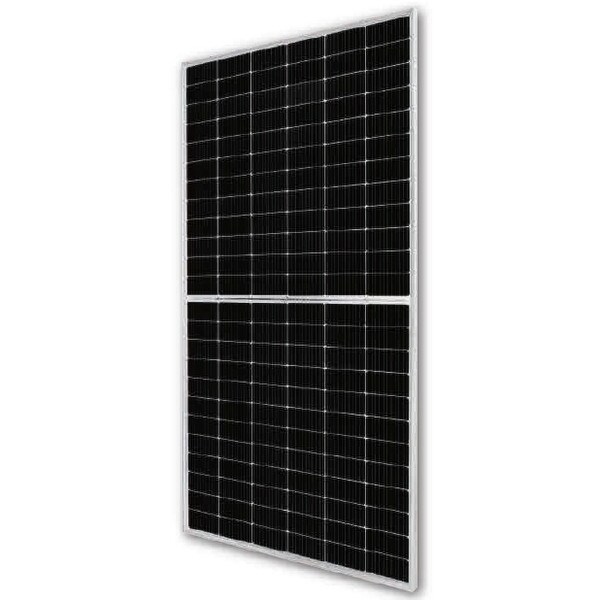

JA Solar 1500 V 535 W Mono Solar Module

(0)No Reviews yet
SKU: JA-JAM72-D30-535MB
WEIGHT: 69.67 lb
DIMENSION: 90 x 44.65 x 1.38 in

This item is IN STOCK

Current Stock: 590

Assembled with multi-busbar 11 busbar bifacial PERC cells and half cut configuration, these double glass modules have the capability of converting the reflected light from the rear side of the module together with the front side to provide higher output power, lower temperature coefficient, less shading loss; as well as enhanced tolerance for mechanical loading.


Size: 89.96 in x 44.65 in x 1.38 in
Power Current: 12.9 A
Power Rating: 535 W
Open Circuit Voltage: 49.45 V
Short Circuit Current: 13.79 A
Voltage Rating: 1500 V
Cell Type: Mono
Number of Cells: 144
Operating Temperature: -40 to 85 deg F
Efficiency: 20.6%
Connection Type: QC4
Fuse Amperage Rating: 30 A
Cable Length: 300/400 mm Portrait, 1300 mm Landscape
Tolerance: 0/+5W
