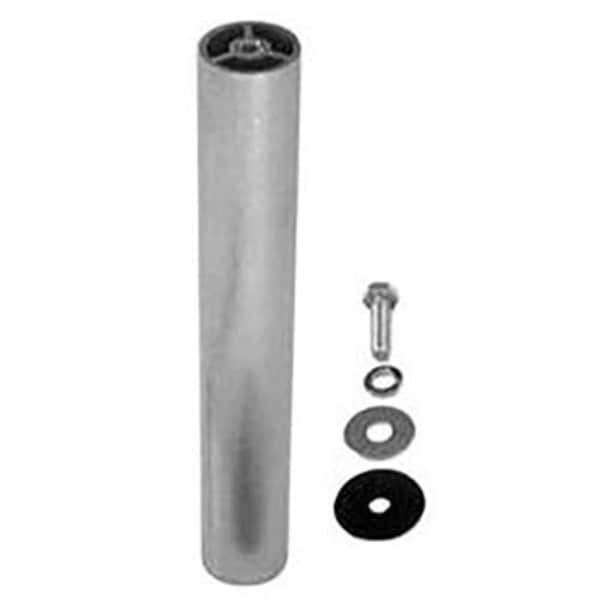

IronRidge QBase 11.5" Post (incl. post to rack h/w), Mill (Priced as each)

(0)No Reviews yet
SKU: IR-QM-QBP-11.5-M1

The QBase Mount is a strong and versatile base-and-post mounting system with various post height options. The components are available separately and combined to build a custom solution that best suits your project. (Formerly sold as QMLSH and QMQDM kits or BTO).The QBase Mount base is made of super-strong cast aluminum, with four gussets to support 8 post heights from 3.25 to 17.5"-for a wide variety of roof types and installations. QBase Mount's versatility and superior strength will provide decades-long confidence.QBase Mount components are sold as separate SKUs so you can mix and match parts, tailoring your system to your exact specifications. Whether mounting onto the deck or a structural member, QBase Mount has you covered. Just procure the appropriate type and quantity of fastener for your application and install.

Feature Bullets

  • Base - The base goes with any post height, Super-strong cast aluminum, with gussets, Includes base-to-post hardware
  • Post - 8 post heights available, from 3.25 -17.5 in, For net height, add 1/2 in to post height, Includes post-to-rack hardware
  • L-Feet - Multiple standard L-Foot options, 5 & 10 deg tilted L-Foot options (mill only), Compatible with XR Rail & Qrail
  • Note - When utilized as a rafter-attached mount, two 5/16"x3" stainless steel lag screws with a minimum of 2 in embedment into the structural member are recommended. For non-rafter attached applications, consult with a Structural Engineer to specify the type, size, and quantity of roof screws
  • 2 or 4-hole mounting options - four mounting hole options and four gussets that substantially improve load capacity
  • Attaches to deck or structural member - consult structural engineer for deck attachment. Use 5/16 in x 3 in stainless steel lags on rafters
  • Compatible with most roof materials - Use on TPO, PVC, EPDM, built-up roofing, comp shingle, tile, shake, slate, and metal shingle roofs
  • 8 available post heights - Has LA Research Reports (LARR #26194) and florida product approval (FL #29846)
  • Products come with 25 year warranty - Guaranteed to be free of defects in materials and manufacturing that impair proper usage
  • Priced as each


Series/Model: QM
Material: 300 Series Stainless Steel
Finish: Mill
Suitable For Use With: TPO, PVC, EPDM, Built-up Roofing, Comp Shingle, Tile, Shake, Slate, & Metal Shingle Roof
Height: 11.5 in
Includes: Post to Rack Hardware
Standards: CE, IEC, ETL Listed
Warranty: 25 Years
Weight: 1 lb
