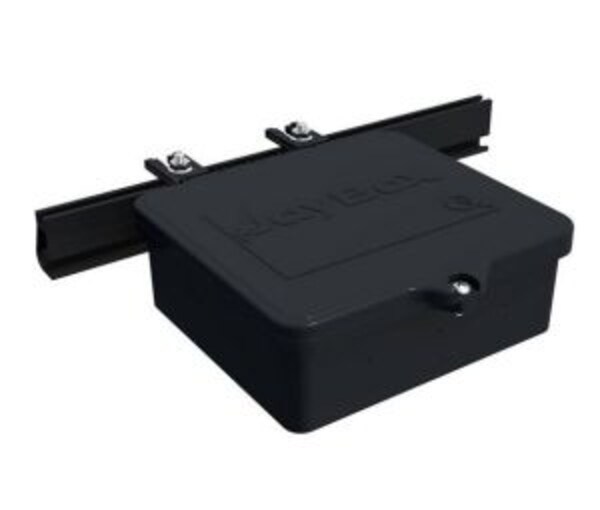

IronRidge 1500 V Rail Mounted Jay Box

JayBox™ is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project-with ample space to shelter up to 4 module strings. The box is UL-listed, NEMA-3R-rated, and supports up to 1500-volt systems. It is made of a NORYL™ resin, known for its long-lasting UV-resistance and impact strength. JayBox™ is available in two options: Roof Mount and Rail Mount-so you can keep all of your solar wires nested and protected.

Feature Bullets

• Two Mounting Types JayBox™ Roof Mount comes with deck screws and a flashing, while JayBox™ Rail Mount comes with rail hangers
• Trusted Waterproofing JayBox™ Roof Mount utilizes QuickMount's Elevated Water Seal Technology® that has passed the TAS-100 wind-driven rain test
• Hassle-Free Lid A detachable, hinged lid reduces interference-staying open and out of the way even on up to 70 deg roof slopes
• Captive Hardware Once the lid is closed, the single, pre-installed, captive screw and nut keeps it snug and secure
• Drilling Guides The enclosure has easy-to-drill guides on three sides of the box as well as inside for directing conduit from the attic
• Durable NORYL™ Resin JayBox™ is fabricated from SABIC's NORYL™ resin, giving it greater strength and resistance to UV radiation. It is well known for its lasting stability and performance in extreme environments
• 6 screws are also provided for attaching DIN rail and a grounding bar inside

Specifications:

Wire Size: 12-10 AWG Input, 12-8 AWG Output
Maximum System Voltage (Vmax): 1500 V
Maximum Short-Circuit Current (ISC): 100 A
Maximum Current Per Circuit (String): 30 A
Maximum Number of Input Circuits: 4
Ambient Operating Conditions: -40 to 75 deg C
Enclosure Rating: Type 3R
Equipment Grounding Conductor: 10-6 AWG
Material: NORYL™ Resin
Color: Black
Mounting Type: Rail
Includes: (1) Rail Hanger, Thread Forming Screws, J-Box Housing, #8-16 X 3/8 in Phillips Drive Pan Head, 1/4-20 UNC-2A Pan Head Phillips Screw, 7 in Din Rail, 4 Terminals Ground Bar Kit
Standards: CE Certified, cETLus Listed, ETLeu, IEC Certified
Warranty: 25 Years
