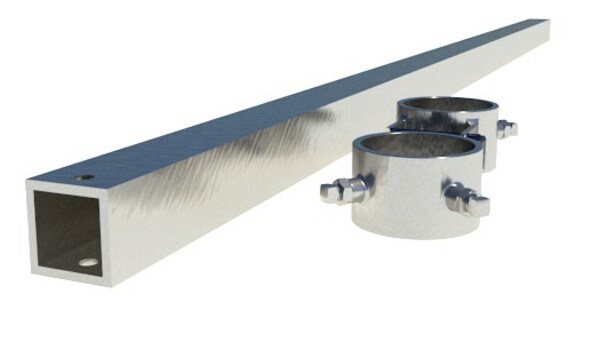

IronRidge 70-0205-CBR SGA Brace Assembly Kit

The brace assembly kit is optional for installations that require extra support. The Kit includes the brace, sleeves, and hardware for installation between one north and south pair of support legs. This optional assembly kit is for installations that require extra support. This Diagonal Brace Kit includes the brace, sleeves, and hardware for installation between one north and south pair of support legs.

Feature Bullets

• Safety - all components evaluated for superior structural performance. UL 2703 system eliminates separate module grounding components
• Efficiency - pre-stamped engineering letters available in most states. Online software makes it simple to create, share, and price projects
• User friendly - lightweight and compatible with industry-standard attachments

Specifications:

Series/Model: SGA
Brace Tube Length: 105 in
Brace Tube Width: 2.5 in
Material: Aluminum
Finish: Mill
Color: Silver
Standards: UL Listed
Includes: (1) Square Brace Tube CBR, (2) Pipe Brace Sleeve, (4) 1/2-13 HDG Steel Jam Nut, (4) 1/2-13 x 1.5 Cup Point Set Screw, (2) 1/2-13 Hex Galvanized Bolt, (4) 1/2 in Galvanized Flat Washer, (2) 1/2 in Galvanized Lock Spring Washer, (2) 1/2-13 Galvanized Hex Nut
Warranty: 20 Years Limited
