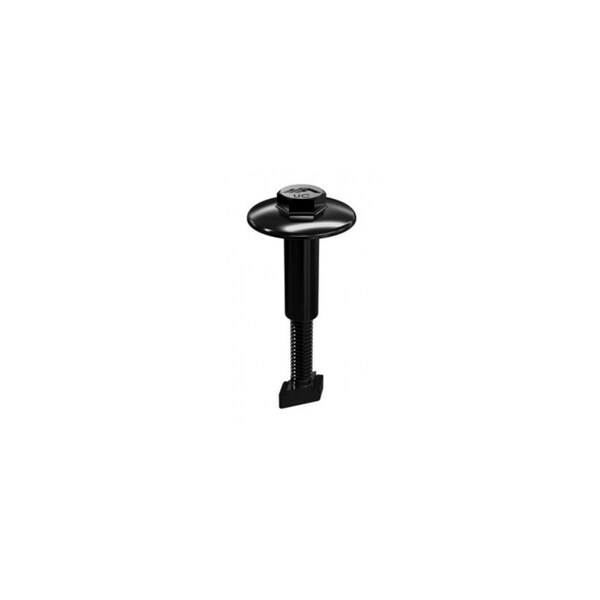

IronRidge Universal Module Clamp | Black (SKU Part Number UFO-CL-01-B1)

The IronRidge UFO (Universal Fastening Object) is a single-size, single-piece fastener, built to quickly and securely bond any solar modules to XR Rails. It comes fully-lubricated and fully-assembled, and it looks just as good as it performs. When combined with a Stopper Sleeve, the UFO functions as an end clamp. It comes in two finishes: Clear and Black. The IronRidge universal fastening object (UFO) makes installing your rail mount system easier, faster, and less expensive. The clamps stand up on their own during installation which means it's no longer a two main job to fasten the modules into place. You simply place the UFO clamps where you need them and they're ready to tighten down to the module. It's no longer necessary to have someone adjust the clamps while another person positions the modules into place. The UFO clamps have a larger area that makes contact with the module frame which makes the installation stronger and more secure. The included bonding washer makes a solid electrical connection to the module frame and meets UL 2703 requirements. The T-bolt section of the clamp bonds to the rail, which creates a parallel connection between the module frame and the rail. The universal barrel bolt can be used on module frames with a height between 30 to 46 mm. In addition to functioning as a mid clamp, the UFO can also be used as an end clamp when paired with the correct size stopper sleeve.

Feature Bullets

• Safety - All components evaluated for superior structural performance. UL 2703 system eliminates separate module grounding components
• Efficiency - Pre-stamped engineering letters available in most states. Online software makes it simple to create, share, and price projects
• User Friendly - Lightweight and compatible with industry-standard attachments

Specifications:

Type: Universal

Size: 1 in x 1/2 in x 2 in
Finish: Black
Material: 300 Series Stainless Steel

Suitable For Use With: Universal Fastening Object Module
Standards: UL Listed
Warranty: 25 Years Limited
