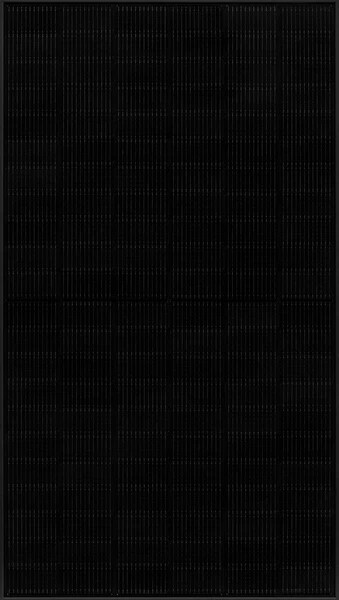

Hanwha Q Cells Q.PEAK DUO BLK ML G10+ 405W Mono Solar Panel

With a higher efficiency rate than previous series, the Q.PEAK DUO BLK ML-G10+ is the first 400W module for the residential market and takes high performance to a new level. The G10+ module utilizes Q CELLS' zero gap Q.ANTUM DUO Z technology to boost module efficiency up to 21.1%. The module is also backed by a 25-year product and performance warranty that guarantees at least 86% of nominal power up to 25 years.

Feature Bullets

• Breaking the 20 % efficiency barrier: Q.ANTUM DUO Z Technology with zero gap cell layout boosts module efficiency up to 21.1 %
• Innovative all-weather technology: Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Extreme weather rating: High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• The most thorough testing programme in the industry: Q CELLS is the first solar module manufacturer to pass the most comprehensive quality programme in the industry: The new "Quality Controlled PV" of the independent certification institute T.V Rheinland
• Enduring high performance: Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• A reliable investment: Inclusive 25-year product warranty and 25-year linear performance warranty

Specifications:

Series/Model: Q.Peak DUO
Length: 1879 mm
Width: 1045 mm
Height: 32 mm
Cells Technology: Monocrystalline Q.Antum Solar Half
Number of Half Cells: 132 (6 x 22)
Maximum Power (Pmax): 405 W STC/303.9 W NOCT
Maximum Power Voltage (Vmp): 38.22 V STC/36.39 V NOCT
Maximum Power Current (Imp): 10.6 A STC/8.35 A NOCT
Open-Circuit Voltage (VOC): 45.27 V STC/42.69 V NOCT
Short-Circuit Current (Isc): 11.08 A STC/8.93 A NOCT
Maximum System Voltage: 1000 (IEC)/1000 (UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: >/=20.6%
Frame Material: Anodized Aluminum
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 4 mm2 Solar Cable, (+) >/=72.04in (1830 mm), (-) >/=72.04in (1830 mm)
Connector Type: Staubli MC4, IP68
Fire Type: Type 2
Maximum Design Load (Push/Pull): 3600/2660 Pa
Maximum Test Load (Push/Pull): 5400/4000 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C +/-2% STC
Temperature Coefficients of Pmax: -0.34%/deg K
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/deg K
Temperature Coefficients of Isc: 0.04%/deg K
Nominal Operating Cell Temperature: 43 +/-3 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Standards: UL61730-1 & UL61730-2, CE-Compliant, Quality Controlled PV - TÜV Rheinland, IEC 61215:2016, IEC 61730:2016, U.S. Patent No. 9,893,215 (Solar Cells), DVE, Cus, CE, TUV, Class II
Warranty: 25 Years Product, 25 Years Linear Performance
Weight: 22 kg
Application: Rooftop Arrays on Residential Buildings
