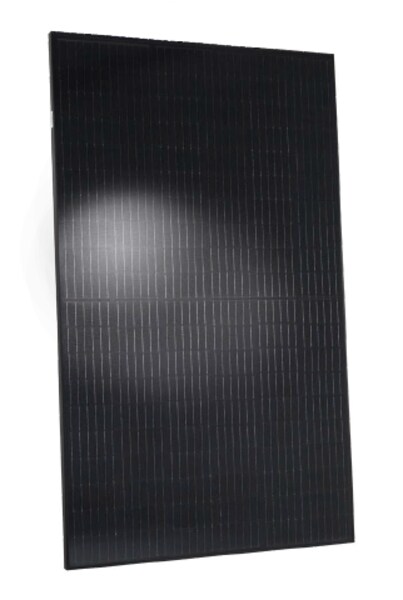

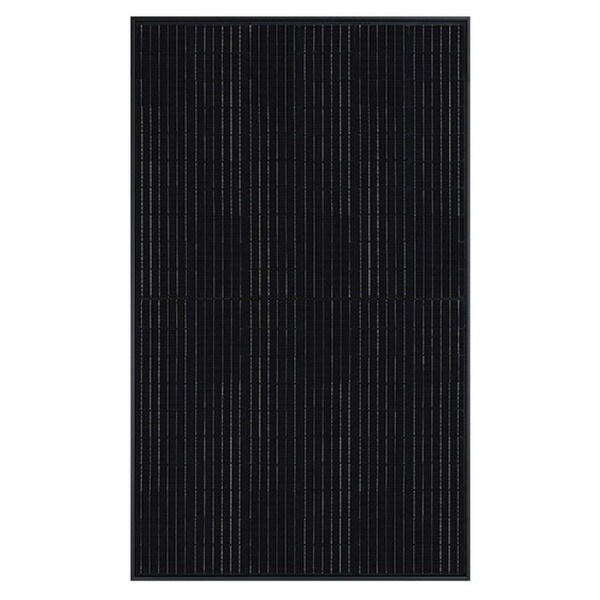

Hanwha Q Cells Q.PEAK DUO-G6+ 335 335w Mono Solar Panel

This high-efficiency module is backed by Q.Cells trademark Q.ANTUM cell technology, which is what powers their solar panels to produce a higher energy yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5%.

Feature Bullets

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5 %
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• A Reliable Investment - Inclusive 25-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology

Specifications:

Series/Model: Q.Peak DUO
Length: 1740 mm
Width: 1030 mm
Height: 32 mm
Cells Technology: Monocrystalline Q.Antum Solar Half
Number of Half Cells: 120 (6 x 20)
Maximum Power (Pmax): 335 W STC/250.7 W NOCT
Maximum Power Voltage (Vmp): 33.62 V STC/38.1 V NOCT
Maximum Power Current (Imp): 9.97 A STC/7.84 A NOCT
Open-Circuit Voltage (VOC): 40.41 V STC/38.1 V NOCT
Short-Circuit Current (Isc): 10.47 A STC/8.43 A NOCT
Maximum System Voltage: 1000 (IEC)/1000 (UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: >/=18.7%
Frame Material: Anodized Aluminum
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 4 mm2 Solar Cable, (+) >/=45.3in (1100 mm), (-) >/=45.3in (1100 mm)
Connector Type: Staubli MC4, IP68
Fire Type: Class C (IEC)/Type 2 (UL)
Maximum Design Load (Push/Pull): 3600/2667 Pa
Maximum Test Load (Push/Pull): 5400/4000 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C +/-2% STC
Temperature Coefficients of Pmax: -0.36%/deg K
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/deg K
Temperature Coefficients of Isc: 0.04%/deg K
Nominal Operating Cell Temperature: 43 +/-3 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Standards: UL 1703, VDE Quality Tested, IEC 61215:2016, IEC 61730:2016, Application Class II, DVE, CE, CSA/Cus
Warranty: 25 Years Product, 25 Years Linear Performance
Weight: 19.9 kg
Application: Rooftop Arrays on Residential Buildings
