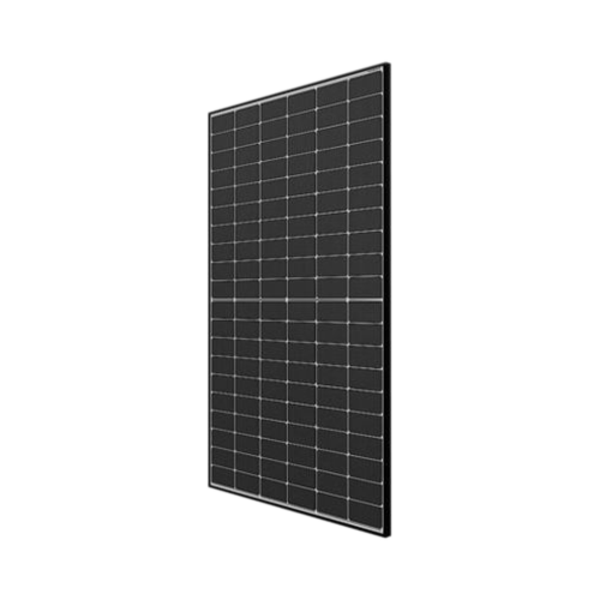

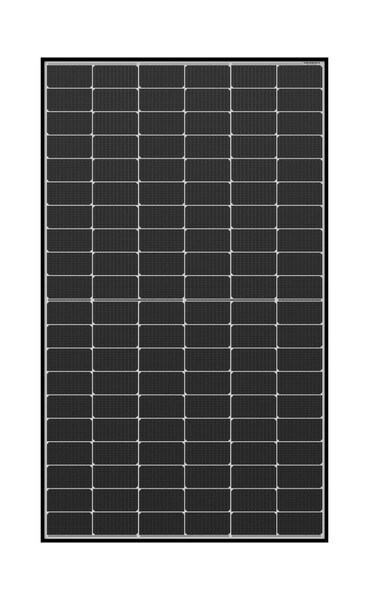

Hanwha Q Cells Q.Peak DUO 325 W STC/243.4 W NOCT/292.2 W PTC Mono Solar Panel

The Q.PEAK DUO-G7 is Hanwha QCells monocrystalline solar module with power classes of up to 335 Wp and an excellent efficiency of up to 20.2 %. Q.PEAK DUO-G7 solar modules provide excellent and reliable yields thanks to the new generation of the unrivalled Q.ANTUM DUO solar cell concept, which is now combined with state-of-the-art circuitry and 12-busbar cell design. The black Q.ANTUM DUO half-cells in the Q.PEAK DUO-G7 lend even the most exclusive building a refined look. Our Q CELLS yield security guarantees reliable electricity production over the entire life cycle of your solar installation. Thanks to integrated Q CELLS Anti LID Technology preventing light-induced degradation (LID), which can reduce system performance drastically - or almost totally - the Q.PEAK DUO-G7 eliminates slumps in yield. In contrast, conventional monocrystalline solar modules without Anti LID Technology lose much of their initial power through normal insolation. The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G7 this is not the case, thanks to Anti LID Technology.

Feature Bullets

• Q. Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.2%
• Innovative All-Weather Technology- Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High Performance - Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC
• A Reliable Investment - Inclusive 12-year product warranty and best in class 25-year performance guarantee
• State of the Art Module Technology - Q. ANTUM DUO combines cutting edge cell separation and innovation wiring with Q.ANTUM technology

Specifications:

Series/Model: Q.Peak DUO
Length: 1685 mm
Width: 1000 mm
Height: 32 mm
Cells Technology: Monocrystalline Q.Antum Solar Half
Number of Half Cells: 120 (6 x 20)
Maximum Power (Pmax): 325 W STC/243.4 W NOCT/292.2 W PTC
Maximum Power Voltage (Vmp): 33.81 V STC/32.17 NOCT
Maximum Power Current (Imp): 9.61 A STC/7.57 A NOCT
Open-Circuit Voltage (VOC): 40.36 V STC/380.6 NOCT
Short-Circuit Current (Isc): 10.1 A STC/8.14 A NOCT
Maximum System Voltage: 1000 V (UL & IEC)
Maximum Reverse Current: 20 A
Module Efficiency: >/=19.3%
Frame Material: Anodized Aluminum Alloy
Frame Color: Black
Backsheet Color: White
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 4 mm2 Solar Cable, (+) >/=43.3in (1100 mm), (-) >/=43.3in (1100 mm)
Connector Type: Staubli MC4, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-6, Tongling TL-Cable01S, JMTHY JM601, IP68 or Friends PV2e, IP67
Fire Type: Class C (IEC)/Type 2 (UL)
Maximum Design Load (Push/Pull): 3600/2667 Pa
Maximum Test Load (Push/Pull): 5400/4000 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C +/-2% STC
Temperature Coefficients of Pmax: -0.35%/deg K
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/deg K
Temperature Coefficients of Isc: 0.04%/deg K
Nominal Operating Cell Temperature: 43 +/-3 deg C
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: 2.09-3.98 x 1.26-2.36 x 0.59-0.71 in (53-101 x 32-60 x 15-18 mm), Protection Class IP67 Rated, with Bypass Diodes
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Standards: UL 1703, VDE Quality Tested, IEC 61215:2016, IEC 61730:2016, Application Class II, DVE, CE, CSA/Cus
Warranty: 12 Years Product, 25 Years Linear Performance
Weight: 18.7 kg
Application: Rooftop Arrays on Residential, Commercial/Industrial Buildings
