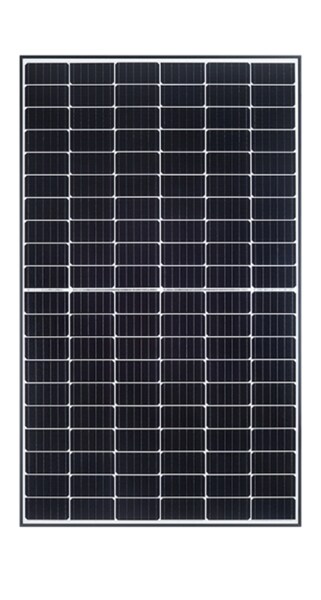

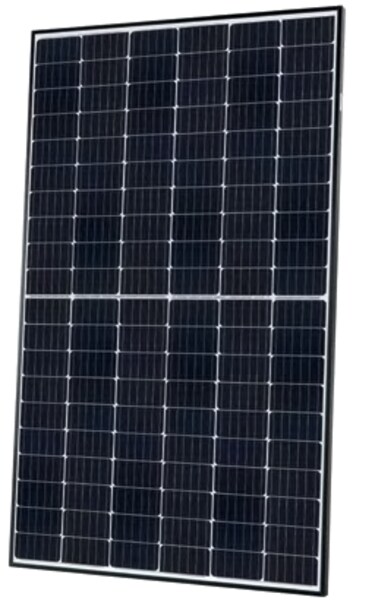

Hanwha Q Cells Q.PEAK DUO-G5-325 325w Mono Solar Panel

The new Q.PEAK DUO-G5 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface. Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days. The new Q.PEAK DUO-G5 is a monocrystalline solar module with power classes up to 330 Wp and an efficiency of 19.9 %. Q.PEAK DUO-G5 solar modules offer higher yields over smaller surface areas. This is made possible by the new generation of Q.ANTUM's world-record-holding cell concept which has now been combined with state-of-the-art circuitry half cells and a six-busbar design. The front surface of the Q.PEAK DUO BLK-G5 is completely black and enhances the visual appearance of even the most exclusive residential system. The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G5 this is not the case, thanks to Anti LID Technology.

Feature Bullets

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.9 %
• Innovative All-Weather Technology - Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High-Performance - Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC
• A Reliable Investment - Inclusive 12-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology

Specifications:

Series/Model: Q.Peak DUO
Length: 66.3 in
Width: 39.4 in
Height: 1.26 in
Cells Technology: Monocrystalline Q.Antum Half
Number of Half Cells: 120 (6 x 20)
Maximum Power (Pmax): 325 W STC/242.8 NOCT/292.2 PTC
Maximum Power Voltage (Vmp): 33.65 V STC/31.94 V NOCT
Maximum Power Current (Imp): 9.66 A STC/7.6 A NOCT
Open-Circuit Voltage (VOC): 40.4 V STC/38.02 NOCT
Short-Circuit Current (Isc): 10.14 A STC/8.17 A NOCT
Maximum System Voltage: 1000 (IEC)/1000 (UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: >/=19.3%
Frame Material: Anodized Aluminum Alloy
Frame Color: Black
Backsheet Color: White
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 4 mm2 Solar Cable, (+) >/=43.3 in (1100 mm), (-) >/=43.3 in (1100 mm)
Connector Type: Multi-Contact MC4, IP68
Fire Type: Class C (IEC)/Type 2 (UL)
Maximum Design Load (Push/Pull): 3600/2667 Pa
Maximum Test Load (Push/Pull): 5400/4000 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C +/-2% STC
Temperature Coefficients of Pmax: -0.37%/deg K
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/deg K
Temperature Coefficients of Isc: 0.04%/deg K
Nominal Operating Cell Temperature: 109 deg F +/-5.4
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: 2.76-3.35 in x 1.97-2.76 in x 0.51-0.83 in, Decentralized, IP67 Rated
Power Output Tolerance: +5 W/−0 W
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Standards: UL 1703, CE-Compliant, IEC 61215:2016, IEC 61730:2016, Class A, DVE, CE, CSA, cUS
Warranty: 12 Years Product, 25 Years Linear Performance
Weight: 41.2 lb
Application: Rooftop Arrays on Industrial/Residential Buildings
