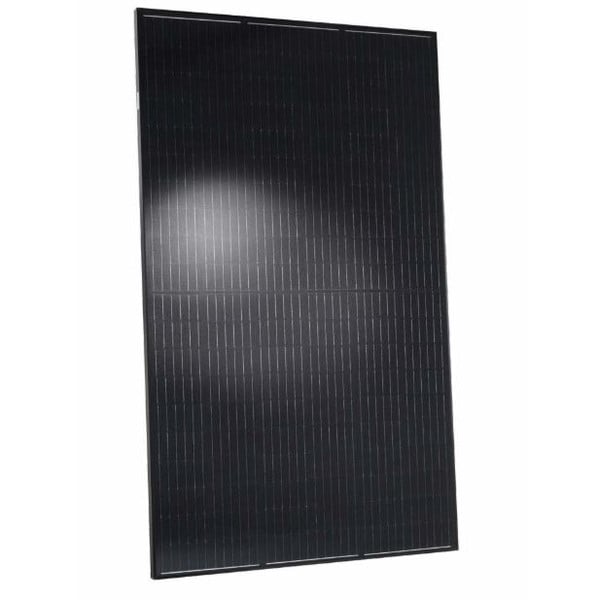

Hanwha Q Cells Q.PEAK DUO-BLK-G5-320 320w Mono Solar Panel

The new Q.PEAK DUO BLK-G5 solar module from Q CELLS impresses with its outstanding visual appearance and particularly high performance on a small surface thanks to the innovative Q.ANTUM DUOTechnology. Q.ANTUM's world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six busbar design, thus achieving outstanding performance under real conditions - both with low-intensity solar radiation as well as on hot, clear summer days.

Feature Bullets

• Q.Antum Technology: Low Levelized Cost of Electricity - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.6 %
• Innovative All-Weather Technology - Optimal yields, whatever the weather with excellent low-light and temperature behavior
• Enduring High-Performance - Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q™
• Extreme Weather Rating - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa)
• A Reliable Investment - Inclusive 12-year product warranty and 25-year linear performance warranty
• State of the Art Module Technology - Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology

Specifications:

Series/Model: Q.Peak DUO
Length: 66.6 in
Width: 39.4 in
Height: 1.26 in
Cells Technology: Monocrystalline Q.Antum Half
Number of Half Cells: 120 (6 x 20)
Maximum Power (Pmax): 320 W STC/239.5 NOCT/292.2 PTC
Maximum Power Voltage (Vmp): 33.8 V STC/32.14 V NOCT
Maximum Power Current (Imp): 9.47 A STC/7.45 A NOCT
Open-Circuit Voltage (VOC): 40.56 V STC/38.24 NOCT
Short-Circuit Current (Isc): 9.94 A STC/8.01 A NOCT
Maximum System Voltage: 1000 (IEC)/1000 (UL)
Maximum Series Fuse Rating: 20 A
Module Efficiency: >/=19%
Frame Material: Anodized Aluminum Alloy
Frame Color: Black
Backsheet Color: Black
Irradiance: 1000 W/m2 STC/800 W/m2 NOCT
Output Cables: 4 mm2 Solar Cable, (+) >/=43.3 in (1100 mm), (-) >/=43.3 in (1100 mm)
Connector Type: Staubli MC4, Hanwha Q CELLS HQC4, Amphenol UTX, Renhe 05-6, Tongling TL-Cable01S, JMTHY JM601, IP68 or Friends PV2e, IP67
Fire Type: Class C (IEC)/Type 2 (UL)
Maximum Design Load (Push/Pull): 3600/2667 Pa
Maximum Test Load (Push/Pull): 5400/4000 Pa
Operating Temperature: -40 to 185 deg F
Cell Temperature: 25 deg C +/-5% STC
Temperature Coefficients of Pmax: -0.36%/deg K
Temperature Coefficients of Open-Circuit Voltage (VOC): -0.27%/deg K
Temperature Coefficients of Isc: 0.04%/deg K
Nominal Operating Cell Temperature: 109 deg F +/-5.4
Air Mass (AM): 1.5 STC/1.5 NOCT
Junction Box: 2.09-3.98 in x 1.26-2.36 in x 0.59-0.71 in, Protection Class IP67 Rated with Bypass Diodes
Power Output Tolerance: +5 W/−0 W
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Standards: UL 61730, CE-Compliant, IEC 61215:2016, IEC 61730:2016,, U.S. Patent No. 9,893,215, DVE, CE, CSA, cUS
Warranty: 12 Years Product, 25 Years Linear Performance
Weight: 41.2 lb
Application: Rooftop Arrays on Residential Buildings
