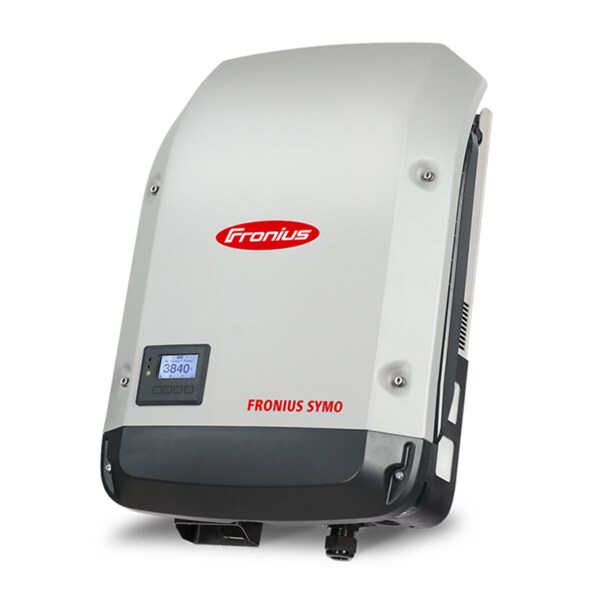

Fronius Symo 12-19.5 kW Three Phase Commercial String Inverter

Boasting power categories from 10 to 24 kW, the transformerless Fronius Symo is the ideal compact three-phase inverter for commercial applications. Its dual maximum power point tracking, high maximum system voltage, wide input voltage range and unrestricted use indoors and out, ensures maximum flexibility in PV system design. As a member of the new SnapINverter family, the Fronius Symo features the SnapINverter mounting system, allowing for secure and convenient installation and field servicing. Industry-leading features now come standard with the Fronius Symo, including: arc fault protection, integrated wireless monitoring, and SunSpec Modbus interfaces for seamless monitoring and datalogging via Fronius' online and mobile platform, Fronius Solar. Web. This makes the Fronius Symo one of the most communicative, efficient and streamlined inverters on the market. The modern design is equipped with the SnapINverter mounting system, allowing for lightweight, secure and convenient installation. Several industry-leading features are available with the Fronius Symo including Wi-Fi®* and SunSpec Modbus interfaces for seamless monitoring and datalogging, field proven Arc Fault Circuit Interruption (AFCI), NEC 2014 compliant, and Fronius' superb online and mobile monitoring platform Fronius Solar. Web.

Feature Bullets

• PC board replacement process
• SnapINverter mounting system
• Wireless monitoring
• Design Flexibility
• SnapINverter technology - The SnapINverter generation of inverters features a simple, standardized mounting system, making installation and maintenance easier than ever. A special feature in the design of the device is that the connection area is separate from the power stage set compartment, with both being installed separately. The remarkably light connection area and all its cabling is fitted to the wall first, followed by the power stage set. The innovative hinged system makes installation and servicing extremely user-friendly. The inverter is simply placed in the wall bracket and then secured. This means that it is not necessary to remove the entire inverter for servicing, just the power stage set. All the cabling remains in place
• Integrated data communication - We are the first inverter manufacturer to offer a data communication package with fully integrated datalogging, WLAN, Ethernet, energy management, web server and a range of interfaces. The inverter is connected to the internet by network cable or WLAN - without additional cabling - and grants you the perfect overview of how the PV system is operating. Connection to third-party components is provided by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). The open interfaces can also be operated in parallel to the Fronius Solar. Web
• SuperFlex Design - The Fronius SuperFlex Design is an ingenious combination of technical performance attributes that make designing your PV system not only extremely simple, but also incredibly flexible. The key performance factors of the SuperFlex Design are two MPP trackers, together with a high system voltage and wide DC input voltage range. Every DC input, and therefore every MPP tracker, is able to accommodate the entire nominal output of the inverter. Regardless of whether the inverter has to cope with different roof orientations, shading of one or two strings, or the use of residual modules: a Fronius inverter featuring integrated SuperFlex Design will satisfy every conceivable operational PV system planning scenario using just a single inverter model
• Smart Grid Ready - Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. They include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses if grid parameters exceed the thresholds. Fronius inverters therefore help to guarantee the yield of a PV system. Furthermore, where feed-in limits are imposed, Fronius inverters can provide dynamic feed-in control with self-consumption taken into account. Just connect the meter and set the feed-in limit
• Arc Fault Circuit Interruption Integrated - The Fronius Arc Fault Circuit Interruption (AFCI) makes each inverter NEC 2011 compliant and maintains some of the most civilized, integrated technology available today. Ensuring the utmost safety, AFCI shuts down the inverter in the event of an arc fault
• Active Cooling - Active cooling technology relies on one or more fans, which not only avoid hot spots, but also regulate the air circulation inside the inverter, thus keeping the temperature of the power electronics low. This has a positive effect on the service life of the devices, optimizes yields and reduces costs. At Fronius, active cooling is supplied as standard in all devices
• USB (A socket) - Datalogging and inverter update possible via USB, 2x RS422 (RJ45 socket) - Fronius Solar Net, interface protocol
• Admissible conductor size DC - AWG 14 - AWG 6 copper direct, AWG 6 aluminum direct, AWG 4 - AWG 2 copper or aluminum with input combiner
• Admissible conductor size AC - AWG 14 - AWG 6

Specifications:

Width: 20.1 in
Height: 28.5 in
Depth: 8.9 in
Recommended PV Power (kWp): 12-19.5 kW
Maximum Usable Input Current (MPPT 1/MPPT 2): 33/25 A
Maximum Usable Input Current (MPPT 1+MPPT 2): 51 A
Maximum Array Short-Circuit Current (1.5 lmax) (MPPT1/MPPT2): 49.5 A/37.5 A
Nominal Input Voltage: 685 V at 480 V
Operating Voltage: 200-1000 V
MPP Voltage Range: 350-800 V
Maximum Input Voltage: 1000 V
Number of MPPT: 2
Maximum Output Power: 14995 VA at 480 V
Nominal Operating Frequency: 60 Hz
Total Harmonic Distortion (THD): <1.25%
Power Factor Range: 0-1 Ind/Cap
Maximum Continues Output Current: 18 A at 480 V
OCPD/AC Breaker Size: 25 A at 480 V
Maximum Efficiency: 98%
CEC Efficiency: 0.97
Enclosure Rating: NEMA 4X
Night Time Consumption: <1 W
Inverter Topology: Transformerless
Cooling: Variable Speed Fan
Installation: Indoor & Outdoor
Operating Temperature: -40 to 140 deg F
Humidity: 0-100% (Non-Condensing)
DC Connection Terminals: 6x DC+ & 6x DC- Screw Terminals for Copper (Solid/Stranded/Fine Stranded) or Aluminum (Solid/Stranded)
AC Connection Terminals: Screw Terminals 14-6 AWG
DC Reverse Polarity Protection: Yes
AFCI: Yes
Ground Fault Protection with Isolation Monitor Interrupter: Yes
DC Disconnect: Yes
Interfaces: USB (A Socket), 2x RS422 (RJ45 Socket)
Grid Connection: 208 V
Standards: UL 1741-2010, UL1998 (For Functions: AFCI & Isolation Monitoring), IEEE 1547-2003, IEEE 1547.1-2008, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC Article 690, C22. 2 No. 107.1-01 ( September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013, UL 1741-2015, UL1998 (For Functions: AFCI, RCMU & Isolation Monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2014 Article 690, C22. 2 No. 107.1-01 (September 2001), UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
Warranty: 10 Years
Weight: 78.3 lb
