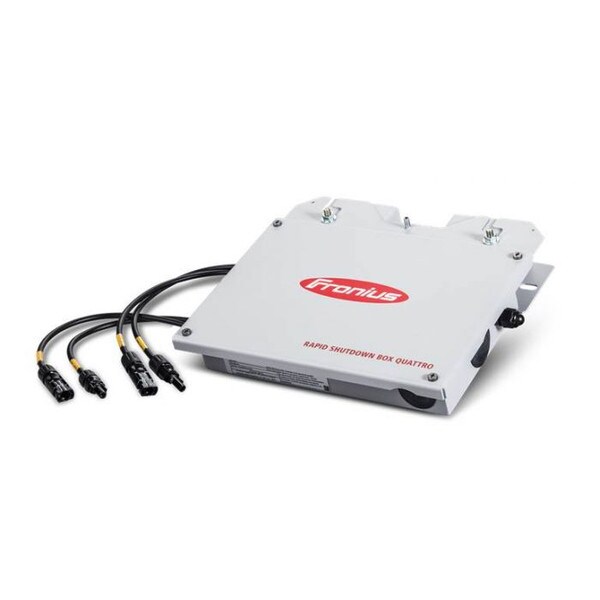

Fronius Rapid Shutdown Box-Quattro (SKU Part Number 4,240,154)

The Fronius Rapid Shutdown Box (RSB) provides a convenient solution for NEC 2014 (690.12) compliance, while enhancing overall rooftop and firefighter safety. Low-profile design, a small foot print installer-friendly mounting and wiring, make the Fronius Rapid Shutdown Box the ultimate solution for all Fronius SnapINverters* in systems up to 600 V. Directly connected to the inverter through the same conduit as the DC homeruns and powered by the array, the Fronius solution minimizes the number components and eliminates the need for an external power supply and control button. The low-profile design allows for installation underneath the modules, ensuring a clean system look. Thanks to the NEMA 4X rating, the box is built for sever outdoor conditions. MC4 connectors, spring loaded terminals and generous wiring space make wiring easy. Rapid Shutdown is triggered when AC is not present at the inverter, rapidly discharging the DC lines to the inverter. An optional method is to install an emergency stop button to open the signal loop.

Specifications:

Maximum Voltage: 600 VDC
Start Voltage: 80 VDC
Maximum Input Current: 25 A
Power Supply: DC (From the PV Array)
Self-Consumption During Operation: 2 W
Input Circuits- MC-4: 2 (4 if Used with MC-4 Y Connectors)
Maximum Number of Strings: 4
Output circuits-Spring Clips: 2
Maximum DC Homerun Wire Size: 8 AWG
Maximum Communication Wire Size: 14 AWG
Number of Conduit Ports: 2
Conduit Size: 3/4 & 1 in
Permissible Operating Temperature: -40 to 149 deg F
Humidity: 0-100% (Non-Condensing)
Maximum Installation Elevation: 13123 ft
Enclosure Rating: Type 4X
Compatible Inverters: Fronius Galvo, Fronius Primo, Fronius Symo
For Use With Amphenol H4/Other Connectors: Remove MC-4 Connectors & Replace with UL Listed Connectors
Standards: UL1741, LTR AE-004-2015, FCC 15 Class B
Dimensions: 13.8 in x 11.5 in x 2.8 in
