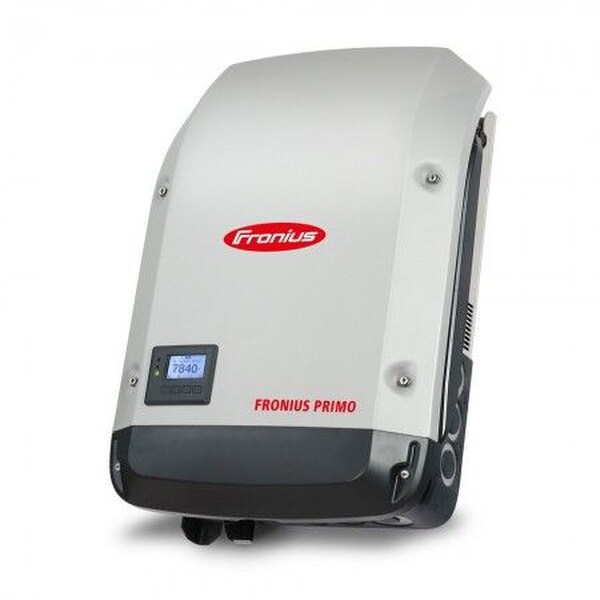

Fronius Primo Lite 8.2kW Solar Inverter - Single Phase - 2 MPPT - 208/240VAC (SKU Part Number 4,210,060,801)

With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo Lite is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system, which allows for lightweight, secure, and convenient installation. The Fronius Primo Lite has several integrated features that set it apart from competitors including dual power point trackers, high system voltage, and a wide input voltage range.

Feature Bullets

• PC board replacement concept

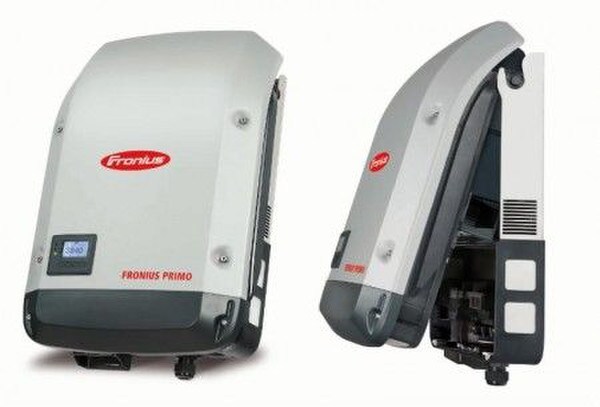

• SnapInverter mounting system
• Smart grid ready
• Design Flexibility
• Admissible conductor size DC - AWG 14 - AWG 6 copper direct, AWG 6 aluminum direct (AWG 10 copper or AWG 8 aluminum for overcurrent protective devices up to 60 A, from 61 to 100 A minimum AWG 8 for copper or AWG 6 aluminum has to be used), AWG 4 - AWG 2 copper or aluminum with optional input combiner
• Admissible conductor size AC - AWG 10- AWG 2 copper (solid/stranded/fine stranded) (AWG 10 copper or AWG 8 aluminum for overcurrent protective devices up to 60 A, from 61 to 100 A minimum AWG 6 aluminum has to be used), AWG 6-AWG 2 copper (solid/stranded) Multi Contact Wiring able with AWG 12

Specifications:

Dimensions: 16.9 in Width x 24.7 in Height x 8.1 in Depth
Recommended PV Power (kWp): 6.6-12.7 kW - (Input Data)
Maximum Usable Input Current (MPPT 1/MPPT 2): 18/18 A - (Input Data)
Maximum Usable Input Current (MPPT 1+MPPT 2): 36 A - (Input Data)
Maximum Array Short-Circuit Current (1.5 lmax) (MPPT1/MPPT2): 27/27 A - (Input Data)
Nominal Input Voltage: 420 V - (Input Data)
Operating Voltage: 80-600 - (Input Data)
DC Startup Voltage: 80 V - (Input Data)
MPP Voltage Range: 270-480 - (Input Data)
Maximum Input Voltage: 600 V (1000 V Optional) - (Input Data)
Number of MPPT: 2 - (Input Data)
Maximum Output Power: 7900 VA at 208 V/8200 VA at 240 V - (Output Data)
Output Configuration: 208/240 V - (Output Data)
Frequency Range (Adjustable): 45-55 Hz/50-66-(Output Data)
Operating Frequency Range Default for CAL Setups: 58.5-60.5 Hz - (Output Data)
Operating Frequency Range Default for HI Setups: 57-63 Hz - (Output Data)
Nominal Operating Frequency: 60 Hz - (Output Data)
Total Harmonic Distortion (THD): <5% - (Output Data)
Power Factor Range: 0.85 - 1 Ind./Cap. - (Output Data)
Maximum Continuous Output Current: 38 A at 208 V, 34.2 A at 240 V - (Output Data)
OCPD/AC Breaker Size: 50 A at 208 V, 45 A at 240 V - (Output Data)
Maximum Efficiency: 97% - (Output Data)
CEC Efficiency: 96.5% - (Output Data)
Enclosure Rating: NEMA 4X
Night Time Consumption: <1 W
Inverter Topology: Transformerless
Cooling: Variable Speed Fan
Installation: Indoor & Outdoor Installation
Operating Temperature: -40 to 131 deg F
Humidity: 0-100%
Elevation: 4000 m
DC Connection Terminals: 4x DC+ & 4x DC- Screw Terminals For Copper (Solid/Stranded/Fine Stranded) or Aluminum (Solid/Stranded)
AC Connection Terminals: Screw Terminals 12-6 AWG
DC Reverse Polarity Protection: Yes
Anti Islanding: Internal, in accordance with UL 1741-2016-09, IEEE 1547-2003 & NEC 2017
Over Temperature Protection: Output Power Derating/Active Cooling
AFCI: Yes
Rapid Shutdown Complaint: Yes
Ground Fault Protection with Isolation Monitor Interrupter: Yes
DC Disconnect: Yes
Interfaces: USB (A socket) - Inverter Update Possible via USB, 2x RS422 (RJ45 socket) - Fronius Solar Net, Interface Protocol
Standards: UL 1741-2010 Second Edition (Incl. UL1741 Supplement SA 2016-09 for California Rule 21 & Hawaiian Electric Code Rule 14H), UL1998 (For Functions: AFCI, RCMU & Isolation Monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 - 2013
Warranty: 10 Years/Extensions Up-15 & 20 Years Available
Weight: 47.29 lb
