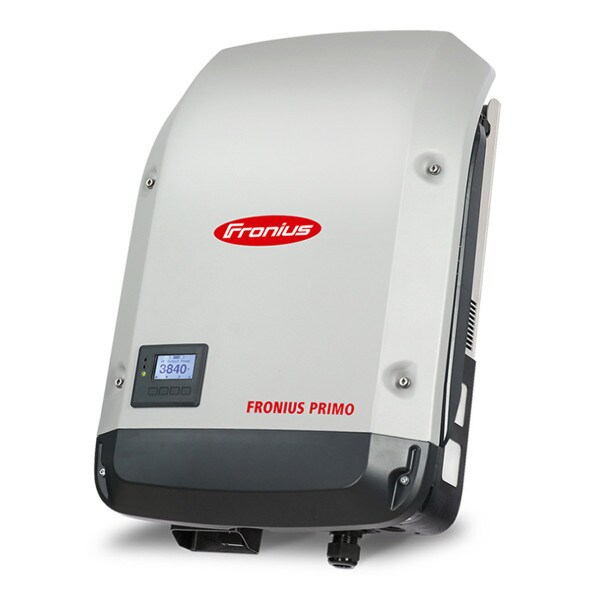

Fronius FRO-P Series 208-240 V 5 kW Variable Speed Fan Single-Phase Primo Lite String Inverter

(0)No Reviews yet
$1,407.99
SKU: FRO-P-5.0-1-208-240-L

The Fronius Primo, with power classes from 3.8 to 15.0 kW, is the ideal residential solar inverter for your unique solar system design. With dual MPPT and a wide voltage window, the Fronius Primo offers design flexibility. The sleek inverter design features the innovative SnapINverter hinge mounting system and Wi-Fi enabled for easy commissioning and monitoring. Many other features come standard in the Fronius Primo, including industry-leading Arc Fault Circuit Interruption, and free lifetime monitoring through Fronius Solar.web. The SnapINverter line is NEC 2014 compliant with the easy implementation of the Fronius Rapid Shutdown Box and has the technology for future code and consumer demands while offering field serviceability for the most sustainable option.


Feature Bullets

  • Compatibility - PC board replacement process. Smart grid ready
  • Safety - Arc Fault Circuit Interruption. SuperFlex Design
  • User friendly - Wi-FI interface
  • SuperFlex design
  • SnapINverter mounting system


Specifications:

Type: Single-Phase
Series: FRO-P
Overall Length: 24.7 in
Overall Width: 16.9 in
Overall Depth: 9.1 in
Input Voltage: 420 V
Output Voltage: 208-240 V
Power Rating: 5 kW
Input Current: 36 A
Amperage Rating: 24/20.8 A
Efficiency: 96.9/95.5 %
Frequency Rating: 45-55/50-66 HZ
Cooling Type: Variable Speed Fan
Power Factor: 0.85-1
Enclosure Rating/IP Rating: NEMA 4X
Mounting Type: Snapinverter Hinge
Connection Type: Screw Terminal
Temperature Rating: -40 to 131 deg F
